Description

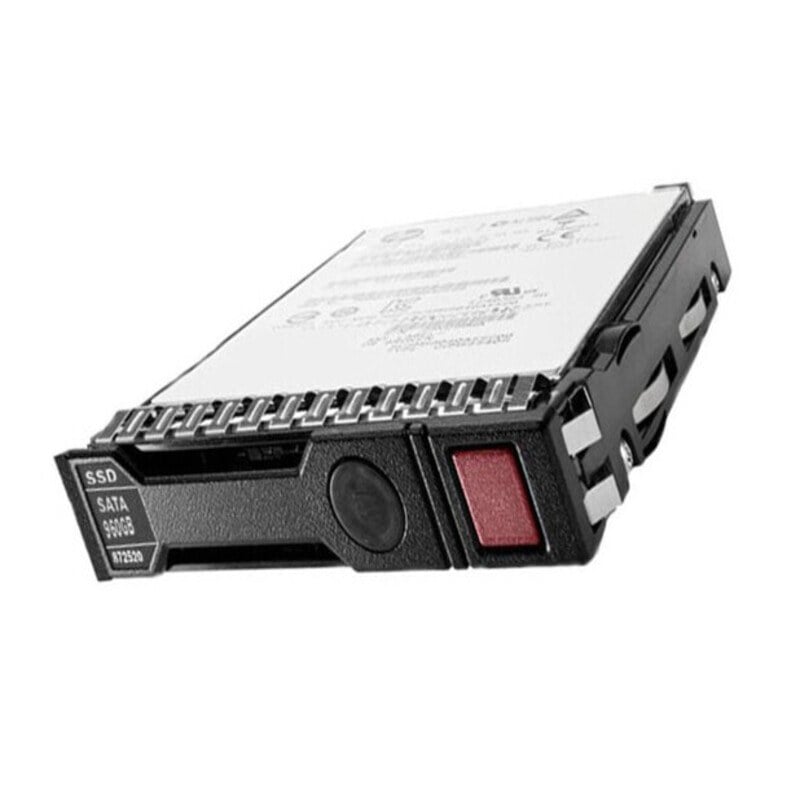

Product Overview of the HPE 872348-B21 960GB Hot Swap Solid State Drive
In the realm of server storage solutions, the HPE 872348-B21 960 Gigabytes (GB) Serial Advanced Technology Attachment (SATA) 6 Gigabits Per Second (Gbps) 2.5-inch Multi-Level Cell (MLC) External Hot Swap Smart Carrier High Endurance Technology Solid State Drive (SSD) stands out as a reliable and high-performance option. This 6GBPS SSD is designed to meet the demanding storage needs of modern servers.
Key Features of the HPE 872348-B21 SSD
SATA 6Gb/s Interface
The HPE 872348-B21 SSD uses a Serial ATA (SATA) 6 Gigabits per second (GBPS) interface, which allows for faster data transfer rates between the drive and the server. The SATA 6Gb/s interface has a maximum theoretical speed of 6 Gb/s, which is twice the speed of the previous generation SATA 3Gb/s interface. This faster interface allows for quicker data access and retrieval, which is particularly useful in server environments where data access speed is critical.
Capacity
The HPE 872348-B21 SSD offers a substantial storage capacity of 960 gigabytes, making it suitable for storing large volumes of data and applications in server environments.
Multi-Level Cell (MLC) Technology
Utilizing Multi-Level Cell (MLC) technology, the SSD optimizes storage efficiency by storing multiple bits of data per cell, thereby maximizing storage capacity while maintaining performance.
Small Form Factor (SFF)
The HPE 872348-B21 SSD has a 2.5-inch Small Form Factor (SFF) design, which means that it is smaller and more compact than traditional 3.5-inch hard drives. This smaller form factor allows for more efficient use of space within the server, which is especially important in large data centers where space is at a premium. Additionally, the smaller form factor allows for more drives to be installed in the server, increasing the server’s overall storage capacity.
Hot Swap Smart Carrier
The HPE 872348-B21 SSD comes with a Hot Swap Smart Carrier, which is a special type of drive carrier that allows the drive to be hot-swapped while the server is still running. Hot-swapping means that the drive can be removed and replaced without shutting down the server. This is particularly useful in server environments where downtime must be minimized. The Hot Swap Smart Carrier also provides additional protection for the drive, helping to prevent data loss due to accidental removal or vibration.
High Endurance Technology
The HPE 872348-B21 SSD comes with High Endurance Technology, which is a set of features that improve the drive’s durability and lifespan. These features include power loss protection, which helps prevent data loss in the event of a power outage and wear leveling, which distributes write operations evenly across the drive to prevent individual cells from wearing out prematurely. The drive also includes error correction technology, which helps to prevent data corruption and improves overall data integrity.
Solid State Drive (SSD)
The HPE 872348-B21 SSD is a solid-state drive (SSD), which means that it uses flash memory to store data instead of traditional spinning disks found in hard disk drives (HDDs). SSDs are generally faster and more reliable than HDDs, making them an ideal choice for server environments where speed and reliability are critical. Additionally, SSDs consume less power than HDDs, which can lead to lower overall energy costs for the data center.
Server Compatibility
The HPE 872348-B21 SSD is designed to be compatible with a wide range of server systems, including HPE ProLiant Gen9 and Gen10 servers, HPE Synergy Gen10 Compute Modules, and HPE Apollo Gen10 System servers. The drive is also compatible with a variety of operating systems, including Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and VMware ESXi.
Applications of the HPE 872348-B21 SATA SSD
- Data Centers: The SSD is ideal for use in data centers and server farms where high-performance storage is essential for managing large volumes of data and applications.
- Virtualization: Virtualized environments benefit from the fast read and write speeds of SSDs, improving the performance of virtual machines and applications.
- Database Servers: Database servers require fast storage solutions to handle intensive read and write operations. The HPE 872348-B21 SSD enhances database performance and responsiveness.
- High-Performance Computing (HPC): HPC clusters and supercomputers rely on high-speed storage to process complex computational tasks efficiently. The SSD accelerates data access and computation in HPC environments.
- Cloud Computing: Cloud service providers can deploy the HPE 872348-B21 SSD in their infrastructure to deliver high-performance storage services to customers, ensuring optimal performance and reliability.
Benefits of Solid State Drive (SSD) Technology
SSDs offer several advantages over traditional hard disk drives (HDDs), making them the preferred choice for many server applications:
- Faster Performance: SSDs utilize flash memory technology, which enables faster read and write speeds compared to HDDs. This results in quicker data access and improved overall system performance, especially in applications that require high throughput and low latency.
- Enhanced Reliability: SSDs have no moving parts, unlike HDDs, which are susceptible to mechanical failures. This inherent reliability makes SSDs more durable and less prone to physical damage, ensuring data integrity and system stability in demanding server environments.
- Lower Power Consumption: SSDs consume less power than HDDs, leading to reduced energy costs and lower heat generation within server systems. This not only contributes to environmental sustainability but also helps prolong the lifespan of other system components by minimizing heat-related stress.
- Improved Scalability: SSDs offer greater scalability in terms of both capacity and performance compared to HDDs. With advancements in NAND flash technology, SSD manufacturers can pack more storage capacity into smaller form factors while maintaining high levels of performance and endurance, making SSDs ideal for scalable server deployments.
General Information of the HPE 872348-B21 960GB Solid State Drive
- Manufacturer: HPE
- Part Number or SKU# 872348-B21
- Product Type: Solid State Drive
Technical Information
- Capacity: 960GB
- Form Factor: 2.5-inch SFF
- Interface: SATA 6Gbps
- Flash Type: Multi-Level Cell (MLC)
- Plug Type: Hot Plug
- Workload Type: Mixed Use (MU)
- Carrier Type: Smart Carrier (SC)
- Features: Digitally Signed Firmware (DS)
- Bundled with: HPE SmartDrive Carrier
- Height: 7 mm
Performance
- Drive Transfer Rate: 6 Gb/sec (external)
- 30 Days Write (TB): 6727
- Endurance DWPD: 3.5
- MAX Seq Reads Throughput (MiB/s): 510
- Max Seq Writes Throughput (MiB/s): 475
- Random Read Avg. Latency uSec (4KiB,Q1): 110
- Random Write Avg. Latency uSec (4KiB,Q1): 40
- Random Read IOPS (4KiB,Q=16): 62000
- Random Writes IOPS (4KiB,Q=16): 26500
- MAX Random Read IOPS (4KiB): 69000@Q32
- MAX Random Write IOPS (4KiB): 26500@Q4
Expansion & Connectivity
- 1 x SATA 6 Gb/s
- Compatible Bay: 2.5-inch SFF
Power Consumption
- Idle Time: 1.23 Watts
- Random Read: 2.66 Watts
- Random Write: 2.66 Watts
- Sequential Read: 2.69 Watts
- Sequential Write: 2.84 Watts
- Random R/W: 2.66 Watts
- MAX: 3.00 Watts
Compatibility
- HPE ProLiant BL Series: BL460c Gen10 (2.5 inch), BL660c Gen9 (2.5 inch)
- HPE ProLiant DL Series: DL120 Gen9 Entry (2.5 inch), DL160 Gen9 Performance (2.5 inch), DL180 Gen9 Storage (2.5 inch), DL20 Gen9 (2.5 inch), DL20 Gen9 Base (2.5 inch), DL20 Gen9 Entry (2.5 inch), DL20 Gen9 Performance (2.5 inch), DL20 Gen9 Solution (2.5 inch), DL20 Gen9 Special Server (2.5 inch), DL360 Gen10 (2.5 inch), DL360 Gen10 Base (2.5 inch), DL360 Gen10 Entry (2.5 inch), DL360 Gen10 High Performance (2.5 inch), DL360 Gen10 Low (2.5 inch), DL360 Gen10 Performance (2.5 inch), DL360 Gen10 Solution (2.5 inch), DL360 Gen9 (2.5 inch), DL360 Gen9 CMS (2.5 inch), DL360 Gen9 Performance (2.5 inch), DL360 Gen9 Special Server (2.5 inch), DL380 Gen9 High Performance (2.5 inch), DL380 Gen9 Scale-up SAP HANA Tailored Datacenter Integration Compute Block (2.5 inch), DL380 Gen9 Special (2.5 inch), DL388 Gen9 (2.5 inch), DL388 Gen9 Base (2.5 inch), DL560 Gen10 (2.5 inch), DL560 Gen10 Base (2.5 inch), DL560 Gen10 Entry (2.5 inch), DL560 Gen10 Performance (2.5 inch), DL560 Gen9 (2.5 inch), DL560 Gen9 Base (2.5 inch), DL560 Gen9 Entry (2.5 inch), DL560 Gen9 Performance (2.5 inch), DL580 Gen10 (2.5 inch), DL580 Gen10 Base (2.5 inch), DL580 Gen10 Entry (2.5 inch), DL580 Gen10 Performance (2.5 inch), DL580 Gen9 (2.5 inch), DL580 Gen9 Base (2.5 inch), DL580 Gen9 Database (2.5 inch), DL580 Gen9 High Performance (2.5 inch), DL580 Gen9 SAP HANA Scale-out Base Configuration (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch)
- HPE ProLiant ML Series: ML110 Gen9 (2.5 inch), ML110 Gen9 Base (2.5 inch), ML110 Gen9 Entry (2.5 inch), ML150 Gen9 Base (2.5 inch), ML150 Gen9 Performance (2.5 inch), ML30 Gen9 (2.5 inch), ML30 Gen9 Base (2.5 inch), ML30 Gen9 Performance (2.5 inch), ML350 Gen10 (2.5 inch), ML350 Gen10 Base (2.5 inch), ML350 Gen10 Entry (2.5 inch), ML350 Gen10 Performance (2.5 inch), ML350 Gen10 Solution (2.5 inch), ML350 Gen10 Sub-Entry (2.5 inch)
- HPE ProLiant XL Series: XL170r Gen10 (2.5 inch), XL270d Gen9 (2.5 inch)
- HPE StoreEasy 1850
- HPE Synergy 660 Gen10 Base Compute Module (2.5 inches), 660 Gen10 Compute Module (2.5 inches), 660 Gen10 Entry Compute Module (2.5 inches), 660 Gen10 Performance Compute Module (2.5 inches), 660 Gen10 Premium Compute Module (2.5 inches)
In summary, the HPE 872348-B21 960 Gigabytes (GB) Serial Advanced Technology Attachment (SATA) 6 Gigabits Per Second (Gbps) 2.5-inch Multi-Level Cell (MLC) External Hot Swap Smart Carrier High Endurance Technology Solid State Drive (SSD) represents a versatile and high-performance storage solution for modern server environments. With its robust features, including SATA interface, MLC technology, external hot-swap smart carrier design, and high endurance technology, this SSD meets the demanding storage requirements of enterprise-level applications. Whether deployed in data centers, enterprise servers, cloud computing platforms, virtualized environments, or big data analytics systems, the HPE 872348-B21 SSD delivers exceptional performance, reliability, and scalability, making it a valuable asset for businesses seeking optimal storage solutions.
