Description
High Capacity and High Performance Storage Solution

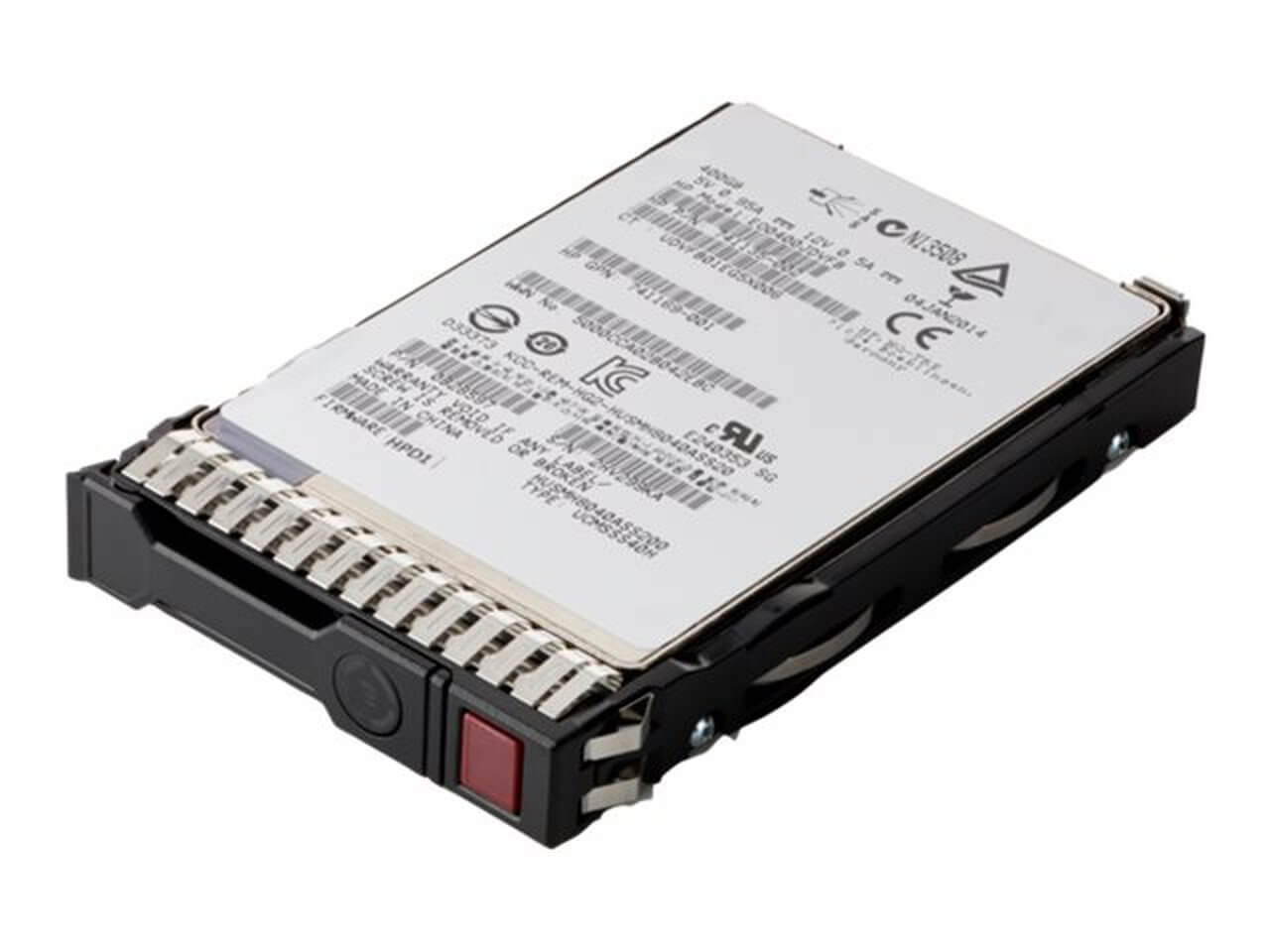

The HPE 872386-K21 is a high-performance solid-state drive (SSD) storage solution with a capacity of 3.2TB. It uses the SAS interface with a 12Gbps transfer rate, and utilizes Multi-Level Cell (MLC) NAND flash technology. It is designed for mixed-use applications that require both high capacity and high performance. The form factor is Small Form Factor (SFF), making it suitable for use in small server or storage systems.
The Ultimate Solution for Large Scale Data Storage Needs
872386-K21 HPE 3.2TB SAS 12GBPS SFF Multi-Level Cell (MLC) Mixed Use SSD is a high-performance, high-capacity storage solution designed for large scale data storage needs.
- “872386-K21” is the product code or identifier.
- “HPE” is the brand name (Hewlett Packard Enterprise).
- “3.2TB” is the storage capacity of the drive.
- “SAS” refers to the interface used to connect the drive to the system (Serial Attached SCSI).
- “12GBPS” is the data transfer speed of the SAS interface.
- “SFF” refers to the form factor or physical size of the drive, which is Small Form Factor.
- “Multi-Level Cell (MLC)” indicates the type of flash memory used in the drive. MLC typically offers higher storage densities and lower costs compared to other types of flash memory like Single-Level Cell (SLC).
- “Mixed Use” means that the drive is optimized for both read-intensive and write-intensive workloads, making it a suitable option for a wide range of applications.
- “The Ultimate Solution for Large Scale Data Storage Needs” indicates that this drive is a suitable option for high-capacity storage requirements.
Maintenance and Troubleshooting
The HPE 872386-K21 is a 3.2TB solid-state drive with a SAS interface and a data transfer rate of 12 Gbps, designed for small form factor (SFF) systems. It uses multi-level cell (MLC) technology and is intended for mixed use applications.
Maintenance:
- Regularly check the drive’s firmware and update it to the latest version.
- Monitor drive health and performance using tools such as the system’s BIOS or HPE’s Smart Storage Administrator.
- Ensure that the drive’s temperature stays within acceptable limits by providing proper ventilation.
Troubleshooting:
- If experiencing slow performance, check the system’s configuration and make sure that the drive is set up correctly.
- If experiencing data loss or corruption, try running disk diagnostic tools.
- If the drive has failed, replace it with a new one and restore data from backups.
Note: Before performing any maintenance or troubleshooting, it is recommended to back up all important data and follow the manufacturer’s instructions and guidelines.
Product Details
- MPN: 872386-K21
- Manufacturer: Hewlett Packard Enterprise (HPE)
- Type: Hot-Swap Solid State Drive (SSD)
- SSD Type: SAS 12GBPS
- Spare Part Number: 872511-001
- Model Number: MO003200JWFWR
- Assembly Number: 872373-004
- SKU: 872386-K21
Technical Information
- Device Capacity: 3.2TB
- Form Factor: 2.5 Inch SFF
- Plug Type: Hot Plug
- Carrier Type: Smart Carrier (SC)
- Workload Type: Mixed-Use
- NAND Flash Memory Type: Multi-Level Cell (MLC)
- Features: Digitally Signed Firmware (DS)
Drive Performance
- Life Time Writes: 17520
- Endurance DWPD (Drive Writes Per Day): 3
- Drive Transfer Rate: 1.2 GBPS (External)
- MAX Seq. Reads Throughput (MiB/s): 1075
- MAX Seq. Writes Throughput (MiB/s): 1025
- Random Read Average Latency uSec (4KiB, Q1): 120
- Random Write Average Latency uSec (4KiB, Q1): 50
- Random Read IOPS (4KiB, Q=16): 125000
- Random Write IOPS (4KiB, Q=16): 93000
- MAX Random Read IOPS (4KiB): 185000@Q32
- MAX Random Write IOPS (4KiB): 93000@Q4
- 4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 120000
- 4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-2: 107500
Dimension and Weight
- Height: 0.63 Inch
- Width: 3.10 Inch
- Depth: 5.45 Inch
- Weight: 1.50 Lbs
Power Consumption
- Power Idle Time: 4.22 Watt
- Power Random Read: 4.74 Watt
- Power Random Write: 4.74 Watt
- Power Sequential Read: 7.75 Watt
- Power Sequential Write: 9.50 Watt
- Power Random R/W: 4.74 Watt
- Power Max: 10.00 Watt
Compatibility
- HPE ProLiant DL Series: DL160 Gen9 (3.5 Inch), DL160 Gen9 Base (3.5 Inch), DL160 Gen9 Entry (3.5 Inch), DL160 Gen9 Performance (3.5 Inch), DL20 Gen9 Solution (2.5 Inch), DL360 Gen10 (2.5 Inch), DL360 Gen10 Base (2.5 Inch), DL360 Gen10 Entry (2.5 Inch), DL360 Gen10 High Performance (2.5 Inch), DL360 Gen10 Low (2.5 Inch), DL360 Gen10 Performance (2.5 Inch), DL360 Gen10 Solution (2.5 Inch), DL385 Gen10 (2.5 Inch), DL385 Gen10 Base (2.5 Inch), DL385 Gen10 Entry (2.5 Inch), DL385 Gen10 High-Performance (2.5 Inch), DL385 Gen10 Performance (2.5 Inch), DL385 Gen10 Solution (2.5 Inch), DL560 Gen10 (2.5 Inch), DL560 Gen10 Base (2.5 Inch), DL560 Gen10 Entry (2.5 Inch), DL560 Gen10 Performance (2.5 Inch), DL580 Gen10 (2.5 Inch), DL580 Gen10 Base (2.5 Inch), DL580 Gen10 Entry (2.5 Inch), DL580 Gen10 Performance (2.5 Inch), DL580 Gen9 (3.5 Inch), DL580 Gen9 Base (3.5 Inch), DL580 Gen9 Database (3.5 Inch), DL580 Gen9 High Performance (3.5 Inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (3.5 Inch) Servers
- HPE ProLiant ML Series: ML110 Gen10 Solution (2.5 Inch), ML110 Gen9 (3.5 Inch), ML110 Gen9 Base (3.5 Inch), ML110 Gen9 Entry (3.5 Inch), ML350 Gen10 (2.5 Inch), ML350 Gen10 Base (2.5 Inch), ML350 Gen10 Entry (2.5 Inch), ML350 Gen10 Performance (2.5 Inch), ML350 Gen10 Solution (2.5 Inch), ML350 Gen10 Sub-Entry (2.5 Inch) Servers
- HPE ProLiant XL Series: XL170R Gen9 (3.5 Inch), XL450 Gen10 (2.5 Inch) Servers
