Description
Enterprise Grade Features and Reliability

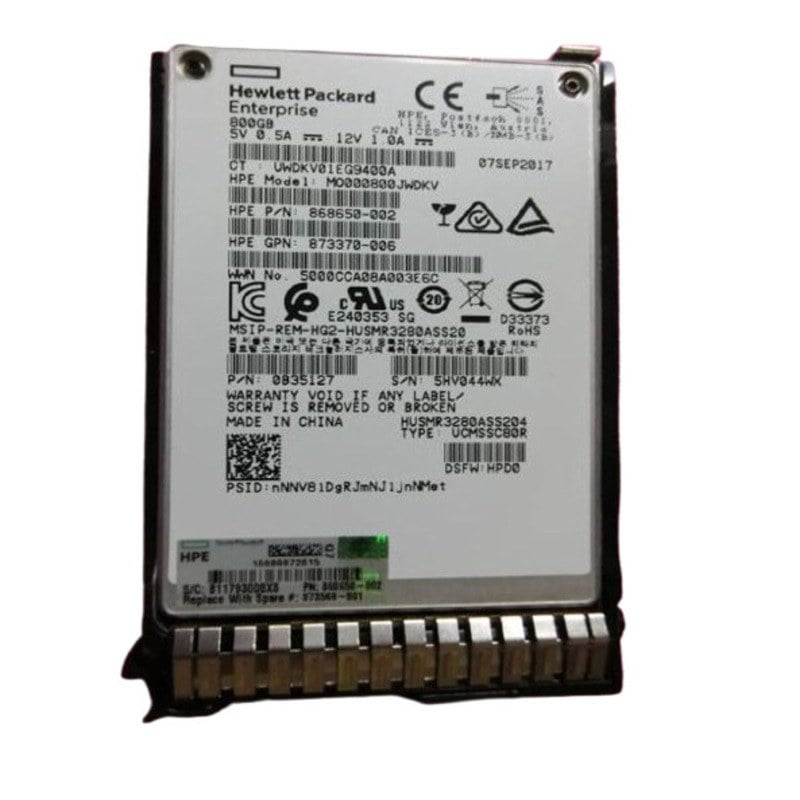

The HPE 873363-X21 is an 800GB SAS-12GBPS Mixed Use Small Form Factor (SFF) 2.5-inch solid state drive (SSD) that offers enterprise-grade features and reliability. The SAS-12GB/s interface provides fast data transfer speeds and improved performance compared to earlier SAS versions. This SSD is designed for mixed use, offering a cost-effective solution for boosting the performance of storage systems, particularly in SFF environments. The use of NAND flash memory, rather than mechanical spinning disks, provides improved reliability, faster access times, and reduced power consumption. With its enterprise-grade features, this SSD is a reliable storage solution for businesses and organizations with demanding storage needs.
Maximize Storage Performance
To maximize the storage performance of the HPE 873363-X21 800GB SAS-12GBPS mixed-use small form factor (SFF) 2.5-inch solid-state drive (SSD), several steps can be taken:
- Use a fast SAS interface: The HPE 873363-X21 features a SAS-12Gbps interface, which can provide faster data transfer speeds compared to older SAS interfaces. To fully utilize the performance capabilities of the drive, it is recommended to use a system with a fast SAS interface.
- Optimize the operating system: The performance of the drive can be improved by optimizing the operating system and its configuration. For example, enabling TRIM support in the operating system can help to maintain the performance of the drive over time.
- Use a modern file system: The use of a modern file system, such as NTFS or Ext4, can help to improve the performance of the drive by enabling features such as journaling and file compression.
- Use software that supports the drive’s capabilities: Some software, such as databases and virtualization platforms, can be configured to take advantage of the capabilities of the drive. For example, enabling write-back caching in a virtualization platform can help to improve the performance of the drive.
- Ensure proper cooling: Keeping the drive cool can help to ensure reliable operation and maximize its performance. It is recommended to use proper cooling measures, such as providing adequate ventilation or using drive coolers, to keep the drive within its operating temperature range.
Data Storage Technology
The HPE 873363-X21 is a 800GB SAS-12GBPS solid-state drive (SSD) designed for mixed use cases in small form factor (SFF) 2.5 inch systems. It utilizes NAND flash memory technology for data storage. NAND flash is a type of non-volatile memory (NVM) that retains stored data even when the power is turned off. Unlike traditional hard disk drives (HDDs), SSDs have no moving parts, which results in faster data access times and improved reliability.
In addition to NAND flash, the HPE 873363-X21 SSD also uses a SAS interface to connect to the host system. SAS, or Serial Attached SCSI, is a high-speed data transfer standard designed for use in data centers and enterprise storage systems. SAS offers improved performance, reliability, and scalability compared to SATA, the more common interface used in consumer-level systems.
In terms of data storage technology, the HPE 873363-X21 SSD uses multi-level cell (MLC) NAND flash memory. MLC NAND stores multiple bits of data per cell, which allows for higher density and larger capacity compared to single-level cell (SLC) NAND. However, MLC NAND also has lower write endurance and slower write speeds compared to SLC NAND. The HPE 873363-X21 SSD is designed for mixed use cases, which balance performance and endurance to provide an optimal storage solution for a wide range of applications.
Product Details
- Manufacturer: Hewlett Packard Enterprise (HPE)
- MPN: 873363-X21
- Spare Part Number: 873569-001
- SKU: 873363-X21
- Model Number: MO000800JWDKV
- Assembly Number: 868650-002
- HPE GPN: 873370-006
Technical Features
- Type: Hot-Swap Solid State Drive
- Capacity: 800 GB
- SSD Type: SAS 12GBPS
- Form Factor: 2.5 Inch SFF
- NAND Flash Memory Type: Multi-level cell (MLC)
- Plug Type: Hot Plug
- Carrier Type: Smart Carrier (SC)
- Workload Type: Mixed Use
- Features: Digitally Signed Firmware
- Bundled With: HPE Smart Drive Carrier
- Height: 15 mm (0.6 Inch)
Drive Performance
- Drive Transfer Rate: 12 GB/sec (External)
- Lifetime Writes (TB): 5
- Endurance DWPD: 3.0
- MAX Seq Reads: 1050
- Max Seq Writes: 1010
- Throughput Random Read Avg. Latency uSec: 105
- Throughput Random Write Avg. Latency uSec: 35
- Random Read IOPS (4KiB, Q=16): 120000
- Random Writes IOPS (4KiB, Q=16): 100000
- MAX Random Read IOPS (4KiB): 170000@Q64
- MAX Random Write IOPS (4KiB): 100000@Q16
Power Consumption
- Power Idle Time: 3.58 Watt
- Power Random Read: 5.99 Watt
- Power Random Write: 5.99 Watt
- Power Sequential Read: 6.47 Watt
- Power Sequential Write: 9.84 Watt
- Power Random R/W: 5.99 Watt
Dimensions & Weight
- Height: 0.63Inch
- Width: 3.10Inch
- Depth: 5.45Inch
- Weight: 1.50 lbs
Compatibility
- HPE ProLiant DL Series: DL180 Gen9 (2.5 Inch), DL180 Gen9 Base (2.5 Inch), DL180 Gen9 Entry (2.5 Inch), DL180 Gen9 Storage (2.5 Inch), DL20 Gen9 (2.5 Inch), DL20 Gen9 Base (2.5 Inch), DL20 Gen9 Entry (2.5 Inch), DL20 Gen9 Performance (2.5 Inch), DL20 Gen9 Solution (2.5 Inch), DL20 Gen9 Special Server (2.5 Inch), DL360 Gen9 (2.5 Inch), DL360 Gen9 Base (2.5 Inch), DL360 Gen9 CMS (2.5 Inch), DL360 Gen9 Entry (2.5 Inch), DL360 Gen9 Performance (2.5 Inch), DL360 Gen9 Special Server (2.5 Inch), DL380 Gen9 (2.5 Inch), DL380 Gen9 Base (2.5 Inch), DL380 Gen9 Entry (2.5 Inch), DL380 Gen9 High Performance (2.5 Inch), DL380 Gen9 Performance (2.5 Inch), DL380 Gen9 Scale-up SAP HANA Tailored Datacenter Integration Compute Block (2.5 Inch), DL380 Gen9 Special (2.5 Inch), DL385 Gen10 (2.5 Inch), DL385 Gen10 Base (2.5 Inch), DL385 Gen10 Entry (2.5 Inch), DL385 Gen10 High-Performance (2.5 Inch), DL385 Gen10 Performance (2.5 Inch), DL385 Gen10 Solution (2.5 Inch), DL580 Gen10 (2.5 Inch), DL580 Gen10 Base (2.5 Inch), DL580 Gen10 Entry (2.5 Inch), DL580 Gen10 Performance (2.5 Inch) Servers
- HPE ProLiant ML Series: ML110 Gen10 Solution (2.5 Inch), ML110 Gen9 (2.5 Inch), ML110 Gen9 Base (2.5 Inch), ML110 Gen9 Entry (2.5 Inch), ML350 Gen10 (2.5 Inch), ML350 Gen10 Base (2.5 Inch), ML350 Gen10 Entry (2.5 Inch), ML350 Gen10 Performance (2.5 Inch), ML350 Gen10 Solution (2.5 Inch), ML350 Gen10 Sub-Entry (2.5 Inch) Servers
- HPE ProLiant XL Series: XL450 Gen10 (2.5 Inch) Server
