Description
Management and Monitoring

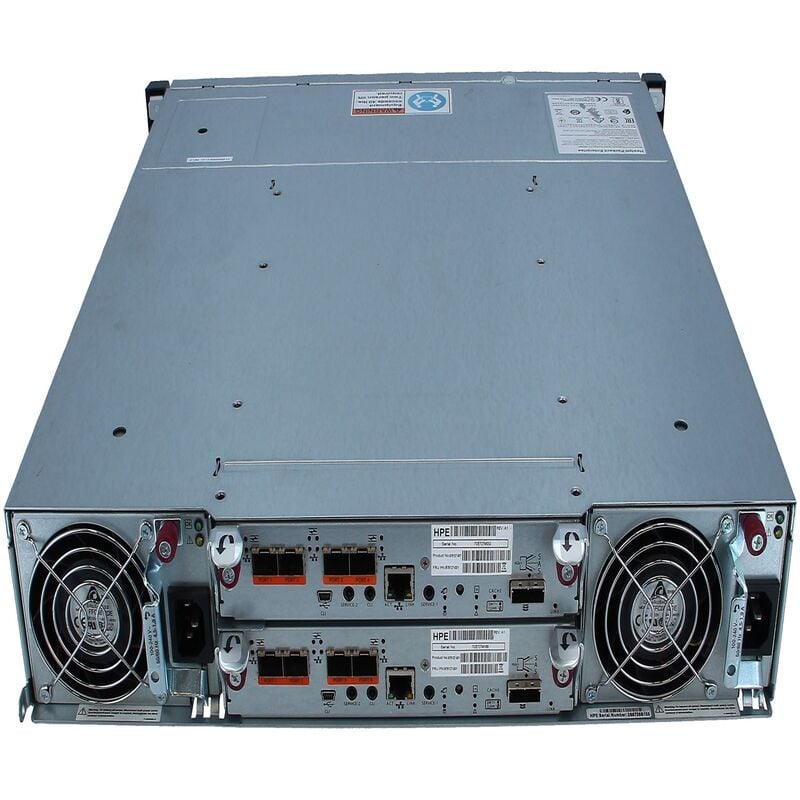

The HPE MSA 2050 SAN Dual Controller SFF Storage (876127-002) supports the following management and monitoring features:
- Web-based User Interface (UI): The MSA 2050 provides a web-based UI for managing and monitoring storage arrays, including provisioning storage, configuring storage systems, monitoring storage utilization and performance, and generating system logs and reports.
- Command Line Interface (CLI): The MSA 2050 supports a command line interface for managing and monitoring storage arrays, which can be accessed via Telnet, SSH, or serial connection.
- HPE Systems Manager: HPE Systems Manager is a comprehensive management software that provides a centralized view of all HPE ProLiant and HPE MSA storage systems in the data center. This software provides advanced reporting, analytics, and orchestration capabilities to help IT administrators manage and monitor their HPE infrastructure.
- SNMP support: The MSA 2050 supports Simple Network Management Protocol (SNMP) for monitoring and managing storage arrays in a network environment.
- HPE Smart Storage Administrator (SSA): HPE SSA is a web-based application that provides a graphical interface for managing and monitoring HPE ProLiant and HPE MSA storage systems. This software provides a comprehensive set of tools for managing and monitoring storage arrays, including reporting and analytics, diagnostic and troubleshooting tools, and firmware management.
Storage Capacity and Scalability
The HPE MSA 2050 SAN Dual Controller SFF Storage (876127-002) provides high-performance storage capacity and scalability for small and medium-sized businesses. The following information provides details on its storage capacity and scalability:
Storage Capacity:
- The MSA 2050 supports 2.5-inch Small Form Factor (SFF) SAS or SATA hard disk drives (HDD) and solid-state drives (SSD)
- The maximum raw storage capacity for the MSA 2050 is 480TB using 240 x 2TB SFF HDDs or SSDs.
Scalability:
- The MSA 2050 supports a mix of SAS and SATA HDDs and SSDs within the same storage enclosure.
- The system supports up to 240 drives, with a maximum of 120 drives per controller.
- The MSA 2050 supports up to four enclosures for a maximum raw capacity of 1920TB.
- Expansion enclosures can be added to the system as needed to meet growing storage requirements.
Note: This information is accurate as of 2021 and subject to change. I recommend checking with HPE for the latest specifications and supported devices.
Operating Systems Suppor
The HPE MSA 2050 SAN Dual Controller SFF Storage (876127-002) supports the following operating systems:
- Microsoft Windows Server 2012, 2012 R2, and 2016
- Red Hat Enterprise Linux (RHEL) 6.5 and 7.x
- SUSE Linux Enterprise Server (SLES) 11 and 12
- VMware vSphere 5.5 and 6.0
General Information about this HPE 876127-002
- Manufacturer: HPE
- Part Number or SKU# 876127-002
- Product Type : Controller
- Product Name : Expansion Module
Technical Information of Expansion Module Controller
- Cache / Buffer Size (Max): 8 GB
- Data Transfer Rate: 600 MBps
- Interface Type: Storage Controller
- RAID Level: RAID 1, RAID 5, RAID 6, RAID 10
- Type: 2 x RAID
Expansion / Connectivity Information for Storage Controller
- Expansion Bays: 24 (total) / 24 (free) – 2.5″ SFF
- Interfaces: 2 x mini-USB 2.0 (management) ¦ 2 x management – RJ-45 ¦ 2 x SAS – RJ-45
Power
- Max Supported Qty: 2
- Power Consumption Operational: 390 Watt
- Power Device: 2 x internal power supply – hot-plug
- Power Redundancy: Yes
- Power Redundancy Scheme: 1+1
- Voltage Required: AC 120/230 V – 50/60 Hz
Dimensions & Weight
- Depth: 22.52 inch
- Height: 3.5 inch
- Width: 17.6 inch
- Weight: 40.56 lbs
Miscellaneous
- Compliant Standards: CISPR 22 Class A, CISPR 24, EN55022, GS, EN55024, CCC, FCC Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, KN24, KN22 Class A, EN61000-3-2, EN61000-3-3, CNS 13438 Class A, ICES-003:2004 Class A
- Features: Systems Insight Manager (SIM)
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
