Description

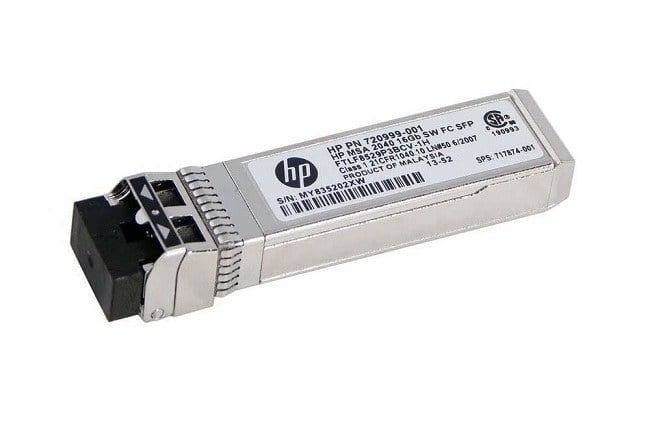

16GB Short Wave Transceiver
A 16GB short wave transceiver is a type of optical transceiver that can transmit and receive data at a rate of 16 gigabits per second (Gbps) using short wave laser signals. It is commonly used in data center and high-performance computing environments for high-speed connectivity between networking equipment such as servers, switches, and storage devices.
The short wave laser signals used in these transceivers typically operate at a wavelength of 850 nanometers, allowing them to transmit data over distances of up to 300 meters using multimode fiber optic cables. This makes them ideal for use in high-bandwidth applications where high-speed data transmission is essential, such as in cloud computing environments, data centers, and storage area networks (SANs).
The 16GB short wave transceiver is designed to be compatible with various networking equipment and protocols, including Fibre Channel (FC), Ethernet, and InfiniBand. It is typically available in Small Form-factor Pluggable (SFP) and Quad Small Form-factor Pluggable (QSFP) form factors, which allow them to be easily installed and replaced in networking equipment.
Features and Benefits
The HPE 876143-001 16GB Short Wave Transceiver offers several features and benefits that make it a popular choice for high-speed data transmission in data center and high-performance computing environments. Here are some of the key features and benefits of this transceiver:
- High-speed data transmission: The HPE 876143-001 16GB Short Wave Transceiver is capable of transmitting data at a rate of 16 gigabits per second (Gbps), making it an ideal choice for high-bandwidth applications where high-speed data transmission is essential.
- Short wave laser signals: The transceiver uses short wave laser signals to transmit data, which allows it to transmit data over distances of up to 300 meters using multimode fiber optic cables.
- Compatibility: The HPE 876143-001 16GB Short Wave Transceiver is designed to be compatible with various networking equipment and protocols, including Fibre Channel (FC), Ethernet, and InfiniBand.
- Easy installation: The transceiver is designed to be easily installed and replaced in networking equipment. It is typically available in Small Form-factor Pluggable (SFP) and Quad Small Form-factor Pluggable (QSFP) form factors.
- Low power consumption: The HPE 876143-001 16GB Short Wave Transceiver is designed to consume low power, which helps to reduce the overall power consumption of the networking equipment and improve energy efficiency.
- High reliability: The transceiver is built to meet the high reliability and quality standards required for data center and high-performance computing environments. It is tested and validated by HPE to ensure that it meets or exceeds industry standards.
- Cost-effective: The HPE 876143-001 16GB Short Wave Transceiver is a cost-effective solution for high-speed data transmission in data center and high-performance computing environments. It offers high performance and reliability at an affordable price.
Installation Process
Here are general steps to install the HPE 876143-001 16GB Short Wave Transceiver:
- Ensure that the networking equipment where the transceiver will be installed is turned off and unplugged from the power source. Also, make sure to wear an anti-static wrist strap to avoid damaging the transceiver or the equipment.
- Locate the slot where the transceiver will be installed. The HPE 876143-001 transceiver is typically installed in an SFP+ slot or a QSFP+ slot depending on the equipment.
- Remove the protective cover from the transceiver and carefully align the transceiver with the slot. Make sure the transceiver is inserted straight into the slot to avoid bending the pins.
- Gently push the transceiver into the slot until it clicks into place. The transceiver should be firmly seated in the slot.
- Once the transceiver is installed, connect the fiber optic cable to the transceiver and ensure that it is properly seated in the connector.
- Turn on the networking equipment and allow it to boot up. The transceiver should be automatically detected by the equipment and the link status should be established.
- Verify that the transceiver is working properly by checking the network settings on the equipment. You may also perform a loopback test to confirm that the transceiver is functioning correctly.
It is important to follow the manufacturer’s instructions for installing the HPE 876143-001 16GB Short Wave Transceiver, as the installation process may vary depending on the specific equipment where it will be installed. If you are unsure of how to install the transceiver, consult the equipment’s user manual or contact the manufacturer for assistance.
Detail Information about HPE 876143-001
- HPE 876143-001 16Gbps Short Wave Fibre Channel SFP+ 4-Pack Transceiver
- Manufacturer : HPE
- Model Number or SKU# 876143-001
- Device Type: SFP+ Transceiver Module
- Form Factor: Plug-in Module
- Packaged Quantity: 4 (Specifications are for Single item)
- Product Features: 4-Pack of 16 Gbps, Short Range, Fibre Channel, SFP+ Transceivers for HPE MSA Storage
- Cabling Type: Fibre Channel
- Connectivity Technology: Wired
- Data Link Protocol: 16Gb Fibre Channel (SW)
- Data Transfer Rate: 14.025 Gbps
- Media & Performance of HPE 876143-001 16Gbps
- Media Type Supported: Optical Fiber
- Ethernet Technology: 16 Gigabit Ethernet
- Network Technology: Fiber Channel
Expansion/Connectivity
- Compatible Slots: 1 x SFP+
- Interfaces: 1 x 16Gb Fibre Channel (Short Wave)
Dimensions & Weight
- Height: 20.32 cm (8.00 inch)
- Width: 0.53 cm (0.21 inch)
- Depth: 7.62 cm (3.00 inch)
- Weight: 0.11 kg (0.25 lbs)
Compatibility Information
- HPE Modular Smart Array 1040 10Gb iSCSI Dual Controller SFF Bundle, 1040 Dual Controller SFF Bundle, 1040 FC Dual Controller SFF Bundle, 1040 LFF Disk Enclosure, 1040 SAN Dual Controller LFF Storage, 1040 SAN Dual Controller SFF Bundle, 1040 SAN Dual Controller SFF Storage, 1040 SAS Dual Controller SFF Bundle, 1040 SFF Chassis, 1040 SFF DC-power Chassis, 2040 10Gb iSCSI Dual Controller SFF Bundle, 2040 Dual Controller SFF Bundle, 2040 FC Dual Controller SFF Bundle, 2040 LFF Disk Enclosure, 2040 SAN Dual Controller LFF Storage, 2040 SAN Dual Controller SFF Bundle, 2040 SAN Dual Controller SFF Storage, 2040 SAS Dual Controller SFF Bundle, 2040 SFF Chassis, 2040 SFF DC-power Chassis
