Description
Hot Plug & High Performance

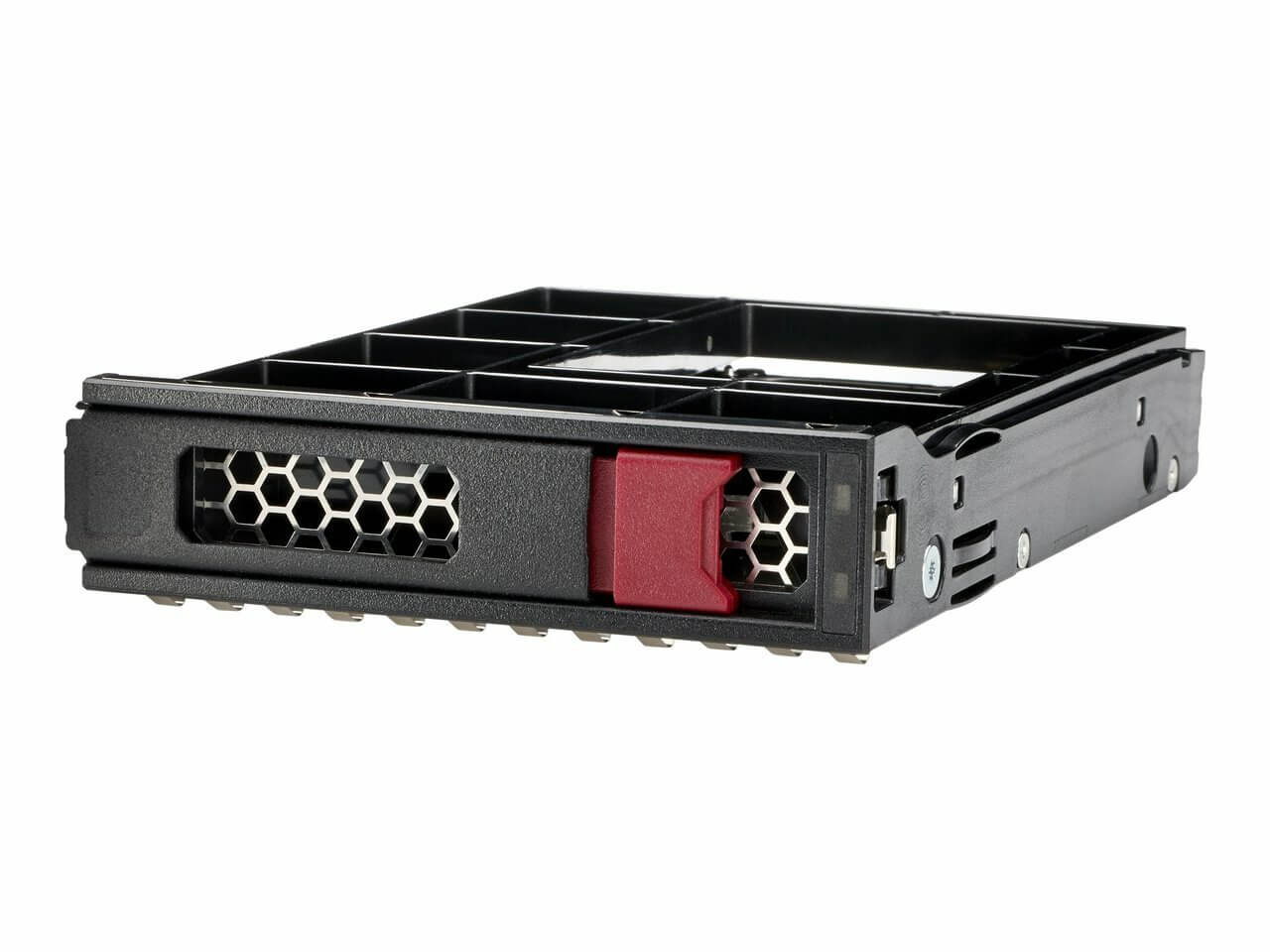

The HPE 877756-H21 is a 960GB solid state drive (SSD) designed for read-intensive workloads. It has a 3.5-inch form factor and uses a SATA-6GBPS interface for fast data transfer speeds. This drive is designed to be hot-swappable, meaning it can be replaced without having to shut down the system, providing hot-plug capability for easy maintenance and upgrades.
The HPE 877756-H21 provides high performance data transfer, making it an ideal solution for applications that require quick access to large amounts of data. The hot-swap feature enables easy and convenient maintenance or upgrades without having to shut down the system, reducing downtime and improving overall system availability.
Hot Swap & Reliability
The HPE 877756-H21 is a 960GB solid state drive (SSD) designed for read-intensive workloads. It features a 3.5-inch form factor and SATA-6GBPS interface for fast data transfer speeds. The hot-swap design allows for easy maintenance and upgrades without having to shut down the system, providing high reliability and reducing downtime.
The use of a solid state drive also eliminates the risk of mechanical failures as there are no moving parts, which results in high reliability. The hot-swap feature makes it easy to replace a failed drive with a new one, reducing downtime and improving system availability.
Suitable Benefits
The HPE 877756-H21 960GB 3.5-inch SATA 6GBPS Large Form Factor (LFF) Read Intensive Hot-Swap SSD provides several benefits:
- Speed: The read-intensive design of the HPE 877756-H21 SSD provides fast access to large amounts of data, making it ideal for use in applications such as data warehousing, content delivery, and read-intensive databases.
- Reliability: SSDs have no moving parts, making them less susceptible to mechanical failures compared to traditional hard disk drives (HDDs). Additionally, hot-swap capability enables the HPE 877756-H21 SSD to be easily replaced without interrupting operation, helping to ensure uptime.
- Capacity: With a 960GB capacity, the HPE 877756-H21 SSD provides a large amount of storage space for data, making it an excellent choice for organizations with high storage requirements.
- RAID compatibility: The HPE 877756-H21 SSD is compatible with RAID facilities, enabling organizations to implement a RAID solution for improved performance, reliability, and/or capacity.
Detail Description
- Manufacturer: Hewlett Packard Enterprise (HPE)
- MPN: 877756-H21
- Option Part Number: 877756-B21
- Spare Part Number: 878851-001
- Model Number: VK000960GWJPF
- ssembly Number: 877013-003
General Information
- Type: Hot-Swap Solid State Drive
- Capacity: 960 GB
- NAND Flash Memory Type: Multi-level cell (MLC)
- Form Factor: 3.5inch LFF
- Interface: SATA-6GBPS
- Features: Digitally Signed Firmware, HPE SmartSSD Wear Gauge
- Height: 0.3inch
- Plug Type: Hot Plug
- Carrier Type: Low Profile Converter
- Workload Type: Read Intensive
- Bundled With: HPE Low Profile Converter
Performance
- Drive Writes Per Day (DWPD): 1
- Drive Transfer Rate: 6 GB/Sec (External)
- Internal Data Rate: 500 MBPS (Read) / 465 MBPS (Write)
- 4KB Random Read: 60000 IOPS
- 4KB Random Write: 30000 IOPS
- Maximum 4KB Random Write: 30000 IOPS
- Maximum 4KB Random Read: 64000 IOPS
- Average Latency: 60 ?s
Power
- Idle: 1.29 Watt
- Random Read: 2.69 Watt
- Random Write: 4.6 Watt
- Sequential Read: 2.31 Watt
- Sequential Write: 4.7 Watt
Miscellaneous
- Compliant Standards: WEEE
Dimensions & Weight
- Height: 5.63inch
- Width: 3.75inch
- Depth: 7.00inch
- Weight: 1.35 lbs
Compatibility Information
- HPE ProLiant ML Series: ML110 Gen10 (3.5inch), ML110 Gen10 Performance (3.5inch), ML110 Gen9 (3.5inch), ML110 Gen9 Base (3.5inch), ML110 Gen9 Entry (3.5inch), ML350 Gen10 (3.5inch), ML350 Gen10 Base (3.5inch), ML350 Gen10 Entry (3.5inch), ML350 Gen10 Performance (3.5inch), ML350 Gen10 Solution (3.5inch), ML350 Gen10 Sub-Entry (3.5inch)
- HPE ProLiant XL Series: XL170R Gen10 (3.5inch), XL190R Gen10 (3.5inch)
