Description
Understanding Shortwave Fibre Channel Technology

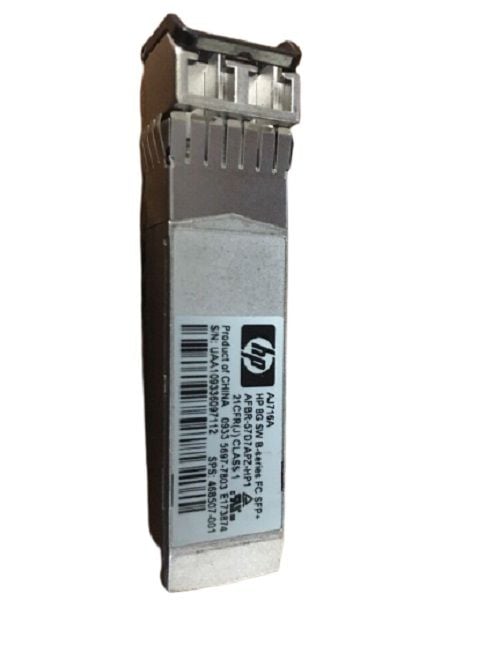

The AJ716AR HPE Shortwave Fibre Channel SFP+ Transceiver is a small form-factor pluggable (SFP+) module designed to enable high-speed connectivity for Fiber Channel networks.
Fiber Channel is a high-speed networking technology used primarily for storage area networks (SANs), where high-speed data transfer and reliability are essential. Shortwave Fiber Channel technology, specifically, refers to the use of shortwave laser optics to transmit data over optical fiber cables.
The AJ716AR HPE Shortwave Fibre Channel SFP+ Transceiver operates at speeds up to 8 Gbps, making it suitable for use in high-speed SAN environments. The transceiver connects to Fiber Channel ports on networking equipment, such as switches and storage devices, using LC fiber optic connectors.
Shortwave Fiber Channel technology uses a 850 nm wavelength laser to transmit data over multimode optical fiber. The short wavelength allows for high data transfer rates over relatively short distances, up to 150 meters. Longer distances can be achieved using single-mode optical fiber with longer wavelength lasers.
Compatible Devices and Networks
The AJ716AR HPE Shortwave Fibre Channel SFP+ Transceiver is a small form-factor pluggable (SFP+) module designed to provide high-speed connectivity for Fibre Channel compatible devices and networks.
The module operates using shortwave laser technology to transmit data over a single fiber optic cable at a speed of up to 8 gigabits per second. It is compatible with Fibre Channel switches, host bus adapters, and storage arrays that support the SFP+ standard.
The AJ716AR HPE Shortwave Fibre Channel SFP+ Transceiver is hot-swappable, which means it can be replaced or removed without disrupting network traffic. It is also designed to be easy to install, requiring no additional configuration or software installation.
Configuring the Transceiver
The AJ716AR HPE Shortwave Fibre Channel SFP+ Transceiver is a type of optical transceiver that is used to connect Fibre Channel networks over short distances using multimode fiber optic cabling.
Configuring the transceiver involves setting up the transceiver to work optimally within the specific Fibre Channel network it is being used in. This can involve several steps, including:
- Checking the compatibility of the transceiver with the Fibre Channel switch or adapter it will be used with. The AJ716AR is specifically designed for use with HPE Fibre Channel switches and adapters.
- Setting the operating wavelength of the transceiver to match the wavelength of the connected network. The AJ716AR operates at a wavelength of 850nm.
- Setting the transmit power level of the transceiver to optimize performance and ensure reliable data transmission over the intended distance. This may involve adjusting the power level based on the length of the fiber optic cable being used.
- Configuring other transceiver parameters, such as the modulation format, bit rate, and other settings that may be specific to the Fibre Channel network.
General Information
- Manufacturer Hewlett Packard Enterprise (HPE)
- Part Number or SKU# AJ716AR
- Type: Networking
- Sub-Type: Short Wave
- Product Name: Shortwave Fibre Channel SFP+ Transceiver
- Product Type XFP
Technical Information
- Application/Usage Data Networking
Interfaces/Ports
- Interfaces/Ports 1 x Fiber Channel
- Interfaces/Ports Details 1 x Fiber Channel Network
Media & Performance
- Data Transfer Rate 8 GBPS Fiber Channel
