Description
Maintenance and troubleshooting
- Clean the transceiver module and the fiber optic connector regularly to ensure optimal performance and to prevent any dust or debris buildup.
- Check the fiber optic connector for any damage or wear. If any damage is found, replace the connector immediately.
- Check the transceiver module for any visible damage or wear. If any damage is found, replace the module immediately.
- Check the transceiver module’s firmware and update it if necessary.
- Check the transceiver module’s LED indicators for proper functioning.
Troubleshooting:
- If the transceiver module is not working properly, check the fiber optic connector for proper alignment and seating.
- Check the transceiver module’s LED indicators for proper functioning.
- Check the transceiver module’s firmware and update it if necessary.
- Check the transceiver module’s compatibility with the host system.
- If the transceiver module is still not working properly, contact HPE support for further assistance.
Installation and setup

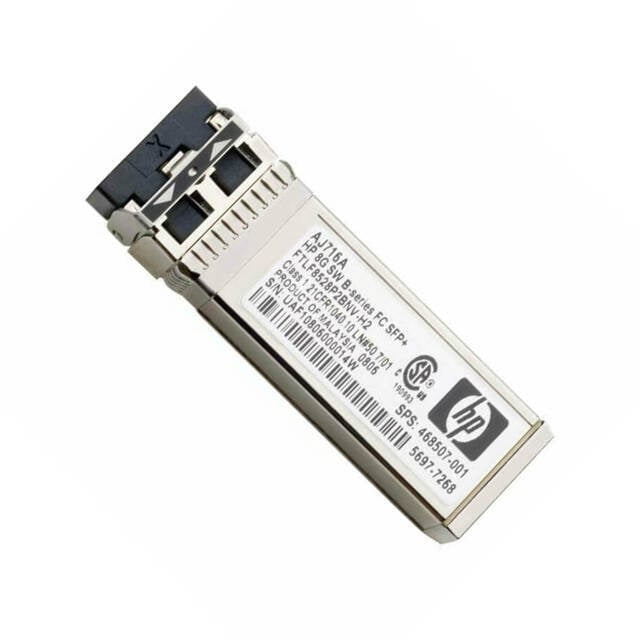

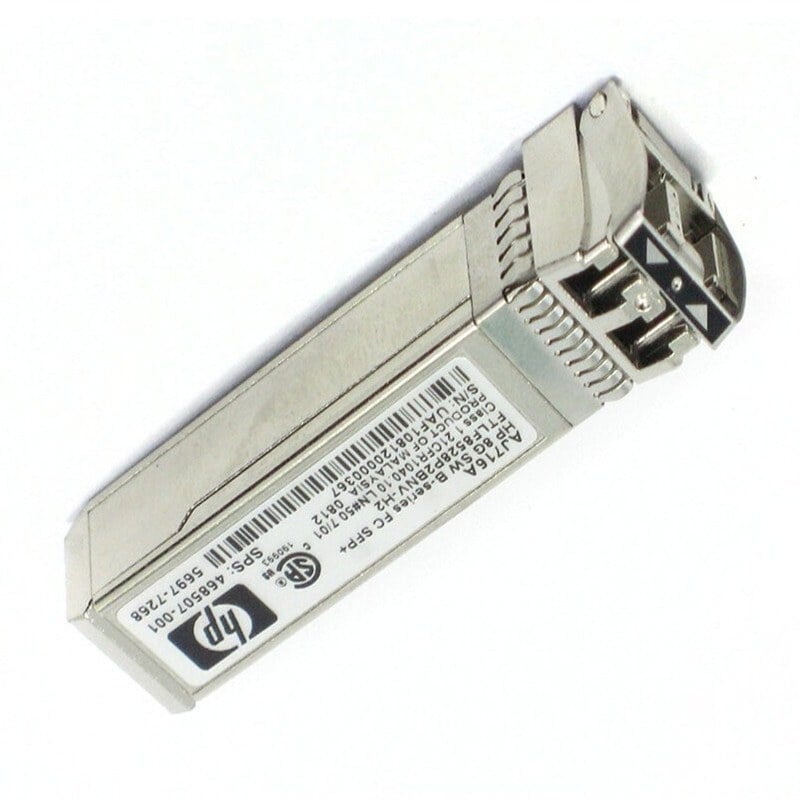

To install and set up the AJ718-63001 HPE 8GBPS Short Wave Fibre Channel SFP+ Transceiver Module, you will need to follow these steps:
- Verify that the host system is compatible with the transceiver module.
- Install the transceiver module into the appropriate port on the host system. Make sure to properly align the module and firmly seat it in the port.
- Connect the other end of the fibre cable to the target device.
- Configure the host system’s Fibre Channel host bus adapter (HBA) and verify that the transceiver module is properly recognized and functioning.
- Configure the target device’s Fibre Channel host bus adapter (HBA) and verify that it is properly recognized and functioning.
- Test the connection by transferring data between the host system and the target device.
It’s important to note that the specific instructions may vary depending on the host system and target device you are using. Please refer to the manufacturer’s documentation for more detailed instructions.
Compatible hardware and software
The AJ718-63001 HPE 8GBPS Short Wave Fibre Channel SFP+ Transceiver Module is compatible with the following hardware and software:
Hardware:
- HPE ProLiant Gen9 and Gen10 servers
- HPE Synergy Composable Infrastructure
- HPE 3PAR StoreServ and StoreVirtual Storage arrays
- HPE MSA Storage arrays
Software:
- HPE OneView
- HPE StoreFabric SAN Manager
- HPE SAN and Fiber Channel Switches
It is also compatible with any other hardware or software that supports 8GBPS Short Wave Fibre Channel SFP+ transceivers.
General Information
- Manufacturer: HPE
- Part Number or SKU# AJ718-63001
- Type : Networking
- Channel-Type : Fibre Channel
- Form Factor : Plug-in Module
- Interface (BUS) Type : SFP
Networking AJ718-63001
- Connectivity Technology : Wired
- Data Link Protocol : 8 GB Fibre Channel (Short Wave)
Dimension and Weight
- Height: 2.91inch
- Width: 4.37inch
- Depth: 6.18inch
- Weight: 1 Lbs
Expansion / Connectivity
- Interfaces : 1 X Network – 8 GB Fibre Channel (Short Wave)
- Compatible Slots : 1 X SFP (Mini-Gbic)
