Description
Performance and Scalability

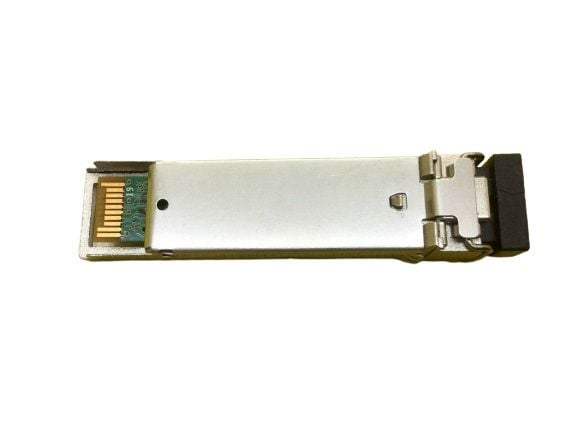

J4858-69001 is a mini-GBIC transceiver module designed for use with HPE (Hewlett Packard Enterprise) ProCurve switches. It provides Gigabit Ethernet connectivity over multimode fiber optic cable and has an LC connector.
The performance and scalability of this mini-GBIC module depends on a few key factors:
- Bandwidth: The J4858-69001 supports Gigabit Ethernet speeds (up to 1000 Mbps), which provides ample bandwidth for most enterprise applications.
- Distance: The module supports distances of up to 550 meters over multimode fiber optic cable, making it suitable for connecting devices in large enterprise networks.
- Scalability: The J4858-69001 is a hot-swappable module, which means that it can be inserted or removed from a switch without affecting the operation of other modules or the switch itself. This makes it easy to add or remove modules as needed to scale the network up or down.
- Compatibility: The J4858-69001 is designed to be compatible with HPE ProCurve switches, which makes it easy to integrate into existing ProCurve networks.
Installation and Configuration
J4858-69001 is a small form-factor pluggable (SFP) transceiver module designed for use with HPE ProCurve networking equipment. It is specifically designed for Gigabit Ethernet connections over multimode fiber optic cables using the 1000Base-SX standard.
Installation:
To install the J4858-69001 module, follow these steps:
- Turn off the power to the HPE ProCurve switch.
- Locate the SFP slot on the switch where you want to install the module.
- Remove the protective cover from the SFP slot.
- Insert the J4858-69001 module into the slot, making sure it is securely seated.
- Replace the protective cover over the SFP slot.
Configuration:
Once the J4858-69001 module is installed, you may need to configure the switch to use it. Here are the general steps for configuring the switch:
- Log in to the HPE ProCurve switch using the appropriate credentials.
- Enter configuration mode by typing “config” at the command prompt.
- Find the SFP port you just installed the module into. You can use the “show interfaces” command to display all interfaces, or the “show interfaces transceiver” command to display only the SFP interfaces.
- Check the status of the SFP port by using the “show interfaces status” command.
- If the SFP port is down, use the “interface [interface-name]” command to select the SFP interface, and then use the “no shutdown” command to bring the interface up.
- Configure the interface with the appropriate VLAN, IP address, and other settings as needed.
- Save your changes by typing “write memory” or “copy running-config startup-config”.
Maintenance and Upkeep
J4858-69001 is a mini-GBIC transceiver module manufactured by Hewlett Packard Enterprise (HPE) for use in HPE Procurve switches. It supports Gigabit Ethernet data rates and operates over multimode fiber optic cables using the 850 nm wavelength.
To ensure the proper maintenance and upkeep of the J4858-69001 mini-GBIC, follow these guidelines:
- Keep the module clean: Use a clean, dry, and non-abrasive cloth to remove any dirt or dust that may accumulate on the module’s surface. Avoid using solvents or liquids to clean the module.
- Avoid physical damage: The mini-GBIC module is a delicate electronic component that can be easily damaged by physical impact. Handle the module with care and avoid dropping it or applying excessive force.
- Ensure proper connections: Ensure that the module is properly inserted into the switch’s mini-GBIC slot and that the fiber optic cables are correctly connected to the module’s LC connector. Misaligned or loose connections can result in poor performance or even failure of the module.
- Monitor module performance: Regularly monitor the module’s performance and check for any errors or anomalies reported by the switch’s diagnostic tools. If you notice any issues, replace the module as soon as possible.
- Keep up with firmware updates: HPE periodically releases firmware updates for their Procurve switches, which may include updates for mini-GBIC modules. Stay up to date with these updates to ensure optimal performance and compatibility with your J4858-69001 module.
By following these guidelines, you can ensure the proper maintenance and upkeep of your J4858-69001 mini-GBIC module and extend its lifespan.
General Information
- Manufacturer: HPE
- Manufacturer Part Number: J4858-69001
- Type: Networking
- Sub-Type: GBIC-SFP
- Device Type : Transceiver Module
- Form Factor : Plug-In Module
- Interface (Bus) Type : Sfp (Mini-Gbic
Networking
- Connectivity Technology : Wired
- Cabling Type : Ethernet 1000base-Sx
- Data Link Protocol : Gigabit Ethernet
- Data Transfer Rate : 1 GBPS
- Features : Full Duplex Capability
- Compliant Standards : IEEE 802.3z
Expansion / Connectivity
- Interfaces : 1 X Network – Ethernet 1000base-Sx – Lc Multi-Mode X 2
- Compatible Slots : 1 X Sfp (Mini-Gbic)
