Description
Introduction to HPE Procurve Switch

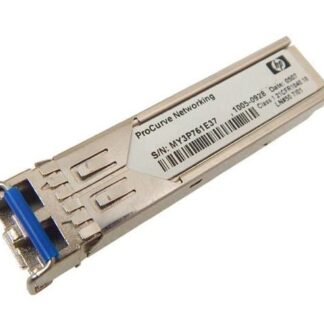

The J4859-69201 is a Gigabit-Lx-Lc transceiver module designed for use with HPE (Hewlett Packard Enterprise) Procurve switches. It is a type of Mini-GBIC (Gigabit Interface Converter) module that allows for the extension of Ethernet connections beyond the typical 100-meter distance limitation of copper cabling.
The 1000BASE-LX standard is used for the transmission of Ethernet signals over single-mode fiber optic cable, and the J4859-69201 transceiver is compatible with this standard. The “LX” in the name stands for “long wavelength,” which refers to the specific wavelength of light used for transmission. The “Lc” in the name stands for “Lucent Connector,” which is a type of fiber optic connector commonly used in enterprise networking.
The J4859-69201 transceiver provides a data transfer rate of up to 1 Gbps (Gigabits per second) and supports a maximum transmission distance of up to 10 kilometers (6.2 miles). It is hot-swappable, meaning it can be installed or removed from a switch while the switch is still operational.
Troubleshooting and Maintenance
J4859-69201 is a small form-factor pluggable (SFP) transceiver module designed for use with HPE Procurve switches to provide Gigabit Ethernet connectivity over fiber-optic cabling. This module uses the LC connector type and supports a maximum cable distance of up to 10 kilometers.
When it comes to troubleshooting and maintenance of J4859-69201 transceivers, there are a few things to keep in mind:
- Check the compatibility: First, ensure that the transceiver is compatible with your HPE Procurve switch model. Check the HPE website for compatibility information and make sure the transceiver is correctly inserted into the switch’s SFP slot.
- Verify the link status: Check if the link between the switch and the transceiver is active. If not, try re-seating the transceiver, swapping the fiber-optic cables, or replacing the transceiver if it’s faulty.
- Check the cable: If the link status is still not active, inspect the fiber-optic cable for any signs of damage or disconnection. Make sure that both ends of the cable are firmly connected to the switch and the transceiver.
- Check the switch configuration: Verify that the switch’s configuration is correct, specifically regarding the SFP slot that the transceiver is plugged into. Ensure that the correct interface is enabled and that the correct VLAN is configured.
- Monitor the transceiver: Finally, monitor the transceiver’s performance and health regularly. Use HPE’s switch management software to check the transceiver’s temperature, voltage, and other diagnostic parameters. Replace the transceiver if it shows any signs of failure or performance degradation.
In terms of maintenance, it’s essential to handle the transceiver with care and avoid physical damage. Clean the transceiver periodically with a lint-free cloth and an alcohol-based cleaner. Avoid using any harsh chemicals or abrasive materials that could damage the transceiver’s optical components.
Compatibility and Interoperability
The J4859-69201 is a small form-factor pluggable (SFP) transceiver module designed for use with HPE Procurve switches. It is specifically designed for use with Gigabit Ethernet networks and provides a 1000BASE-LX/LH interface with LC connector.
In terms of compatibility, the J4859-69201 is designed to work with HPE Procurve switches that have an SFP interface. This means that it is compatible with a wide range of HPE Procurve switches, including the 3500, 5400, 6200, and 6600 series switches, among others.
In terms of interoperability, the J4859-69201 is also designed to work with other devices that support the 1000BASE-LX/LH interface. This means that it can be used to connect HPE Procurve switches to other networking devices such as routers, switches, and servers from other vendors, as long as they support the same interface.
It is worth noting that while the J4859-69201 is designed for use with HPE Procurve switches, it is not exclusively limited to these devices. It can also be used with other networking devices that support the same interface and form factor. However, it is always recommended to check the compatibility and interoperability of any transceiver module before purchasing and installing it in a network.
Main Information about the HPE J4859-69201
- Manufacturer: HPE
- Part Number or SKU# J4859-69201
- Device Type: Transceiver Module GBIC-SFP
Technical Information
- Form Factor : Plug-In Module
- Max. Data Transfer Rate : 1000 MBPS
- Cabling Type : Ethernet 1000base-Lx
- Data Link Protocol : Gigabit Ethernet
- Status Indicators : Link Ok, Link Activity
- Networking Standards : IEEE 802.3z
- Networking Interface Type : Sfp (Mini-Gbic)
- Features : Full Duplex Capability
