Description
Applications and Use Cases

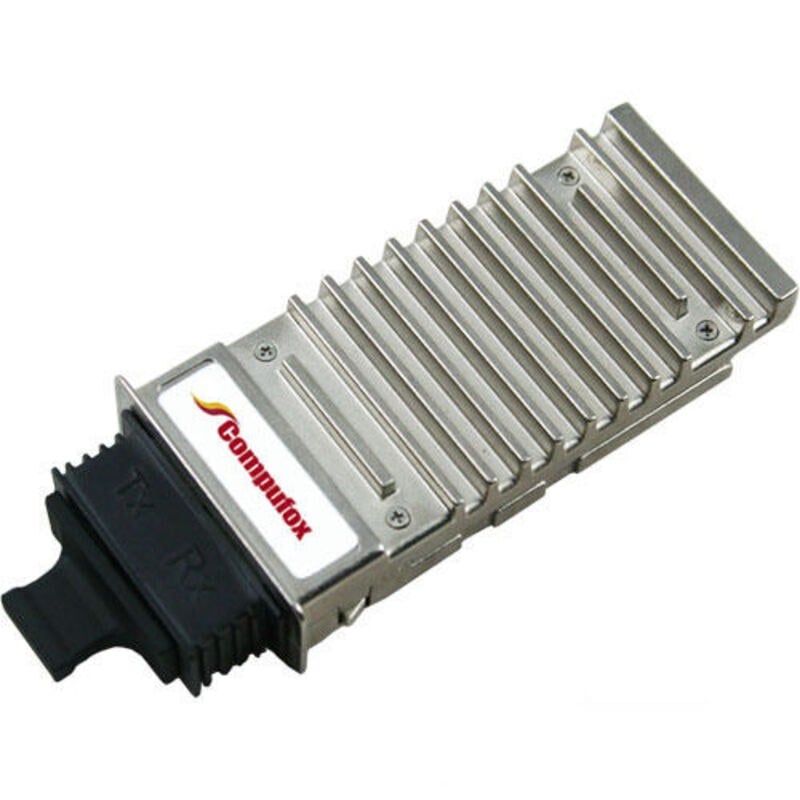

J8436-69001 is an HPE-branded 10GBASE-SR X2 transceiver module designed for use in high-performance networks that require reliable and efficient connectivity. The module operates over multi-mode fiber cables with a wavelength of 850 nm and can transmit data over a distance of up to 300 meters.
The DOM (Digital Optical Monitoring) feature allows for real-time monitoring of the module’s parameters, such as temperature, optical output power, and input voltage, which can help with diagnosing network issues and improving network performance.
This transceiver module is commonly used in data centers, enterprise networks, and service provider networks where high-speed connectivity is required. It can be used for various applications, including server connectivity, storage area networks (SANs), and high-performance computing clusters. It can also be used in conjunction with other networking equipment, such as switches and routers, to provide reliable and high-speed data transfer.
Troubleshooting and Maintenance Tips
J8436-69001 is the part number for an HPE 10GBASE-SR X2 850nm 300m DOM SC 10Gbps Transceiver Module. This is a type of optical transceiver used in network devices, such as switches and routers, to transmit and receive data over fiber optic cables.
When it comes to troubleshooting and maintenance tips for this transceiver module, there are a few things to keep in mind:
- Check the cables: One of the most common issues with optical transceivers is a problem with the fiber optic cables themselves. Make sure the cables are securely connected and not damaged or frayed.
- Verify compatibility: Ensure that the transceiver module is compatible with the network device it is being used in, and that it is properly configured. The device should be able to recognize and communicate with the transceiver.
- Monitor performance: Use monitoring software to keep track of the transceiver’s performance, including signal strength, temperature, and other factors. If any issues are detected, investigate further to determine the cause.
- Clean the transceiver: Over time, the transceiver may accumulate dust and debris, which can affect its performance. Use a lint-free cloth and a cleaning solution specifically designed for optical components to clean the transceiver.
- Replace as needed: If the transceiver is not functioning properly and cannot be repaired, it may need to be replaced. Always use a compatible replacement part to ensure proper functioning of the network device.
Data Transfer Rates
J8436-69001 is a transceiver module manufactured by Hewlett Packard Enterprise (HPE) that supports 10 Gigabit Ethernet (10GbE) data transfer rates over multimode fiber optic cables.
The transceiver uses a form factor called X2, which is a hot-pluggable module that supports a variety of protocols and applications, including 10GbE, 10 Gigabit Fibre Channel, and SONET/SDH.
The “SR” in the name of the transceiver stands for “short reach,” indicating that it is designed for use over short distances. The transceiver uses an 850nm wavelength for transmitting and receiving data, which is suitable for multimode fiber optic cables with a maximum distance of 300 meters.
The “DOM” in the name stands for “digital optical monitoring,” which allows for real-time monitoring of the transceiver’s optical parameters, such as optical power, temperature, and voltage. This enables network administrators to diagnose and troubleshoot issues in the network.
The J8436-69001 transceiver supports data transfer rates of up to 10Gbps, which is the maximum speed of 10GbE networks. This means that it can transmit and receive up to 10 gigabits of data per second, making it suitable for high-bandwidth applications that require fast data transfer, such as data centers, cloud computing, and high-performance computing.
Specifications about this HPE J8436-69001
- Manufacturer: HPE
- Part Number or SKU# J8436-69001
- Product Type: Transceiver Module
- Product Line: ProCurve
Key Features of Multi-mode Transceiver
- Transceiver Type: 10 Gigabit Transceiver
- Application/Usage: Data Networking
Interfaces/Ports
- Interfaces/Ports 1 x 10GBase-SR
- Interfaces/Ports Details 1 x SC Duplex 10GBase-SR
Media & Performance for 10 Gigabit Transceiver
- Media Type Supported: Optical Fiber
- Fiber Optic Cable Standard: 62.5 µm, 50 µm
- Fiber Mode Supported: Multi-mode
Dimensions & Weight of Smart Carrier Transceiver
- Width: 3.5 Inch
- Depth : 1.4 Inch
- Height : 0.4 Inch
- Weight : 1 lbs
