Description
More Specifications

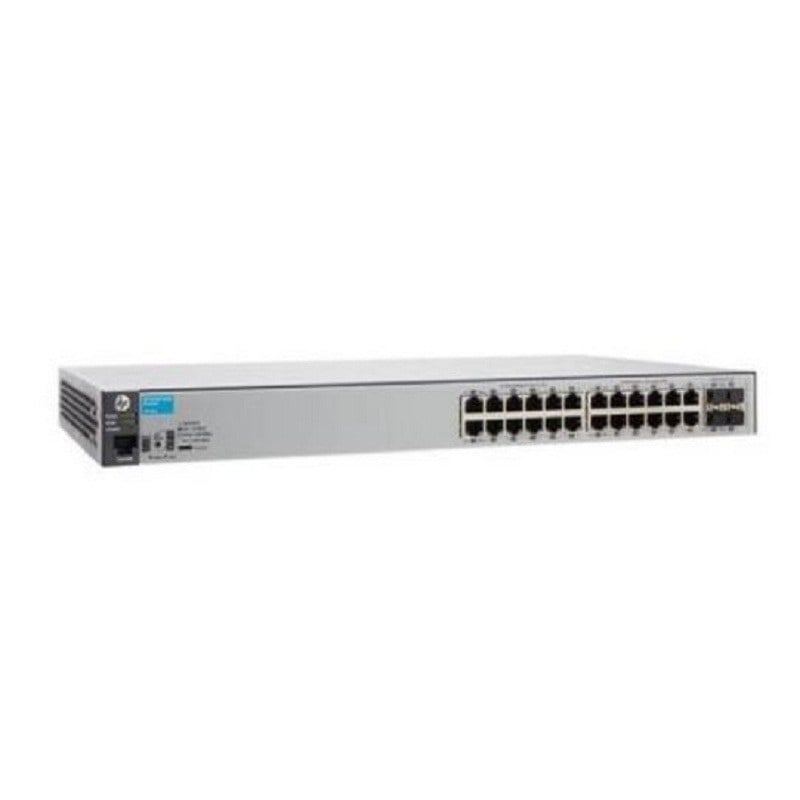

The HPE J9773A#ABA Aruba 2530-24G switch is a cost-effective, fully managed switch designed for small and medium-sized businesses and enterprise branch offices. It provides 24 Gigabit Ethernet ports and 4 SFP ports for high-speed connectivity, as well as Power over Ethernet (PoE+) support for connecting and powering devices such as IP phones and wireless access points.
The switch offers advanced management and security features, including support for VLANs, Quality of Service (QoS), and Access Control Lists (ACLs) for network control. It also supports Aruba ClearPass Policy Manager for network access control and Aruba AirWave for network management. The switch is also compliant with industry standards such as IEEE 802.3af and IEEE 802.3at.
The HPE J9773A#ABA Aruba 2530-24G switch is designed for easy deployment and can be easily integrated into existing networks. It supports flexible power options, including an internal power supply and the ability to connect an external redundant power supply.
In terms of power consumption, the switch supports Energy Efficient Ethernet (EEE) which is a set of enhancements to the IEEE 802.3 Ethernet standard that reduces power consumption during periods of low data activity.
This switch has been widely used in small and medium-sized businesses and enterprise branch offices, as well as in areas such as retail, healthcare, and education. Customers have reported that the switch is easy to set up and manage, and provides reliable performance and high-speed connectivity.
Power over Ethernet (PoE) and Energy Efficiency
Power over Ethernet (PoE) and Energy Efficiency features are beneficial for the HPE J9773A#ABA Aruba 2530-24G switch as they provide more flexibility and cost-effectiveness for powering and connecting devices on the network. PoE eliminates the need for separate power cables and outlets, making deployment and management more convenient. The switch supports IEEE 802.3af and IEEE 802.3at PoE standards, providing up to 30 watts per port, this allows the switch to support a wide range of PoE-enabled devices and ensures that they receive the appropriate amount of power.
Energy Efficient Ethernet (EEE) is a set of enhancements to the IEEE 802.3 Ethernet standard that reduces power consumption during periods of low data activity. This helps to conserve energy and reduce operating costs. By reducing power consumption during periods of low data activity, EEE helps to conserve energy and reduce operating costs. This feature can also help organizations meet energy efficiency and sustainability goals.
In summary, The HPE J9773A#ABA Aruba 2530-24G switch provides advanced management, security, and energy-efficient features to meet the needs of small and medium-sized businesses and enterprise branch offices. It supports Power over Ethernet (PoE) and Energy Efficiency Ethernet (EEE) which helps to power devices, reduce power consumption and save costs.
Capability of 24 Ports Managed Switch
The HPE J9773A#ABA Aruba 2530-24G switch has 24 Gigabit Ethernet ports, which provide high-speed connectivity for devices on the network. Each port supports data transfer rates of up to 1 Gbps, allowing for fast and reliable data transfer between connected devices.
The 24 Gigabit Ethernet ports allow for a large number of devices to be connected to the switch, making it suitable for small and medium-sized businesses and enterprise branch offices. These ports can be used to connect devices such as computers, servers, printers, and network storage devices.
The switch also supports various advanced features such as Quality of Service (QoS) and VLANs, which can be used to prioritize and segment network traffic for improved performance and security.
Additionally, the switch supports link aggregation, which allows for multiple ports to be grouped together to form a single logical link. This can provide increased bandwidth and redundancy, improving network reliability.
General Information
- Manufacturer : HPE
- Part Number or SKU# J9773A#ABA
- Product Type : Networking
- Switch -Type: 24 Ports
Technical Information
- Enclosure Type: Desktop, Rack-Mountable, Wall-Mountable – 1U
- Ports: 24 X 10/100/1000 + 4 X Gigabit SFP
- Power Over Ethernet : POE+
- Performance Throughput: 41.6 MPPS
- Switching Capacity : 56 Gbps
- MAC Address Table Size : 16000 Entries
- Processor: 1 X ARM : 800 MHZ
- Interfaces: 24 X 10BASE-T/100BASE-TX/1000BASE-T – RJ-45 – POE+ 4 X SFP
Dimensions & Weight
- Width: 17.4 inch
- Depth : 13 inch
- Height : 1.8 inch
- Weight : 8.71 lbs
Environmental Parameters
- Min Operating Temperature: 32 °F
- Max Operating Temperature: 113 °F
- Humidity Range Operating: 15 – 95% (non-condensing)
- Min Storage Temperature: -40 °F
- Max Storage Temperature: 158 °F
- Humidity Range Storage: 15 – 90% (non-condensing)
