Description
Features and Benefits
The HPE 5400R Zl2 12-Ports 1GBE SFP MACsec v3 Zl2 Expansion Module, also known as J9993A, is a high-performance networking solution that offers several features and benefits, including:
- Increased Connectivity: The expansion module provides 12 additional 1 GbE SFP ports to the HPE 5400R zl2 Switch Series, expanding its connectivity options.
- MACsec Encryption: The module supports IEEE 802.1AE MACsec encryption, which provides secure communication over the network by encrypting the data at the link layer.
- High-Speed Performance: The module is designed to provide high-speed connectivity with a non-blocking architecture, enabling maximum throughput of up to 24 Gbps.
- Easy Installation: The expansion module is easy to install and can be inserted into any available slot on the HPE 5400R zl2 switch series.
- Flexibility: The module provides flexibility in network design and deployment, making it ideal for a wide range of applications.
- Investment Protection: The expansion module is designed to work seamlessly with the HPE 5400R zl2 switch series, providing investment protection by allowing customers to expand their networks as their business grows.
- Efficient Power Usage: The module is designed to operate efficiently and consume low power, reducing the overall power consumption of the switch.
Advantages
The 9989A HPE 5400R Zl2 12-Ports 1GBE SFP Macsec V3 Zl2 Expansion Module offers several advantages, including:
- High-speed connectivity: The module provides 12 high-speed 1 Gigabit Ethernet ports, which offer fast connectivity for network devices.
- Secure connections: The module comes with MACsec encryption, which provides secure connections between network devices, protecting against cyber threats.
- Scalability: The module allows for expansion of the HPE 5400R Zl2 switch, which provides a scalable solution for growing networks.
- Easy installation: The module is easy to install and configure, saving time and effort for network administrators.
- Versatility: The module supports a variety of SFP modules, allowing for flexibility in connecting to different network devices.
- High-performance: The module provides high-performance, low-latency switching, ensuring smooth network operation.
Management and Configuration
The HPE 5400R Zl2 12-Ports 1GBE SFP MACsec v3 Zl2 Expansion Module is a networking module designed for the HPE 5400R switch series. The module provides 12 additional 1 Gigabit Ethernet SFP ports, each of which supports MACsec v3 encryption for enhanced network security.
To manage and configure the 9989A HPE 5400R Zl2 12-Ports 1GBE SFP MACsec v3 Zl2 Expansion Module, you will need to follow these steps:
- Connect to the switch: Use a console cable to connect your computer to the switch’s console port. You can then use a terminal emulator, such as PuTTY or HyperTerminal, to establish a console session.
- Configure basic settings: Once you have established a console session, you can configure basic settings for the switch, such as setting the hostname, configuring IP addresses, and enabling SSH.
- Install the expansion module: If you have not already done so, install the 9989A HPE 5400R Zl2 12-Ports 1GBE SFP MACsec v3 Zl2 Expansion Module into an available expansion slot on the switch.
- Configure the expansion module: Once the module is installed, you can configure it using the switch’s command-line interface (CLI) or web interface. To configure the module using the CLI, use the “interface” command to specify the module and port number, and then use the appropriate commands to configure the port settings and MACsec v3 encryption.
- Verify the configuration: After configuring the expansion module, you should verify that it is functioning properly by testing connectivity and verifying that MACsec v3 encryption is enabled and functioning correctly.
It is recommended that you consult the HPE 5400R Switch Series Management and Configuration Guide for detailed instructions on managing and configuring the switch and its expansion modules, including the 9989A HPE 5400R Zl2 12-Ports 1GBE SFP MACsec v3 Zl2 Expansion Module.

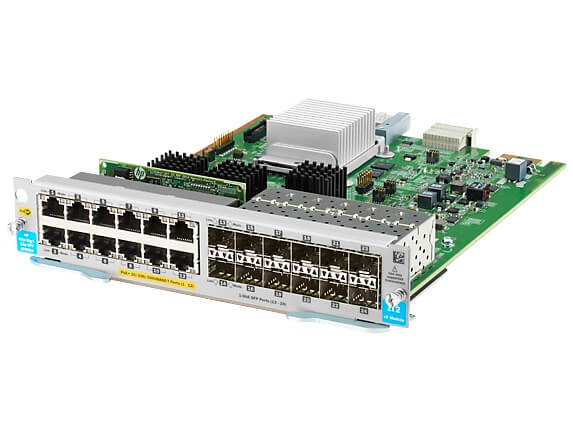

General Information about the HPE J9989A
- Manufacturer : HPE
- Part Number or SKU# J9989A
- Device Type : Expansion Module 12 Ports
Networking:
- Ports : Gigabit Ethernet (Poe+) X 12 + Gigabit Sfp X 12
- Connectivity Technology : Wired
- Cabling Type : Ethernet 10Base-T, Ethernet 100Base-Tx, Ethernet 1000Base-T
- Data Link Protocol : 10MB Lan, 100MB Lan, Gige
- Data Transfer Rate : 1 GBPS
- Features : Poe+, Macsec Support
- Form Factor : Plug-In Module
Expansion / Connectivity
- Interfaces : 12 X 1000Base-T (Poe+) – Rj-45 ¦ 12 X Ethernet 1000 – Sfp (Mini-Gbic)
