RAID Configurations and Performance
RAID, or Redundant Array of Independent Disks, is a data storage technology that combines multiple physical disks into a single logical unit for the purposes of data redundancy, performance improvement, or both. There are several different RAID configurations, each with their own strengths and weaknesses, that are commonly used in enterprise storage systems.
For example, RAID 0 (striping) splits data evenly across two or more disks, which can improve performance by allowing multiple disks to work together to retrieve data. However, it provides no redundancy, so if one disk fails, all data is lost.
RAID 1 (mirroring) involves duplicating data across two or more disks, providing complete redundancy in case of a disk failure, but at the cost of storage capacity.
RAID 5 (distributed parity) uses striping with parity to provide both redundancy and performance improvements, but it requires at least three disks and can be slower than other RAID configurations.
RAID 6 (dual distributed parity) is similar to RAID 5, but uses two parity stripes for additional redundancy, allowing for up to two disk failures without data loss.
Other RAID configurations, such as RAID 10 (a combination of RAID 1 and RAID 0) and RAID 50 (a combination of RAID 5 and RAID 0), are also commonly used in enterprise storage systems, each with their own trade-offs between performance, redundancy, and storage capacity.
The performance of a RAID system can be affected by several factors, including the RAID configuration, the number and type of disks used, the interface speed, and the performance of the RAID controller. Proper configuration and monitoring of RAID systems is critical to ensure optimal performance and data protection.
Error Correction and Fault Tolerance
Error correction and fault tolerance are crucial features in modern storage systems. Error correction refers to the ability of the system to detect and correct errors that may occur during data transfer or storage. This is typically achieved through the use of error-correcting codes (ECC) that are integrated into the storage hardware.
Fault tolerance refers to the ability of the storage system to continue functioning in the event of a component failure or other fault. In a fault-tolerant system, redundant components are used to ensure that the system can continue to operate even if one or more components fail. This can include things like redundant power supplies, fans, or hard drives, as well as advanced software features like RAID (redundant array of independent disks).
By using error correction and fault tolerance, storage systems can provide high levels of data reliability and availability. These features are especially important in mission-critical applications where data loss or downtime can have serious consequences.
Advanced Data Protection Features

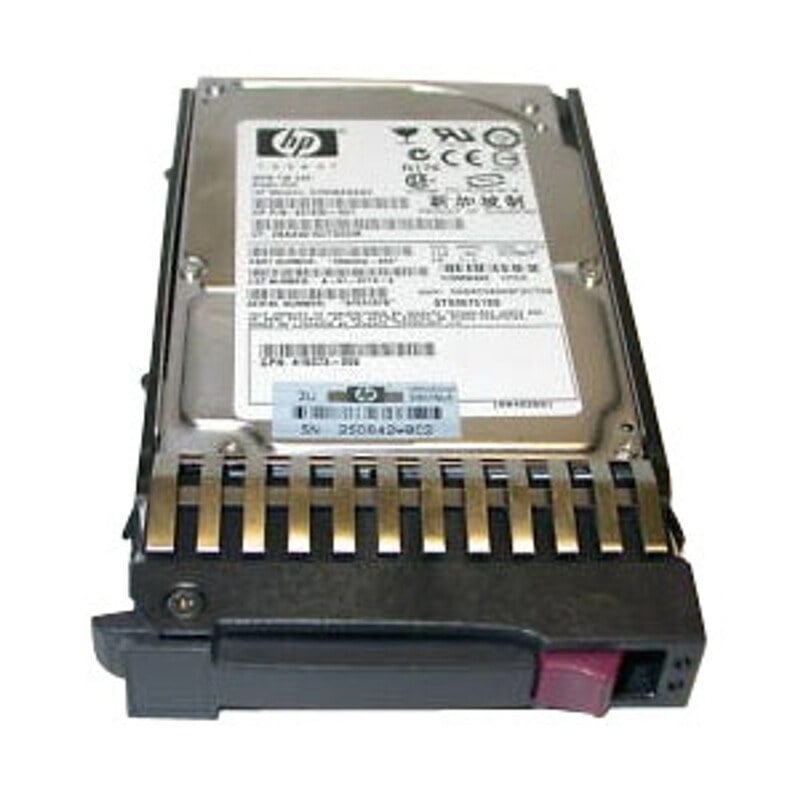

Advanced Data Protection Features refer to the set of functionalities or tools that help protect data from loss, corruption, or unauthorized access. The J9F46A HPE 600GB 12GBPS SAS 10K RPM SFF Dual Port with Tray Hard Drive is equipped with several advanced data protection features such as:
- Encryption: The hard drive comes with hardware-based encryption that ensures that data is secure at rest. It uses the Advanced Encryption Standard (AES) algorithm to encrypt and decrypt data.
- Data Erasure: The hard drive supports data erasure methods that ensure all data is permanently removed from the drive before it is disposed of. This helps prevent unauthorized access to sensitive information.
- Data Integrity: The hard drive employs a number of techniques to ensure data integrity, such as cyclic redundancy check (CRC) and error-correcting code (ECC) technologies. These methods help detect and correct errors in data.
- SMART Technology: The hard drive features Self-Monitoring, Analysis, and Reporting Technology (SMART) that provides early warning of possible drive failure. This helps to avoid data loss due to drive failure.
- RAID Support: The hard drive supports different RAID configurations to enhance data protection and increase performance. RAID (Redundant Array of Independent Disks) enables data to be stored on multiple disks to provide redundancy, improved performance, or both.
Product Information:
- Manufacturer Name: HPE
- Type: Hard Drive – Hot-Swap
- HDD: SAS 12GBPS
- MPN: J9F46A
- Option Part Number: J9F46A
- Spare Part Number: 787646-001
- Model Number: EG0600JEHMA
- Model Number: EG0600JEMCV
- Model Number: EG0600JETKA
- Model Number: EG000600JWEBH
- Model Number: EG000600JWFUV
- Model Number: EG000600JWJNH
- Model Number: EG000600JWJNP
- Assembly Number: 787677-002
- Assembly Number: 781514-001
- Assembly Number: 796365-002
- Assembly Number: 869714-002
- SKU: J9F46A
Technical Information
- Capacity: 600 GB
- Form Factor: 2.5 inch SFF
- Interface: SAS 12Gbps
- Bytes per Sector: 512
- Drive Technology (Fill): Air
- Carrier Type: Standard MSA Carrier
- Workload Type: Enterprise
- Plug Type: Hot Plug
- Features: Dual Port
- Bundled With: HPE Standard MSA Carrier
Performance
- Drive Transfer Rate: 12 Gb/sec (external)
- Average Seek Time: 3.3 ms
- Max Seek Time: 6.6 ms
- Single Track Seek Time: 0.11 ms
- Spindle Speed: 10000 RPM
Expansion & Connectivity
- Interfaces: 1 x SAS-12Gb/s
- Compatible Bay: 2.5″ SFFNumber: J9F46A
- Brand Name: HPE
- Type: Hard Disk Drive (HDD)
Dimension and Weight
- Width: 2.8 Inch
- Depth: 3.9 Inch
- Height: 0.6 Inch
- Weight: 0.50 LBS
Environmental Parameters
- Min Operating Temperature: 50 °F (10° C)
- Max Operating Temperature: 95 °F (35° C)
Compatibility Information
- HPE Modular Smart Array 1040 Dual Controller SFF Bundle, 1040 Dual Controller SFF Storage,
- 2040 10Gb iSCSI Dual Controller SFF Bundle, 2040 Dual Controller SFF Bundle,
- 2040 FC Dual Controller SFF Bundle, 2040 SAN Dual Controller SFF Bundle,
- 2040 SAN Dual Controller SFF Storage, 2040 SAN w/o SFP SFF Bundle, 2040 SAS Dual Controller SFF Bundle,
- 2040 SAS Dual Controller SFF Storage, 2040 SFF Chassis, 2040 SFF DC-power Chassis, 2042 SAN Dual Controller SFF Storage,
- 2042 SAN Dual Controller with Mainstream Endurance Solid State Drives SFF Storage,
- 2042 SAS Dual Controller SFF Storage, 2042 SAS Dual Controller with Mainstream Endurance Solid State Drives SFF Storage
