Description
Reliable and Scalable

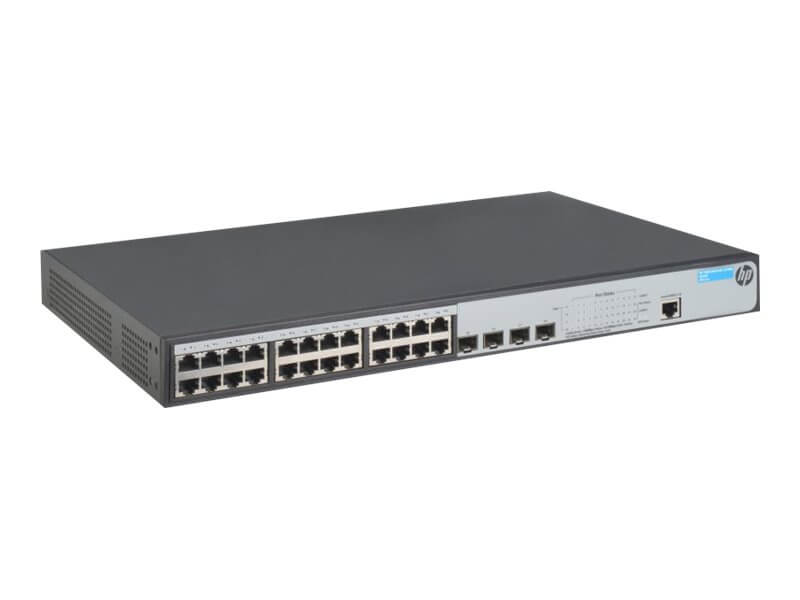

The JG926A HPE 1920-24G-PoE+ 370W Gigabit SFP Ethernet Network 24 Ports Switch is a reliable and scalable device that can be used to expand the capacity of a network. It has 24 Gigabit Ethernet ports and supports Power over Ethernet Plus (PoE+) for powering devices such as IP phones and wireless access points. It also has 370 watts of PoE budget, allowing it to support multiple high-power devices. Additionally, the switch supports Quality of Service (QoS) features to prioritize traffic and ensure smooth network performance.
Maximize Power and Performance
- Use Quality of Service (QoS) to prioritize critical network traffic: QoS allows you to assign a higher priority to specific types of network traffic, such as VoIP or streaming video, to ensure that these applications have the bandwidth they need to function smoothly.
- Enable jumbo frames: Jumbo frames allow for larger packet sizes, which can improve performance for large data transfers.
- Utilize link aggregation: Link aggregation allows you to bundle multiple Ethernet links together to increase bandwidth and improve fault tolerance.
- Use the latest firmware: Keeping your switch’s firmware up-to-date can help ensure that you are taking advantage of the latest performance enhancements and security features.
- Implement VLANs: Virtual LANs (VLANs) can help increase network security and segment your network into different logical segments, which can improve performance.
- Use redundant power supplies: The JG926A has dual power supplies, so make sure that both are enabled to provide failover protection in case one power supply fails.
- Utilize the PoE+ ports: If you have devices that require Power over Ethernet, make sure to use the PoE+ ports for optimal performance.
- Monitor network performance: Regularly monitoring network performance can help you identify bottlenecks and potential issues, allowing you to take proactive steps to improve performance.
Management and Security
The HPE 1920-24G-PoE+ 370W Gigabit SFP Ethernet Network 24 Ports Switch (JG926A) is a powerful and versatile switch that offers a number of features to help manage and secure your network. Some of the key management and security features include:
- Web interface: The switch can be accessed and configured via a web interface, which allows for easy and convenient management of the switch from any device with a web browser.
- CLI: The switch also supports command-line interface (CLI) access, which allows for more advanced configuration and troubleshooting.
- SNMP: The switch supports Simple Network Management Protocol (SNMP), which allows for monitoring and management of the switch from a remote location.
- Access control: The switch supports access control lists (ACLs), which allow you to control which devices can access the switch and what they can do once they are connected.
- VLANs: The switch supports virtual LANs (VLANs), which allow you to segment your network into different logical groups and control access between them.
- QoS: The switch supports Quality of Service (QoS), which allows you to prioritize different types of traffic and ensure that critical applications receive the bandwidth they need.
- PoE: The switch supports Power over Ethernet (PoE), which allows you to power devices such as IP phones and wireless access points directly from the switch.
- Security: The switch supports various security features such as port security, DHCP snooping, and IP source guard, which can help prevent unauthorized access and protect your network from attacks.
General Information
- Manufacturer: HPE
- Manufacturer Part Number: JG926A
- Type: Networking
- Switch -Type: 24 Port
- SKU:JG926A
Technical Information
- Enclosure Type : Desktop, Rack-Mountable – 1u
- Subtype : Gigabit Ethernet
- Ports : 24 X 10/100/1000 (Poe+) + 4 X Gigabit Sfp
- Power Over Ethernet (Poe) : Poe+
- Poe Budget : 370 W
- Performance : Throughput : Up To 41.7 Mpps ¦ Routing/Switching Capacity : 56 Gbps
- Capacity : Ipv4 Routing Table Entries : 32 ¦ Ipv6 Routing Table Entries : 32
- Mac Address Table Size : 8192 Entries
- Jumbo Frame Support : 10kb
- Routing Protocol : Static Ipv4 Routing, Static Ipv6 Routing
- Remote Management Protocol : Snmp 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Http, Https, Tftp, Cli
- Encryption Algorithm : Ssl
- Authentication Method : Secure Shell (Ssh), Radius
- Features : Flow Control, Layer 2 Switching, Auto-Negotiation, Arp Support, Vlan Support, Auto-Uplink (Auto Mdi/Mdi-X), Igmp Snooping, Syslog Support, Port Mirroring, Weighted Round Robin (Wrr) Queuing, Ipv6 Support, Spanning Tree Protocol (Stp) Support, Rapid Spanning Tree Protocol (Rstp) Support, Multiple Spanning Tree Protocol (Mstp) Support, Access Control List (Acl) Support, Quality Of Service (Qos), Jumbo Frames Support, Mld Snooping, Cable Diagnostics Function, Stp Root Guard, Dhcp Relay, Port Security, Dhcp Client, Dual Firmware Images, Strict Priority Queuing (Spq), Port Isolation, Static Routing, Class Of Service (Cos), Single Ip Management (Sim)
- Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3i, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (Lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ab (Lldp), Ieee 802.3at, Ieee 802.3az
- Processor : 1 X Mips : 500 Mhz
- Ram : 128 Mb – Sdram
- Flash Memory : 32 Mb
Dimensions & Weight
- Width: 17.3 inch
- Depth : 10.2 inch
- Height : 1.7 inch
- Weight : 7.50 lbs
Expansion / Connectivity
- Interfaces : 24 X 1000base-T – Rj-45 – Poe+ ¦ 4 X 1000base-X – Sfp ¦ 1 X Console – Rj-45 – Management
