Description
Features and Benefits
- High-Performance Networking: The Aruba 6300f switch provides fast and reliable Gigabit Ethernet connectivity with its 48 ports.
- Power over Ethernet (PoE): The switch supports Class 4 PoE, allowing power to be delivered to network devices such as cameras, access points, and phones.
- SFP56 Ports: The switch also features 4 SFP56 ports, providing high-speed connectivity options for high-bandwidth devices such as storage systems and servers.
- Easy Deployment: The rack-mountable design of the switch makes it easy to install and integrate into a network.
- Advanced Network Management: The switch supports advanced network management features such as Quality of Service (QoS), VLANs, and Link Aggregation.
- Reliable and Secure: The switch is built with robust security features to protect against network attacks and ensure reliable performance.
- Energy Efficient: The switch is designed to be energy efficient, reducing power consumption and operating costs.
8 Gigabit Ethernet Ports with PoE
The HPE JL665-61101 Aruba 6300f switch features 48 Gigabit Ethernet ports, providing fast and reliable connectivity for a large number of network devices. Each port supports speeds up to 1 Gbps, allowing for quick transfer of data between devices.
In addition to Gigabit Ethernet connectivity, the switch also supports Power over Ethernet (PoE). This allows power to be delivered to connected devices, eliminating the need for separate power sources for each device. The switch supports Class 4 PoE, which provides up to 30W of power per port, enough to power a wide range of network devices such as cameras, access points, and phones.
The combination of Gigabit Ethernet connectivity and PoE support makes the HPE JL665-61101 switch an ideal choice for deploying and powering a large number of network devices in a variety of environments, from small office networks to large enterprise deployments. The switch’s ability to deliver both data and power over a single Ethernet cable simplifies the deployment process, reducing cabling and power requirements.
Class 4 PoE for Powering Network Devices
The HPE JL665-61101 Aruba 6300f switch supports Power over Ethernet (PoE), which allows power to be delivered to connected devices via Ethernet cable. The switch supports Class 4 PoE, providing up to 30W of power per port.
This feature is particularly useful for powering network devices such as cameras, access points, and phones that require power but do not have a dedicated power source. With PoE support, these devices can be powered through the Ethernet cable, eliminating the need for separate power sources and reducing the amount of cabling required for deployment.
The Class 4 PoE support of the HPE JL665-61101 switch ensures that connected devices receive the power they need to operate properly. This can help improve network reliability and performance, as well as reduce the complexity and cost of deploying and powering network devices.
In addition to its benefits for powering network devices, PoE support also makes the HPE JL665-61101 switch a more environmentally friendly option, as it helps reduce power consumption and operating costs. The switch’s ability to deliver both data and power over a single Ethernet cable helps to simplify the deployment process and improve overall network efficiency.

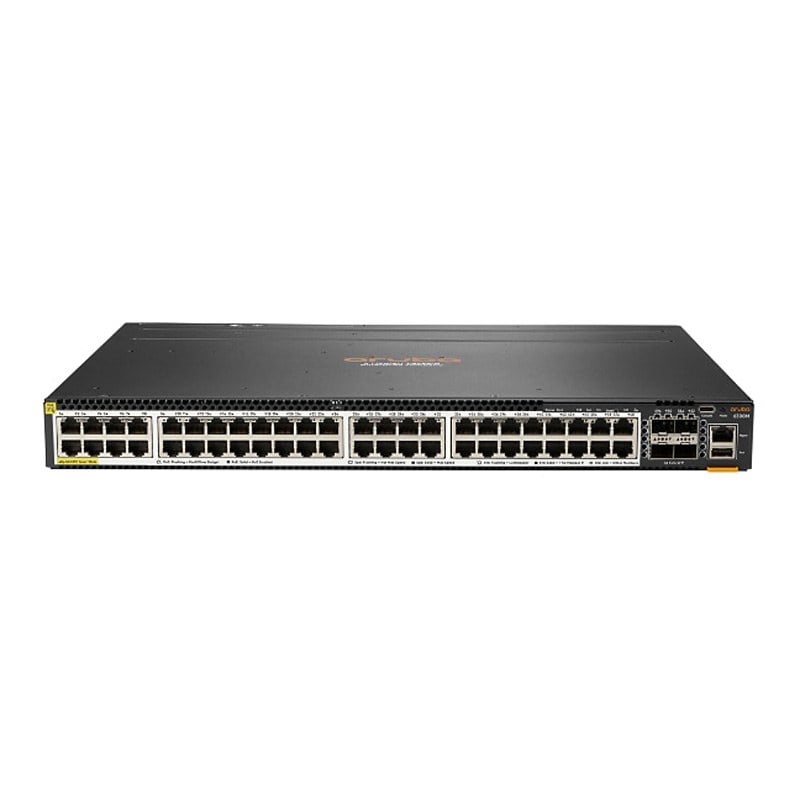

General Information about the HPE JL665-61101
- Manufacturer: HPE
- Part Number or SKU# JL665-61101
- Product Type: 48 Ports L3 Managed Stackable Switch
Technical Information of HPE 48 Ports Switch
- Enclosure Type: Rack-Mountable 1U
- Sub type: Gigabit Ethernet
- Ports : 48 X 10/100/1000 (PoE+) + 4 X 50 Gigabit Ethernet SFP56
- Power Over Ethernet (PoE) : PoE+
Performance
- Switching Capacity: 496 GBPS Switching Throughput: 369 MPPS 1 GBPS Average Latency (64-byte Packets): 2.28 ?s 10 GBPS Average Latency (64-byte Packets): 1.46 ?s 25 GBPS Average Latency (64-byte Packets): 1.9 ?s 50 GBPS Average Latency (64-byte Packets): 3.49 ?s Stacking Bandwidth: 200 GBPS
- Capacity : Switched Virtual Interfaces (svis): 1000 Ipv4 Host Table Capacity: 32000 Ipv6 Host Table Capacity: 32000 Ipv4 Routes (unicast): 64000 Ipv6 Routes (unicast): 32000 Ipv4 Routes (multicast): 8000 Ipv6 Routes (multicast): 8000 Igmp Groups: 8000 Mld Groups: 4000 Ipv4 Acl Entries (ingress): 5000 Ipv6 Acl Entries (ingress): 1250 Mac Acl Entries (ingress): 5000 Ipv4 Acl Entries (egress): 2000 Ipv6 Acl Entries (egress): 500 Mac Acl Entries (egress): 2000
- Mac Address Table Size : 32000 Entries
- Jumbo Frame Support : 9198 Bytes
- Routing Protocol : Ospf, Bgp-4, Bgp, Igmp, Ospfv2, Pim-dm, Igmpv3, Msdp, Mldv2, Mld, Cidr
- Remote Management Protocol : Snmp 1, Rmon, Telnet, Snmp 3, Snmp 2c, Http, Tftp, Ssh, Xrmon, Sftp
- Encryption Algorithm : Ssl, Fips 140-2
- Authentication Method : Secure Shell (ssh), Radius, Tacacs+
Features
- Dhcp Support, Bootp Support, Arp Support, Vlan Support, Syslog Support, Port Mirroring, Diffserv Support, Ipv6 Support, Sflow, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Quality Of Service (qos), Mld Snooping, Trusted Platform Module (tpm), Front To Back Airflow, Uni-directional Link Detection (udld), Deficit Weighted Round Robin (dwrr), Lldp Support, Fan Tray, Snmp Trap, Management Information Base (mib), Virtual Routing And Forwarding (vrf), Multiple Vlan Registration Protocol (mvrp), Neighbor Discovery Protocol (ndp), Class Of Service (cos), Strict Priority (sp), Tagged Vlan, 8mb Packet Buffer, 802.1x Authentication, Type Of Service (tos), Bridge Protocol Data Unit (bpdu), Icmp Router Discovery Protocol (irdp), Virtual Extensible Lan (vxlan), Link Aggregation, Ethernet Virtual Private Network (evpn), Network Timing Protocol (ntp), Lldp-med, Denial Of Service (dos) Protection, Rapid Reconfiguration Of Spanning Tree (rstp), Cisco Discovery Protocol (cdp), Bootstrap Router (bsr) Mechanism
Compliant Standards
- Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1t, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3an, Ieee 802.3at, Ieee 802.3ba, Ieee 802.1ax, Itu-t G.8032, Ieee 802.3bj, Ieee 802.3bm, Ieee 802.3by, Ieee 802.3bz, Ieee 802.3bt, Ieee 802.3cc, Itu-t Y.1344, Ieee 802.3cd
- Processor : 1 X Arm Cortex-a72: 1.8 GHZ
- Ram: 8 GB DDR4 SDRAM
- Flash Memory : 32 GB
Expansion / Connectivity for this HPE Ethernet Switch
- 48 X 1000base-t Rj-45 POE+ 30 W
- 4 X 50gbit Lan SFP56
- 1 X Console (Usb) Type C
- 1 X Usb Type A
