Description

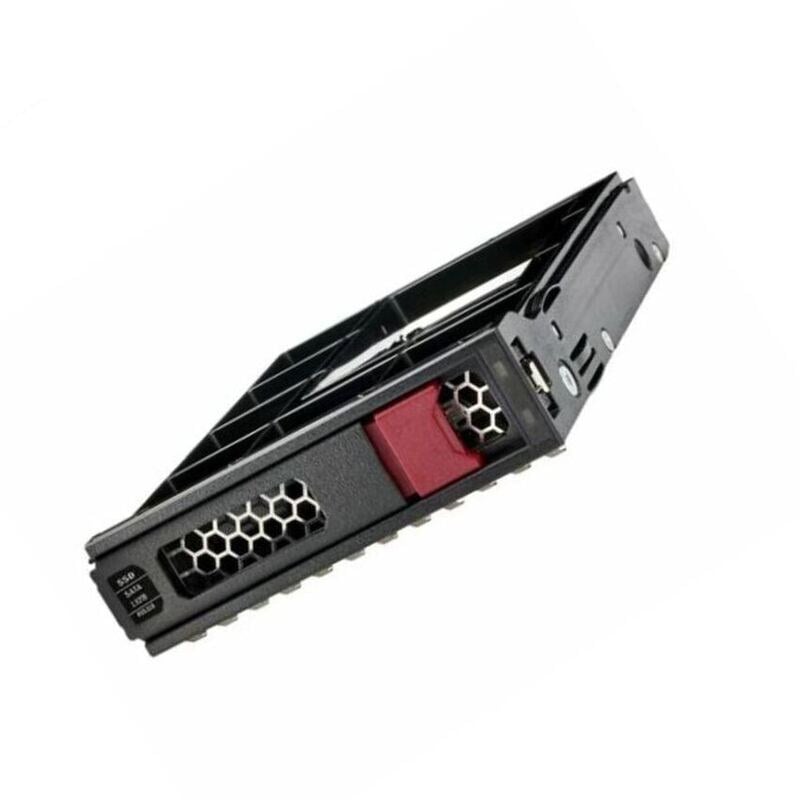

HPE P04501-B21 1.92TB Digitally Signed SATA SSD for Servers
In the realm of server technology, storage drives play a crucial role in ensuring data integrity, speed, and reliability. Among the numerous storage options available, the HPE P04501-B21 solid-state drive (SSD) stands out as a high-capacity, digitally signed solution designed specifically for server systems. This comprehensive guide aims to delve into the intricate details of this 1.92 terabyte (TB) SSD, elucidating its features, specifications, and its suitability for server environments.
Introduction to HPE P04501-B21 SSD
The HPE P04501-B21 is a digitally signed SATA SSD developed by Hewlett Packard Enterprise (HPE). It is engineered to provide robust storage capabilities within server infrastructures, catering to the demands of modern data centers, cloud computing, and enterprise applications. This SSD offers a substantial storage capacity of 1.92TB, ensuring ample space for critical data storage and retrieval.
Understanding SSD Technology
Solid-state drives (SSDs) differ significantly from traditional hard disk drives (HDDs) in their architecture and functionality. Instead of using spinning disks and magnetic storage, SSDs employ flash memory to store data. This difference results in enhanced performance, faster read and write speeds, and improved reliability.
Key Features of the HPE P04501-B21 SSDCapacity: 1.92 Terabytes
The HPE P04501-B21 boasts a generous storage capacity of 1.92TB. This sizable capacity makes it suitable for storing large volumes of data, applications, and operating systems within server environments.
Digitally Signed (DS) Security
Digital signatures are cryptographic mechanisms used to verify the authenticity and integrity of digital data. The DS feature in the HPE P04501-B21 ensures data security, minimizing the risk of tampering and unauthorized access.
Serial Advanced Technology Attachment (SATA) Interface
The SSD utilizes the SATA interface, a common connectivity standard for storage devices. SATA ensures compatibility with a wide range of server systems while offering decent data transfer speeds.
6 Gigabytes Per Second (Gbps) Transfer Rate
The HPE P04501-B21 operates at a maximum transfer rate of 6Gbps. This high-speed transfer capability accelerates data access and facilitates quicker application loading times.
3.5-Inch Large Form Factor (LFF)
The SSD’s 3.5-inch large form factor denotes its physical size, ensuring compatibility with server drive bays designed to accommodate larger drives.
Firmware Read-Intensive Design
The firmware in this SSD is optimized for read-intensive workloads, making it suitable for applications and environments where frequent data retrieval is a primary task.
Suitable for Server Environments
Designed explicitly for servers, this SSD is engineered to meet the demands of high-performance computing, data centers, and enterprise-grade applications, ensuring reliability and endurance.
Applications in Server Environments
The HPE P04501-B21 SSD finds utility in a myriad of server-based applications, including:
- Database servers
- Virtualization platforms
- Cloud computing infrastructure
- High-performance computing clusters
Benefits of Deploying HPE P04501-B21 SSD
Enhanced Performance
The SSD’s high-speed data transfer rates and optimized firmware contribute to improved system performance, reducing latency and enhancing overall responsiveness.
Reliability and Endurance
Designed for server environments, this SSD is built to withstand heavy workloads and offers enhanced endurance, ensuring data integrity and reliability.
Data Security
The digitally signed feature enhances data security by assuring data authenticity and integrity, crucial in safeguarding sensitive information.
General Information about this HPE P04501-B21
- Manufacturer: HPE
- Model Number or SKU# P04501-B21
- Product Type: Solid State Drive (SSD)
- Interface: SATA-6GBPS
Technical Information for SATA 6GBPS SSD
- Storage Capacity: 1.92TB
- Endurance (DWPD): 1
- Height: 7 MM
- Wireless LAN: No
- Drive Interface Standard: SATA/600
- Form Factor: 3.5-inch LFF
- Plug Type: Hot Pluggable
- Carrier Type: Low Profile Carrier (LPC)
- NAND Flash Memory Type: Triple-Level Cell (TLC)
- Workload Type: Read Intensive
- Features: Digitally Signed Firmware (DS), Power Loss Protection
- Bundled with: HPE Low Profile Carrier
Performance of 1.92TB Solid State Drive
- 30 Days Writes: 3500
- Endurance DWPD: 1.00
- Drive Transfer Rate: 600 MBps (external)
- MAX Seq. Reads Throughput (MiB/s): 520
- MAX Seq. Writes Throughput (MiB/s): 495
- Random Read Average Latency uSec (4KiB, Q1): 125
- Random Write Average Latency uSec (4KiB, Q1): 41
- Random Read IOPS (4KiB, Q=16): 64000
- Random Write IOPS (4KiB, Q=16): 24000
- Max Random Read IOPS (4KiB): 62000@Q32
- Max Random Write IOPS (4KiB): 25000@Q32
Power Consumption For LFF SSD
- Idle Time: 1.50 Watt
- Random Read: 3.10 Watt
- Random Write: 3.10 Watt
- Sequential Read: 5.40 Watt
- Sequential Write: 6.80 Watt
- Random Read/Write: 3.10 Watt
- Power MAX: 6.80 Watt
- Operating Power Consumption: 6.80W
Miscellaneous
- Device Supported: Server
- Environmentally Friendly: Yes
- Environmental Certification: WEEE
Compatibility Information
- Designed for
- HPE ProLiant DL Series: DL160 (Gen10) DL325 (Gen10)
- HPE ProLiant ML Series: ML110 (Gen10) ML350 (Gen10)
- Specifically designed for HPE ProLiant servers with 3.5-inch Low Profile Carrier (LPC) Drive Bays
In summary, the HPE P04501-B21 1.92TB digitally signed SATA SSD represents a high-capacity, high-performance storage solution specifically tailored for server applications. With its robust features, including a large storage capacity, optimized firmware, and data integrity measures, this SSD stands as a reliable option for organizations seeking efficient and secure storage solutions within their server infrastructures. Its compatibility, reliability, and performance make it a compelling choice for modern data-driven enterprises.
