Description
Digitally Signed Firmware
Digital signing of firmware ensures the authenticity and integrity of the firmware code running on HPE P04537-K21 3.2TB SAS-12GBPS SSD. This helps to prevent malicious firmware from being installed and executed on the device, which can compromise the data stored on the SSD and the overall system security.
Digital signatures are verified by the host system before the firmware is executed, ensuring that only trusted and validated firmware is run on the SSD.
To use digitally signed firmware on HPE P04537-K21 3.2TB SAS-12GBPS SSD, make sure your server and firmware have the necessary support for digital signature verification and that you are using the latest firmware release from HPE.
High-Speed Data Transfer
High-speed data transfer refers to the ability to quickly transfer large amounts of data between storage devices and the computer system. The HPE P04537-K21 3.2TB SAS-12GBPS SSD is capable of high-speed data transfer due to its use of the SAS (Serial Attached SCSI) interface and 12Gbps data transfer rate.
The SAS interface allows for high-speed, reliable communication between the SSD and the server, enabling fast data transfer. The 12Gbps data transfer rate allows for fast data transfer speeds, enabling high-speed access to data stored on the SSD. This results in improved system performance and reduced latency in accessing data, making the HPE P04537-K21 3.2TB SAS-12GBPS SSD ideal for high-performance computing applications that require fast and reliable data access.
Enhanced Reliability and Durability
The HPE P04537-K21 3.2TB SAS-12GBPS SSD provides enhanced reliability and durability due to the following features:
- Endurance: The SSD is designed for high write endurance, meaning it can handle a large amount of data writes over its lifespan.
- Error Correction: Advanced error correction technologies are used to ensure data accuracy and integrity.
- Power Loss Protection: The SSD includes a power-loss protection feature, which helps prevent data loss in the event of a power outage.
- Redundant Array of Independent NAND (RAIN): RAIN technology protects against NAND flash failures, improving overall reliability and durability.
- Wear leveling: The SSD uses wear leveling algorithms to distribute data writes evenly across the flash memory, reducing the risk of failure in a single block.
- Reliability Monitoring: The SSD includes hardware-based reliability monitoring, which helps predict and prevent potential failures.
- SAS Connectivity: The SSD uses SAS connectivity, which is a reliable and high-speed interface for storage devices.
These features combined make the HPE P04537-K21 3.2TB SAS-12GBPS SSD a durable and reliable storage solution for demanding enterprise applications.

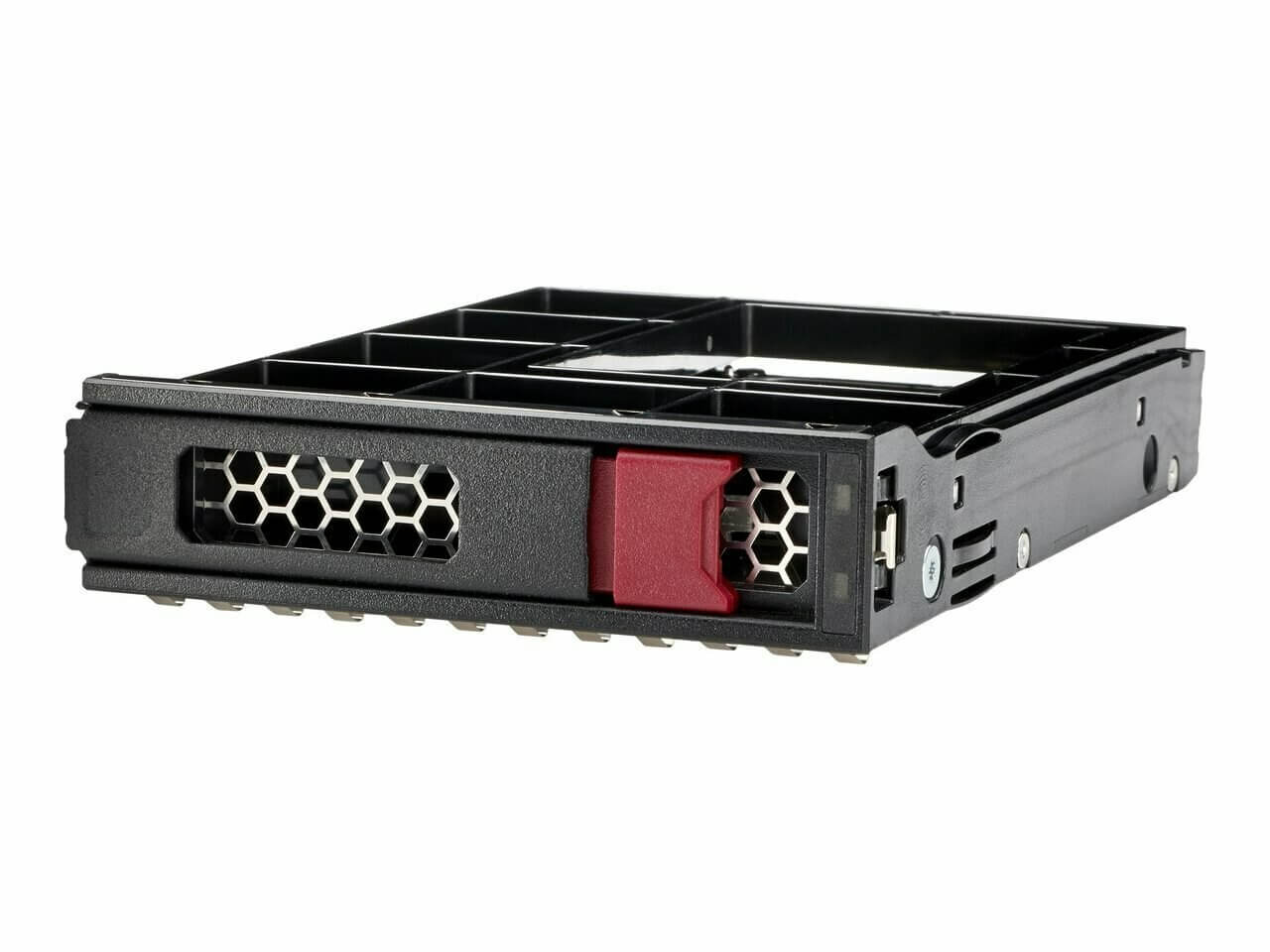

Detail Description
- Manufacturer: HPE
- MPN: P04537-K21
- Type: Solid State Drive (SSD)
- SSD-Type: SAS-12GBPS
- Spare Part Number: P06582-001
- Model Number: MO003200JWTBU
- Assembly Number: P04174-004
- SKU: P04537-K21
Key Features
- Storage Capacity: 3.2TB
- Interface: SAS-12GBPS
- Form Factor: 2.5-inch SFF
- NAND Flash Memory Type: Triple-level cell (TLC)
- Connectivity: Dual Port
- Plug Type: Hot Pluggable
- Carrier Type: Low Profile Converter (LPC)
- Workload Type: Mixed-Use
- Bundled with: HPE Low Profile Converter (LPC)
- Features: Digitally Signed Firmware
Performance
- Lifetime Writes: 17520
- Endurance DWPD (Drive Writes Per Day): 3
- Drive Transfer Rate: 1.2 GBps (external)
- MAX Seq. Reads Throughput (MiB/s): 1075
- MAX Seq. Writes Throughput (MiB/s): 1025
- Random Read Average Latency uSec (4KiB, Q1): 120
- Random Write Average Latency uSec (4KiB, Q1): 50
- Random Read IOPS (4KiB, Q=16): 125000
- Random Write IOPS (4KiB, Q=16): 93000
- MAX Random Read IOPS (4KiB): 185000@Q32
- MAX Random Write IOPS (4KiB): 93000@Q4
- 4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 120000
- 4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-2: 107500
Power Consumption
- Power Idle Time: 4.22 Watt
- Power Random Read: 4.74 Watt
- Power Random Write: 4.74 Watt
- Power Sequential Read: 7.75 Watt
- Power Sequential Write: 9.50 Watt
- Power Random R/W: 4.74 Watt
Product Dimensions & Weight
- Height: 0.63 inch
- Width: 3.10 inch
- Depth: 5.45 inch
- Weight: 1.50 lbs
Compatibility
- HPE ProLiant DL Series: DL160 Gen9 (3.5 inch), DL160 Gen9 Base (3.5 inch), DL160 Gen9 Entry (3.5 inch), DL160 Gen9 Performance (3.5 inch), DL20 Gen9 Solution (2.5 inch), DL360 Gen10 (2.5 inch), DL360 Gen10 Base (2.5 inch), DL360 Gen10 Entry (2.5 inch), DL360 Gen10 High Performance (2.5 inch), DL360 Gen10 Low (2.5 inch), DL360 Gen10 Performance (2.5 inch), DL360 Gen10 Solution (2.5 inch), DL385 Gen10 (2.5 inch), DL385 Gen10 Base (2.5 inch), DL385 Gen10 Entry (2.5 inch), DL385 Gen10 High-Performance (2.5 inch), DL385 Gen10 Performance (2.5 inch), DL385 Gen10 Solution (2.5 inch), DL560 Gen10 (2.5 inch), DL560 Gen10 Base (2.5 inch), DL560 Gen10 Entry (2.5 inch), DL560 Gen10 Performance (2.5 inch), DL580 Gen10 (2.5 inch), DL580 Gen10 Base (2.5 inch), DL580 Gen10 Entry (2.5 inch), DL580 Gen10 Performance (2.5 inch), DL580 Gen9 (3.5 inch), DL580 Gen9 Base (3.5 inch), DL580 Gen9 Database (3.5 inch), DL580 Gen9 High Performance (3.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (3.5 inch) Servers
- HPE ProLiant ML Series: ML110 Gen10 Solution (2.5 inch), ML110 Gen9 (3.5 inch), ML110 Gen9 Base (3.5 inch), ML110 Gen9 Entry (3.5 inch), ML350 Gen10 (2.5 inch), ML350 Gen10 Base (2.5 inch), ML350 Gen10 Entry (2.5 inch), ML350 Gen10 Performance (2.5 inch), ML350 Gen10 Solution (2.5 inch), ML350 Gen10 Sub-Entry (2.5 inch) Servers
- HPE ProLiant XL Series: XL170r Gen9 (3.5 inch), XL450 Gen10 (2.5 inch) Servers
