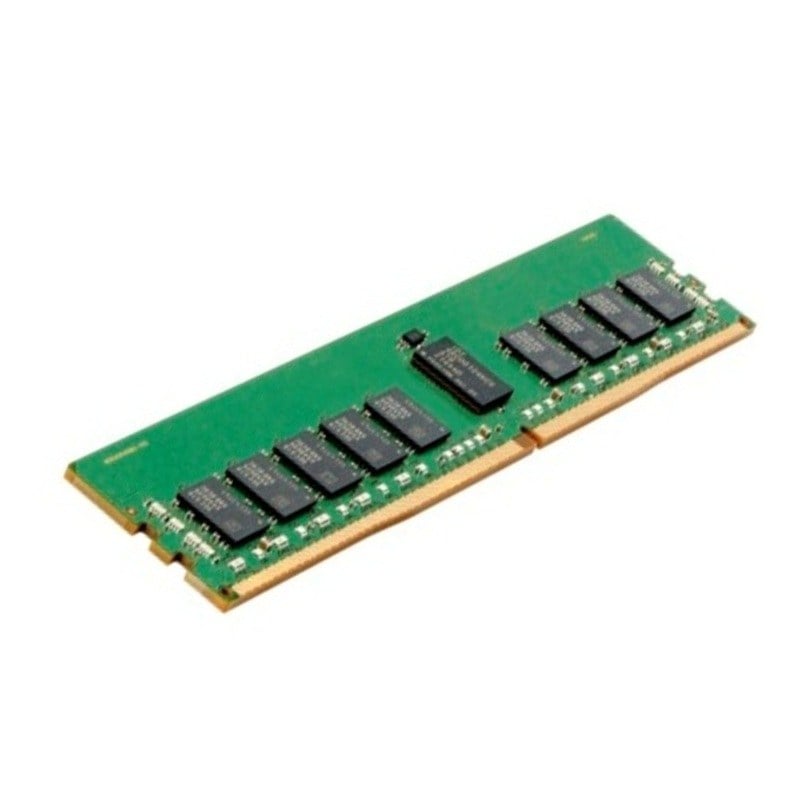

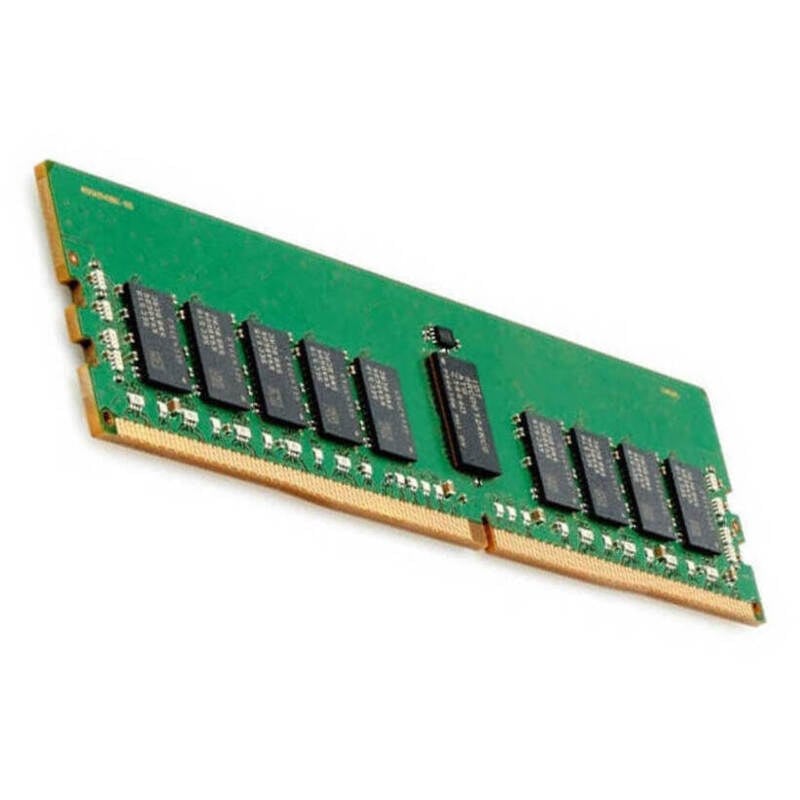

Overview of HPE 64GB 2933MHZ DDR4 RAM
HPE 64GB 2933MHZ DDR4 RAM P06190-001 is a high-performance RAM module manufactured by Hewlett Packard Enterprise (HPE). It has a capacity of 64GB, allowing it to store and quickly access large amounts of data. The RAM operates at a speed of 2933 MHz, which means it can transfer data at a rate of 2933 million times per second. It uses PC4-23400 memory technology, which is a type of DDR4 SDRAM (Double Data Rate 4 Synchronous Dynamic Random-Access Memory). DDR4 is the latest and fastest type of RAM technology currently available, and it is designed to improve system performance and energy efficiency.
The module has 288 pins and a CAS latency of 21. CAS latency refers to the number of clock cycles it takes for the RAM to access a specific location in memory after receiving a request. Lower CAS latency generally results in faster system performance.
This type of RAM is typically used in servers, high-performance workstations, and other systems that require large amounts of memory and fast data transfer speeds. It can be used to upgrade or expand the memory of a system, allowing for more efficient multitasking and improved overall system performance.
Energy Efficiency of DDR4 Technology
DDR4 technology, which is used in the HPE 64GB 2933MHZ DDR4 RAM P06190-001, is known for its energy efficiency compared to previous generations of RAM technology.
One of the key ways DDR4 technology improves energy efficiency is by reducing the voltage required to operate. The standard voltage for DDR4 RAM is 1.2V, which is a significant reduction from the 1.5V required by DDR3 RAM. This reduction in voltage results in lower power consumption and less heat generated by the RAM module.
Another way DDR4 technology improves energy efficiency is by implementing features such as temperature-sensitive self-refresh and power-down modes. These features allow the RAM to adjust its power consumption based on the temperature and usage of the system, resulting in even lower power consumption and longer battery life in mobile devices.
Additionally, the P06190-001 HPE 64GB 2933MHZ PC4-23400 Cl21 288 Pin DDR4 SDRAM Ram also has a low CAS latency of 21 which helps in energy efficiency.
Installation and Setup Instructions
Installing and setting up the HPE 64GB 2933MHZ DDR4 RAM P06190-001 module requires some technical knowledge and should be done with care to avoid damaging the module or the system. Here are the general steps for installing the RAM module:
- Turn off the computer and unplug it from the power outlet.
- Open the computer case by removing the screws or thumbscrews that hold it in place.
- Locate the RAM slots on the motherboard. They are usually located near the CPU and are labeled “DIMM” or “RAM.”
- Carefully remove any existing RAM modules from the slots by releasing the tabs on the sides of the module and gently pulling it out.
- Carefully align the notches on the P06190-001 HPE 64GB 2933MHZ PC4-23400 Cl21 288 Pin DDR4 SDRAM Ram module with the notches on the RAM slot and gently push the module down into the slot until the tabs on the sides of the module click into place.
- Close the computer case and reattach the screws or thumbscrews that hold it in place.
- Plug the computer back in and turn it on.
- Enter the BIOS or UEFI settings and check that the new RAM module is recognized and that the system is set to use the maximum amount of RAM available.
- Save the settings and exit the BIOS or UEFI.
It’s important to note that the steps may vary depending on the specific model of your computer or motherboard. Also, please check the system compatibility and maximum RAM capacity before installing the RAM. If you are not familiar with computer hardware or are unsure about any of the steps, it’s best to consult the motherboard or computer’s manual or seek assistance from a professional.
General Information
- Brand Name: HPE
- MPN: P06190-001
- Type: Memory (RAM)
- RAM Type: PC4-23400
- Product Name: HPE 64GB 1X64GB Quad Rank X4 DDR4-2933 Cas-21-21-21 Load Reduced Smart Memory Kit
- Product Type: Ram Module
- Option Part Number: P00926-B21
- SKU: P06190-001
- Assembly Number: P03054-091
Technical Information
- Storage Capacity: 64GB
- Memory Type: DDR4 SDRAM DIMM 288-PIN
- Number Of Modules: 1 X 64GB
- Memory Speed: 2933MHZ Pc4-23400
- Features: Quad Rank X4, Load-Reduced Dimm (Lrdimm)
- Voltage: 1.2 V
- Latency Timings: Cl21 (21-21-21)
- Upgrade Type: System Specific
Physical Characteristics
- Dimensions (W X D X H) : 8.89 X 19.81 X 1.91 Cm (3.5 X 7.8 X 0.75 In)
- Weight: 0.45 Kg (1 Lb)
Compatibility Information
- HPE ProLiant BL Series: BL460c Gen10
- HPE ProLiant DL Series: DL380 Gen10, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 High Performance, DL380 Gen10 Performance, DL380 Gen10 SMB, DL380 Gen10 Solution, DL560 Gen10, DL560 Gen10 Base, DL560 Gen10 Entry, DL560 Gen10 Performance, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance
- HPE ProLiant ML Series: ML350 Gen10, ML350 Gen10 Base, ML350 Gen10 Entry, ML350 Gen10 High Performance, ML350 Gen10 Performance, ML350 Gen10 Solution, ML350 Gen10 Sub-Entry
- HPE Proliant Apollo 2000 Xl170r/Xl190r/Apollo 4200/Apollo 4500 Xl450/Apollo 6500 Servers
