Description
Product Overview
HPE P06819-B21 is a processor kit for the HPE BL460C Gen10 server that features the Intel Xeon Gold 6242 processor. The processor comes with 16 cores, a base clock speed of 2.8GHz, and a maximum turbo frequency of 3.9GHz. The processor supports a maximum memory capacity of 1.5TB and has a thermal design power of 150W. In this article, we will explain the features of the HPE P06819-B21 in detail and its significance for the BL460C Gen10 server.

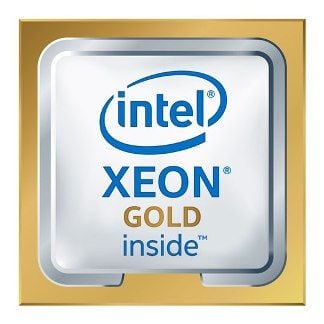

Intel Xeon Gold 6242 Processor
The Intel Xeon Gold 6242 processor is a server-grade processor designed for data center applications that require high performance and reliability. It is part of the Intel Xeon Scalable Processor family, which is built on a 14nm manufacturing process. The processor features 16 cores and 32 threads, which allow it to execute up to 32 simultaneous instructions. This feature is important for servers that need to handle multiple workloads at the same time, such as virtualization and database servers.
Clock Speed and Turbo Boost
The Intel Xeon Gold 6242 processor has a base clock speed of 2.8GHz, which is the speed at which the processor operates under normal conditions. However, the processor can also boost its clock speed to a maximum of 3.9GHz when necessary. This feature is known as Turbo Boost, and it allows the processor to deliver more performance when it is needed.
Smart Cache
The processor has a 22MB Smart Cache, which is a high-speed memory that stores frequently accessed data. The Smart Cache is split into two parts – the L2 cache and the L3 cache. The L2 cache is dedicated to each core and stores data that is frequently used by that core. The L3 cache is shared among all the cores and stores data that is frequently accessed by the entire processor. The Smart Cache improves performance by reducing the time it takes for the processor to access frequently used data.
Memory Support
The Intel Xeon Gold 6242 processor supports DDR4 memory, which is the latest generation of memory technology. The processor supports a maximum memory capacity of 1.5TB, which is important for servers that need to handle large amounts of data. The processor also supports memory speeds of up to 2933MHz, which allows it to process data more quickly.
Thermal Design Power
The thermal design power (TDP) of the Intel Xeon Gold 6242 processor is 150W. This is the amount of power that the processor is designed to consume under normal operating conditions. The TDP is an important consideration when selecting a processor for a server, as it determines the amount of heat that the processor will generate. Servers require efficient cooling systems to dissipate the heat generated by the processor to prevent overheating and damage to the system.
Significance for BL460C Gen10 Server
The HPE P06819-B21 processor kit is designed specifically for the HPE BL460C Gen10 server. The BL460C Gen10 is a blade server that is designed to provide high performance and scalability in a compact form factor. The server is designed to be used in a variety of data center environments, including virtualization and cloud computing. The Intel Xeon Gold 6242 processor is an ideal choice for the BL460C Gen10 server, as it provides the high performance and reliability that are required for these applications.
In summary, the HPE P06819-B21 processor kit featuring the Intel Xeon Gold 6242 processor is a high-performance option for the HPE BL460C Gen10 server. The processor features 16 cores, a base clock speed of 2.8
Product Features
- Brand : Hewlett Packard Enterprise(HPE)
- MPN: P06819-B21
- Type : Processor
- SKU: P06819-B21
- Sub-Type : Intel Xeon 16 Core
Technical Information
- Processor Core : 16 Core
- Clock Speed : 2.80GHz
- Max Turbo Frequency : 3.90GHz
- Ultrapath Interconnect UPI Speed : 10.4 GT/S
- No. Of UPI Links : 3
- Instruction Set : 64-Bit
- Instruction Set Extensions : Intel® Avx-512
Cache Memory Detail
- Smart Cache : 22MB
- Lithography : 14NM
- Max Thermal Design Power TDP : 150W
- Compatible Processor Socket : Fclga3647
Memory Specifications
- Max Memory Size Dependent On Memory Type : 1TB
- Memory Types : DDR4-2933
- Maximum Memory Speed : 2933MHz
- Max No. Of Memory Channels : 6
- Ecc Memory Supported : Yes
Dimensions & Weight
- Width: 9.8 inch
- Depth : 8.5 inch
- Height : 2.5 inch
- Weight : 0.999 lbs
