Description
More Feature

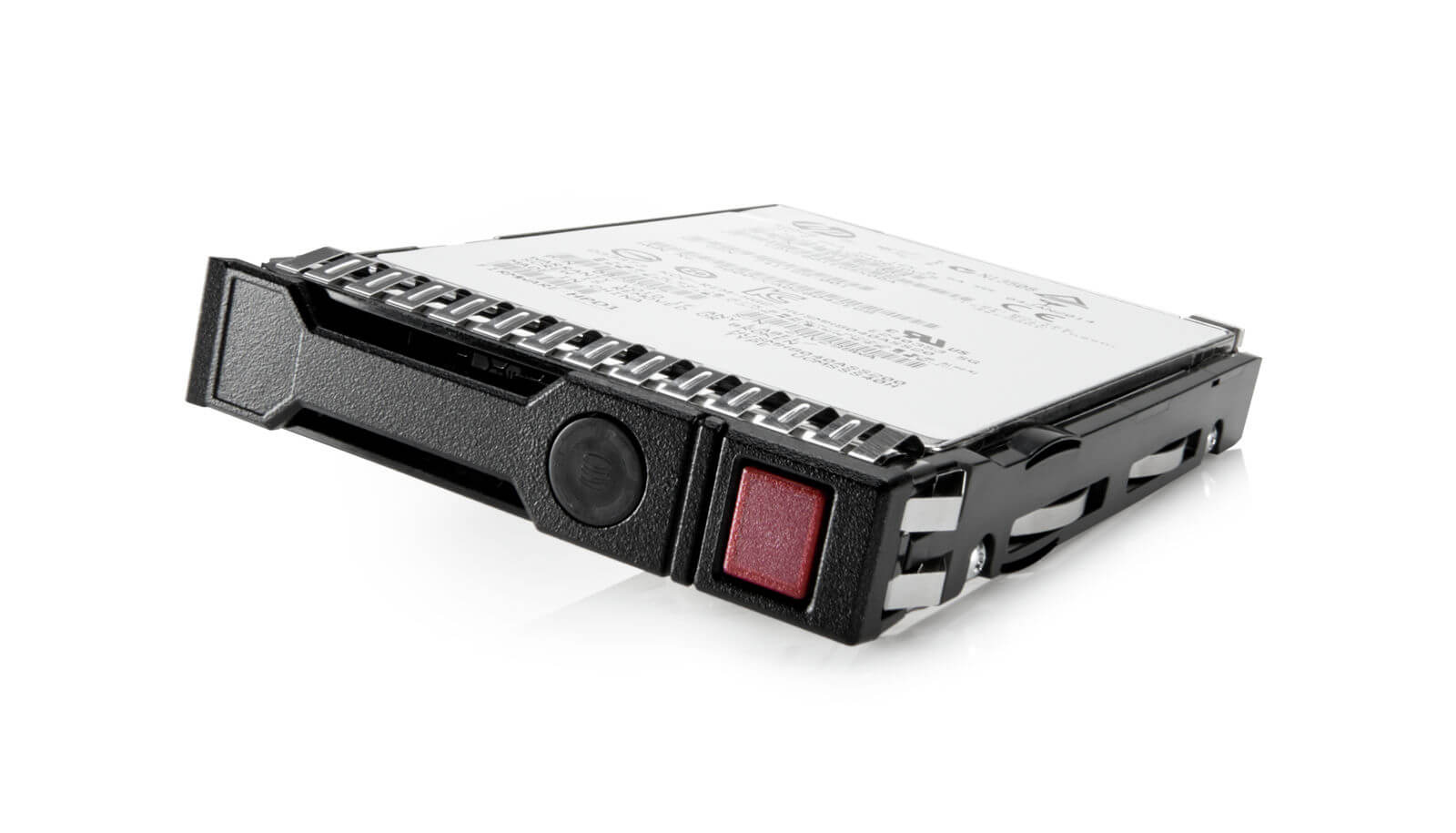

- P09165-B21 HPE 14TB 7.2K RPM SATA 6GBPS Midline LFF 3.5inch LP 512e Hard Drive is a large-capacity hard drive from HPE (Hewlett Packard Enterprise) designed for use in servers and other high-performance computing systems. The drive has a storage capacity of 14 terabytes and uses the SATA interface with a 6 Gbps data transfer rate. The drive spins at 7200 RPM and has a 3.5-inch form factor and LFF (Large Form Factor) which is a standard size for internal hard drives. It is a Midline hard drive which is a tier between Entry level and High-end drive, it is generally more reliable, durable and have higher read-write performance than entry level hard drives.
- It is also 512e format, 512e hard drives are designed to use the Advanced Format, which increases the physical sector size on a hard drive from 512 bytes to 4096 bytes. This allows for larger capacities and improved error correction capabilities.
- This drive is compatible with HPE servers that support 3.5-inch SATA hard drives.
Device Reliability
- The SATA 6Gbps Midline LFF (Large Form Factor) 3.5-inch LP (Low Profile) 512e Hard Drive is a high-capacity and high-reliability hard drive designed for use in enterprise-level storage systems. It has a storage capacity of 14 terabytes, a rotation speed of 7,200 RPM, and uses the SATA 6Gbps interface. The LFF designation indicates that it is designed to be used in larger drive bays, while the “LP” indicates that it is a low-profile drive. The “512e” in the name denotes that it uses the 512-byte emulation format, which allows it to be used in systems that were designed for 512-byte sector drives, while still providing the performance benefits of using larger 4K sectors.
Drive Compatibility
- The HPE 14TB 7.2K RPM SATA 6GBPS Midline LFF 3.5inch LP 512e Hard Drive is compatible with a variety of systems that support the SATA interface and have a 3.5-inch drive bay. It is suitable for use in enterprise-level systems, such as servers and storage arrays, where high-capacity storage is needed.
- This hard drive can be used in HPE ProLiant servers and storage systems that support the SATA interface, including the DL, ML, and SL series servers, as well as the MSA and P2000 storage arrays. Additionally, it can be used in other systems that support the SATA interface and have a 3.5-inch drive bay.
- It is important to check with the manufacturer for specific compatibility details and for any additional requirements or considerations for using this drive in a particular system. Additionally, this hard drive uses 512e (512-byte emulation) sector technology which makes it compatible with legacy systems, but it’s important to check if the system supports it.
General Information about the HPE P09165-B21
- Brand Name : HPE
- Model Number or SKU# P09165-B21
- Model Number: MB014000GWTFF
- Assembly Number: P04386-002
- Type : Hard Drive
- HDD-Type : 14TB 7200 RPM
Technical Information
- Capacity : 14 TB
- Form Factor : 3.5inch LFF
- Interface : SATA 6GB/S
- Data Transfer Rate : 600 MBPS
- Spindle Speed : 7200 RPM
- Features : Advanced Format 512E, Filled With Helium, Digitally Signed Firmware
- Bundled With : Low Profile Carrier
Dimension and Weight
- Width : 4 Inch
- Depth : 5.8 Inch
- Height : 1 Inch
- Weight : 1.52 Lbs
Environmental Parameters
- Min Operating Temperature : 50 °F
- Max Operating Temperature : 95 °F
Compatibility
HPE Apollo 4510 Gen10, 4510 Gen9 (3.5), 4530 (3.5), 4530 Gen9 ¦ HPE Proliant Ml30 Gen10 (3.5), Ml30 Gen10 Entry (3.5), Ml30 Gen10 Performance (3.5), Ml30 Gen10 Performance (3.5), Ml30 Gen10 Solution (3.5)
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
