Description
Robust Network Performance
comes with 1x 2nd Gen Intel Xeon Silver 10-core 4210 processor, which runs at a clock speed of 2.2 GHz.
This processor is designed for high-performance computing and is based on the Intel Xeon Scalable processor architecture. It has 10 physical cores and 20 threads, which means that it can handle up to 20 concurrent processing tasks. This makes it suitable for running demanding applications such as virtualization, database management, and high-performance computing.
The HPE Proliant ML350 Gen10 is designed for reliable and consistent performance. It comes with advanced features such as HPE SmartMemory, which improves performance and uptime by preventing data loss and downtime due to memory errors. It also features redundant power supplies and fans, which help ensure that the server stays up and running even in the event of a hardware failure.
Memory Capacity and Configuration Options
The HPE Proliant ML350 Gen10 Base Model server comes with 1x 2nd Gen Intel Xeon Silver 10-core 4210 processor, which has a base clock speed of 2.2 GHz. The server can support up to two of these processors, which would provide a total of 20 cores.
In terms of memory capacity, the server has 24 DIMM slots that can support up to 3 TB of DDR4 memory. The maximum memory speed depends on the processor configuration and ranges from 2133 MT/s to 2933 MT/s.
The server also has multiple storage configuration options. It has 8 SFF SAS/SATA/SSD drive bays, which can be expanded to 24 with additional drive cages. The server supports SAS/SATA/SSD/NVMe drives and has multiple RAID options available.
In terms of expansion slots, the server has 5 PCIe 3.0 slots (one x8, two x16, and two x4), one PCIe 3.0 dedicated slot for the HPE FlexibleLOM, and one PCIe 3.0 dedicated slot for the HPE Smart Array Controller.
The server also comes with multiple networking options, including two embedded 1 GbE ports and an optional HPE FlexibleLOM adapter for additional networking capabilities.
Power Efficiency and Management
The HPE ProLiant ML350 Gen10 Base Model server with 1x 2nd Gen Intel Xeon Silver 10-core 4210 processor is designed to deliver high-performance computing power while being power-efficient and manageable. Here are some of the power efficiency and management features of this server:
- Power supply: The server comes with a redundant 800W power supply, which is 94% efficient at 50% load. This means that the power supply converts 94% of the AC power input into DC power output, reducing the amount of power wasted as heat.
- Intelligent System Tuning: HPE’s Intelligent System Tuning (IST) technology dynamically optimizes server performance based on workload demands, improving server efficiency and reducing power consumption. IST leverages the power of the Intel Xeon Scalable processors to deliver better workload performance, faster response times, and improved power efficiency.
- Energy Star compliance: The HPE ProLiant ML350 Gen10 Base Model server is Energy Star certified, which means it meets strict energy efficiency guidelines set by the US Environmental Protection Agency (EPA). Energy Star certification ensures that the server is designed to consume less energy without compromising on performance.
- Power management features: The server comes with several power management features, such as power capping, power regulator, and power metering, which help to manage power usage and optimize energy consumption. These features allow administrators to set power limits, monitor power usage, and adjust power settings to balance performance and energy efficiency.
- Thermal management: The server is equipped with advanced thermal management features, such as a standard set of sensors that monitor temperature across the system, and a dynamic fan control mechanism that adjusts fan speed based on temperature changes, to ensure optimal cooling and reduce power consumption.

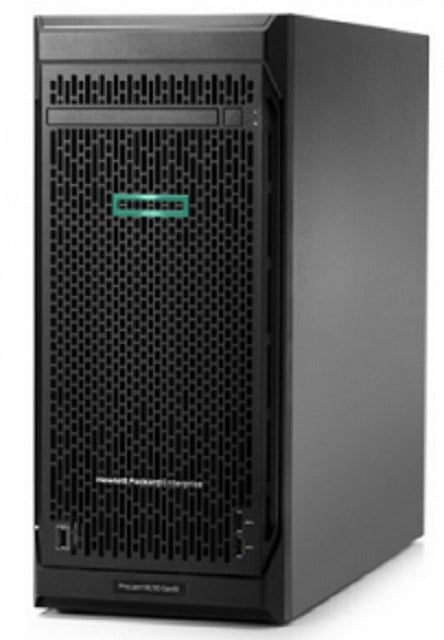

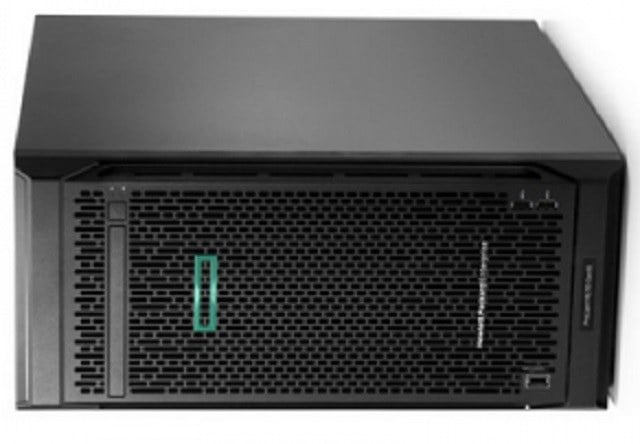

Product Information about this HPE P11051-001
- Manufacturer : Hewlett Packard Enterprise
- Manufacturer Part Number : P11051-001
- Product Name : Proliant Ml350 Gen10 – 4u Tower Server ( Base Model)
Technical Information for 10-core 4210 / 2.2 GHz Server
- Cpu : 2nd Gen Intel Xeon Silver 4210 / 2.2 GHz
- Max Turbo Speed : 3.2 GHz
- Number Of Cores : 10-core
- Cpu Qty : 1
- Max Cpu Qty : 2
- Cpu Upgradability : Upgradable
- Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
- Cpu Socket : Fclga3647 Socket
- Chipset Type : Intel C622
- Cache Memory :
- Installed Size : L3 Cache – 13.75 Mb
- Cache Per Processor : 13.75 Mb
Memory
- Installed Size : 16 Gb / 768 Gb (max)
- Technology : Ddr4 Sdram – Advanced Ecc
- Effective Memory Speed : 2400 Mhz
- Rated Memory Speed : 2400 Mhz
- Form Factor : Dimm 288-pin
- Slots : 24 (total) / 23 (empty)
- Features : Registered, Online Spare Memory, Hpe Smartmemory
- Configuration Features : 1 X 16 Gb
- Ram Supported : Pc4-21300 – 3 Tb Load-reduced ¦ Pc4-21300 – 768 Gb Registered
Storage
- Hard Drive : No Hdd
- Optical Drive : None
Storage Controllers
- Type : 1 X Raid – Pcie 3.0 X8
- Controller Interface Type : Sata 6gb/s / Sas 12gb/s
- Storage Controller Name : Hpe Smart Array P408i-a
- Channel Qty : 8
- Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
- Buffer Size : 2 GB
Display & Graphics Controllers
- Video Memory : 16 Mb
- Video Interfaces : Vga, Displayport
Network & Communication
- Ethernet Ports : 4 X Gigabit Ethernet
- Ethernet Controller : Hpe 369i
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp
- Remote Management Controller : Integrated Lights-out Standard
- Features : Wake On Lan (wol), Acpi Support, Pxe Support
Expansion/ Connectivity
- Expansion Bays Total (free) :
- 8 (total) / 8 (free) X Hot-swap 2.5 Sff
- Expansion Slots Total (free) :
- 2 (total) / 2 (free) X Pcie 3.0 X8 – Full-length, Full-height (x4 Mode)
- 4 (total) / 4 (free) X Pcie 3.0 X16 – Full-length, Full-height
- 1 (total) / 1 (free) X Microsd Card (internal)
- 2 (total) / 2 (free) X Pcie 3.0 X8 – Full-length, Full-height
- Interfaces & Ports :
- 1 X Vga
- 1 X Serial
- 4 X Lan (gigabit Ethernet)
- 1 X Hp Ilo
- 5 X Usb 3.0 (2 Front, 2 Rear, 1 Internal)
- 1 X Usb 2.0 (1 Internal)
- 1 X Hp Ilo – Type A (1 In Front)
Miscellaneous
- Included Accessories :
- 6 Fan Modules
- Theft/intrusion Protection :
- Security Lock Slot (cable Lock Sold Separately)
- Security Slot Type :
- Kensington Security Slot
- Compliant Standards :
- Tls V1.2, Ashrae Class A4, Ashrae Class A3, Acpi 6.1
Power
- Device Type : Power Supply – Hot-plug
- Power Redundancy : Optional
- Power Redundancy Scheme : 1+1 (with Optional Power Supply)
- Installed Qty : 1
- Max Supported Qty : 2
- Nominal Voltage : Ac 120/230 V (50/60 Hz)
- Power Provided : 800 Watt
- 80 Plus Certification : 80 Plus Platinum
Dimensions & Weight
- Width : 6.9 In
- Depth : 25.5 In
- Height : 18.2 In
- Weight : 46.3 Lbs
