Description
Easy Integration into Existing IT Infrastructure

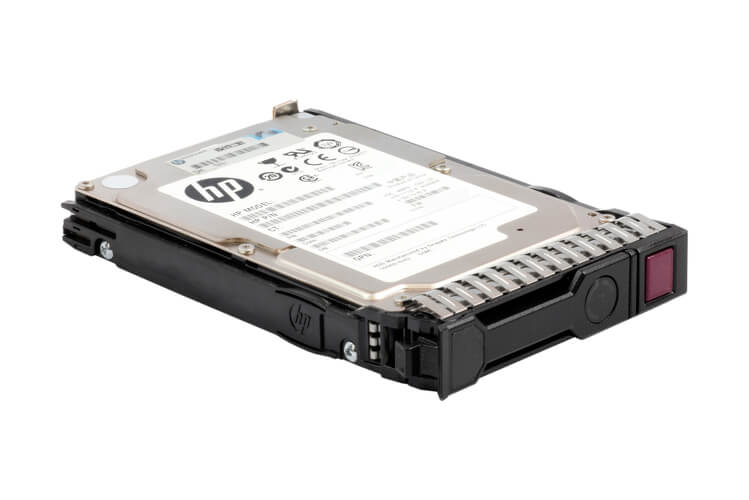

The HPE P13676-X21 960GB SFF NVMe PCIE Read Intensive SSD is designed for easy integration into existing IT infrastructures.
One of the key features that makes this drive easy to integrate is its use of the NVMe interface. NVMe is a widely adopted standard in the industry, and many modern servers and storage systems are designed to support NVMe drives. This means that you can simply plug the drive into your existing infrastructure and start using it without any additional software or hardware modifications.
The SFF form factor of the drive also makes it easy to integrate into existing IT infrastructures. The compact size of the drive makes it easy to fit into tight spaces, such as blade servers or dense storage arrays. This means you can add more storage capacity to your system without sacrificing valuable space.
In terms of compatibility, the P13676-X21 is designed to be compatible with a wide range of HPE servers and storage systems. This means you can easily add the drive to your existing infrastructure without having to worry about compatibility issues.
Improved Performance and Latency
The HPE P13676-X21 960GB SFF NVMe PCIE Read Intensive SSD is designed to provide improved performance and reduced latency compared to traditional hard disk drives (HDD) and SATA-based solid-state drives (SSD). The NVMe interface, combined with the read-intensive design of the drive, provides faster data access and processing speeds, leading to reduced latency and improved performance.
NVMe, short for Non-Volatile Memory Express, is a high-performance, optimized protocol that allows for faster communication between the drive and the host system. This results in lower latency and improved overall performance, making the HPE P13676-X21 SSD an ideal solution for applications that require high levels of data access and processing.
The read-intensive design of the drive further enhances performance by focusing on read-oriented workloads, such as those commonly found in read-intensive applications, like data warehousing and analytics. This enables the drive to perform at a higher level and deliver faster response times, leading to improved overall performance and reduced latency.
Robust Error Correction and Data Recovery
The HPE P13676-X21 960GB SFF NVMe PCIE Read Intensive SSD is designed to provide robust error correction and data recovery capabilities. This helps to ensure that data is protected against errors and corruption, even in demanding, high-write-intensity applications.
One of the key features that enables this robust error correction is the use of advanced error correction algorithms. These algorithms help to detect and correct errors that may occur during data transfer or storage, ensuring that data remains intact and accessible.
In addition to error correction, the drive also includes data recovery capabilities. This means that in the event of a failure or data corruption, the drive can automatically recover lost data and restore it to its original state. This helps to minimize downtime and data loss, and ensures that data remains protected against unplanned outages and other disruptions.
By providing robust error correction and data recovery capabilities, the HPE P13676-X21 960GB SFF NVMe PCIE Read Intensive SSD helps to ensure the integrity and availability of data in high-write-intensity applications, making it an ideal choice for organizations looking for a high-performance, reliable storage solution.
General Information about this HPE P13676-X21
- Manufacturer: HPE
- Model Number or SKU# P13676-X21
- Product Type: Solid State Drive
- Interface: NVMe U.2 PCIe
Technical Information for PCI Express SSD
- Storage Capacity: 960GB
- Form Factor: 2.5 Inch SFF
- Connectivity: Single Port
- Plug Type: Hot Pluggable
- Workload Type: Read Intensive
- NAND Flash Memory Type: Triple-Level Cell (TLC)
- Carrier Type: Smart Carrier NVMe (SCN)
- Features: Digitally Signed Firmware (DS), x4 Lanes
- Bundled with: HPE Smart Carrier NVMe (SCN)
- Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
- Height: 15.00 mm (0.60 inch)
Performance of 960GB Solid State Drive
- Lifetime Writes: 2312
- Endurance DWPD (Drive Writes Per Day): 1.32
- Drive Transfer Rate: PCIe NVMe (external)
- MAX Seq. Reads Throughput (MiB/s): 3300
- MAX Seq. Writes Throughput (MiB/s): 650
- Random Read Average Latency uSec (4KiB,Q1): 100
- Random Write Average Latency uSec (4KiB,Q1): 32
- Random Read IOPS (4KiB, Q=16): 125000
- Random Write IOPS (4KiB, Q=16): 30000
- MAX Random Read IOPS (4KiB): 230000@Q256
- MAX Random Write IOPS (4KiB): 30000@Q256
Power Consumption
- Idle Time: 3.30 Watt
- Random Read: 5.38 Watt
- Random Write: 5.38 Watt
- Sequential Read: 7.66 Watt
- Sequential Write: 5.39 Watt
- Random Read/Write: 5.38 Watt
- Maximum: 7.66 Watt
Dimensions & Weight
- Height: 5.00 Inch
- Width: 7.00 Inch
- Depth: 9.00 Inch
- Weight: 1.10 Lbs
Compatibility
- HPE ProLiant DL Series: DL325 Gen10 (2.5 inch), DL325 Gen10 Base (2.5 inch), DL325 Gen10 Entry (2.5 inch), DL325 Gen10 Performance (2.5 inch), DL325 Gen10 SMB Solution (2.5 inch), DL325 Gen10 Solution (2.5 inch), DL360 Gen10 (2.5 inch), DL360 Gen10 All Flash Server for Datera (2.5 inch), DL360 Gen10 Entry (2.5 inch), DL360 Gen10 High Performance (2.5 inch), DL360 Gen10 Low (2.5 inch), DL360 Gen10 Network Choice (2.5 inch), DL360 Gen10 Performance (2.5 inch), DL360 Gen10 Premium (2.5 inch), DL360 Gen10 Remote Office Branch Office Server for Cohesity DataPlatform (2.5 inch), DL360 Gen10 SMB (2.5 inch), DL360 Gen10 SMB Network Choice (2.5 inch), DL360 Gen10 Solution (2.5 inch), DL380 Gen10 (2.5 inch), DL380 Gen10 All Flash Server for Datera (2.5 inch), DL380 Gen10 Base (2.5 inch), DL380 Gen10 Entry (2.5 inch), DL380 Gen10 Entry SMB (2.5 inch), DL380 Gen10 for Cohesity DataPlatform (2.5 inch), DL380 Gen10 High Performance (2.5 inch), DL380 Gen10 Hybrid Server for Datera (2.5 inch), DL380 Gen10 Network Choice (2.5 inch), DL380 Gen10 Network Choice for CTERA (2.5 inch), DL380 Gen10 Network Choice for SAP HANA Compute Block (2.5 inch), DL380 Gen10 NVMe All Flash Server for Datera (2.5 inch), DL380 Gen10 Performance (2.5 inch), DL380 Gen10 SMB (2.5 inch), DL380 Gen10 SMB Networking Choice (2.5 inch), DL380 Gen10 Solution (2.5 inch), DL388 Gen10 (2.5 inch), DL560 Gen10 (2.5 inch), DL560 Gen10 Base (2.5 inch), DL560 Gen10 Performance (2.5 inch), DL580 Gen10 (2.5 inch), DL580 Gen10 Base (2.5 inch), DL580 Gen10 Entry (2.5 inch), DL580 Gen10 Performance (2.5 inch)
- HPE Synergy Series: 480 Gen10 Base Compute Module (2.5 inch), 480 Gen10 Compute Module (2.5 inch), 480 Gen10 Entry Compute Module (2.5 inch), 480 Gen10 Performance Compute Module (2.5 inch), 480 Gen10 Premium Backplane Compute Module (2.5 inch), 480 Gen10 Standard BackPlane Compute Module (2.5 inch), 480 Gen10 w/o Drives Compute Module (2.5 inch), 660 Gen10 Base Compute Module (2.5 inch), 660 Gen10 Compute Block (2.5 inch), 660 Gen10 Compute Module (2.5 inch), 660 Gen10 Entry Compute Module (2.5 inch), 660 Gen10 Performance Compute Module (2.5 inch), 660 Gen10 Premium Compute Module (2.5 inch)
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
