Description
High-Speed Data Transfer and Backups

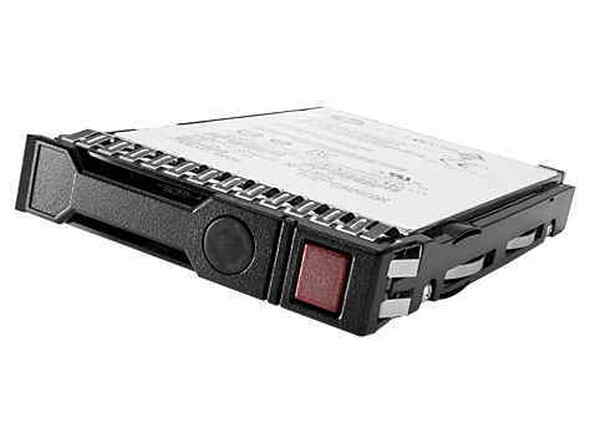

The HPE 3.2TB SAS-12GBPS Hot-Swap 2.5 inch SSD (P19917-X21) is designed for high-speed data transfer and can be used for fast backups of large amounts of data. The following are some of the key features that enable fast data transfer and backups:
- SAS-12Gb/s Interface: The P19917-X21 uses a 12Gb/s SAS interface, which provides fast data transfer speeds compared to other storage interfaces. This enables fast backups of large amounts of data and can help to reduce the time required to complete backup operations.
- High-Capacity Storage: With a capacity of 3.2TB, the P19917-X21 provides ample storage space for large backup jobs. This can help to minimize the number of backup drives required and reduce the time required to complete backup operations.
- Hot-Swap Support: The P19917-X21 is designed as a hot-swappable drive, allowing you to easily remove and replace the drive without having to shut down your system. This can be useful in the event of a drive failure, allowing you to quickly recover from a failure and restore normal operations.
- RAID Support: The P19917-X21 can be used as part of a storage system that uses RAID (Redundant Array of Independent Disks) for data protection and improved performance. This can help to protect your data in case of a drive failure and improve backup performance by allowing data to be striped across multiple drives.
Operating System and Driver Support
The HPE P19917-X21 3.2TB SAS-12GBPS Hot-Swap 2.5 inch SSD is designed to be used with a variety of operating systems and drivers that support SAS-based storage devices.
The drive is compatible with major operating systems such as Microsoft Windows, Linux, and VMware. For Windows, it can be used with Windows Server 2008 and later versions, as well as Windows 7 and later versions of the desktop operating system. For Linux, it is compatible with various distributions, including Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and Ubuntu.
The drive requires a SAS driver to be installed in order to be recognized by the operating system. The appropriate driver can be obtained from the HPE website, or from the operating system vendor.
Troubleshooting and Maintenance
The HPE 3.2TB SAS-12GBPS Hot-Swap 2.5 inch SSD (P19917-X21) is a high-performance and reliable storage device that is designed to operate in demanding enterprise environments. However, like all technology, it may experience issues from time to time. The following are some general steps that can be taken to troubleshoot and maintain the P19917-X21:
- Monitor Drive Health: You can monitor the health of the P19917-X21 using the built-in S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) features of the drive. This will allow you to detect potential issues early on and take appropriate action to resolve them.
- Replace Failed Drives: If a drive failure is detected, you should replace the failed drive as soon as possible to minimize downtime and prevent data loss. The hot-swap design of the P19917-X21 makes it easy to replace failed drives without having to shut down your system.
- Check System Logs: If you are experiencing issues with the P19917-X21, you should check the system logs for any relevant error messages or warning signs. These logs can provide valuable information that can be used to diagnose and resolve problems with the drive.
- Update Firmware: Regularly checking for and applying firmware updates can help to ensure that the P19917-X21 is running the latest software and that any known issues have been resolved.
- Regular Maintenance: Regular maintenance, such as checking for and cleaning any accumulated dust or debris, can help to ensure that the P19917-X21 operates reliably and performs optimally.
General Information
- Manufacturer: Hewlett Packard Enterprise (HPE)
- MPN: P19917-X21
- Spare Part Number: P20840-001
- Product Type: Solid State Drive
Technical Information
- Type: Hot-Swap Solid State Drive
- Capacity: 3.2 TB
- Form Factor: 2.5 Inch SFF
- SSD Type: SAS 12GBPS
- Carrier Type: Smart Carrier (SC)
- Plug Type: Hot Pluggable
- Workload Type: Mixed-Use
- Bundled With: HPE Smart Carrier
- Height: 15 mm
- Platform Supported: HPE ProLiant Rack/Tower/Blade System Servers/Synergy
Performance
- Lifetime Writes: 17121
- Endurance DWPD (Drive Writes Per Day): 3
- Drive Transfer Rate: 12 GBPS (External)
- Random Read IOPS (4KiB, Q=16): 110000
- Max Random Read IOPS (4KiB): 175000@Q256
- Random Write IOPS (4KiB, Q=16): 125000
- Max Random Write IOPS (4KiB): 125000@Q16
Power
- Power Consumption: 9.19 Watts
Dimensions & Weight
- Height: 0.63Inch
- Width: 3.10Inch
- Depth: 5.45Inch
- Weight: 1.50 lbs
Compatibility
- HPE ProLiant DL Series: DL20 Gen10 (2.5 Inch), DL20 Gen10 Entry (2.5 Inch), DL20 Gen10 Performance (2.5 Inch), DL20 Gen10 solution (2.5 Inch), DL325 Gen10 (2.5 Inch), DL325 Gen10 Base (2.5 Inch), DL325 Gen10 Entry (2.5 Inch), DL325 Gen10 Performance (2.5 Inch), DL325 Gen10 Plus (2.5 Inch), DL325 Gen10 SMB Solution (2.5 Inch), DL325 Gen10 Solution (2.5 Inch), DL360 Gen10 (2.5 Inch), DL360 Gen10 Entry (2.5 Inch), DL360 Gen10 High Performance (2.5 Inch), DL360 Gen10 Low (2.5 Inch), DL360 Gen10 Network Choice (2.5 Inch), DL360 Gen10 Performance (2.5 Inch), DL360 Gen10 Premium (2.5 Inch), DL360 Gen10 SMB (2.5 Inch), DL360 Gen10 SMB Network Choice (2.5 Inch), DL360 Gen10 Solution (2.5 Inch), DL380 Gen10 (2.5 Inch), DL380 Gen10 Entry (2.5 Inch), DL380 Gen10 Entry SMB (2.5 Inch), DL380 Gen10 for Cohesity Data Platform (2.5 Inch), DL380 Gen10 High Performance (2.5 Inch),
- DL380 Gen10 Network Choice (2.5 Inch), DL380 Gen10 NVMe All Flash Server for Datera (2.5 Inch), DL380 Gen10 Performance (2.5 Inch), DL380 Gen10 SMB (2.5 Inch), DL380 Gen10 SMB Networking Choice (2.5 Inch), DL380 Gen10 Solution (2.5 Inch), DL385 Gen10 (2.5 Inch), DL385 Gen10 Base (2.5 Inch), DL385 Gen10 Entry (2.5 Inch), DL385 Gen10 High-Performance (2.5 Inch), DL385 Gen10 Performance (2.5 Inch), DL385 Gen10 Plus (2.5 Inch), DL385 Gen10 Plus Entry (2.5 Inch), DL385 Gen10 Solution (2.5 Inch), DL580 Gen10 (2.5 Inch), DL580 Gen10 Base (2.5 Inch), DL580 Gen10 Entry (2.5 Inch), DL580 Gen10 Performance (2.5 Inch)
- HPE ProLiant ML Series: ML110 Gen10 (2.5 Inch), ML110 Gen10 Entry (2.5 Inch), ML110 Gen10 Performance (2.5 Inch), ML110 Gen10 Solution (2.5 Inch)
- HPE Synergy 480 Gen10 Base Compute Module (2.5 Inch), 480 Gen10 Compute Module (2.5 Inch), 480 Gen10 Entry Compute Module (2.5 Inch), 480 Gen10 Performance Compute Module (2.5 Inch), 480 Gen10 Premium Back Plane Compute Module (2.5 Inch), 480 Gen10 Standard Back Plane Compute Module (2.5 Inch), 480 Gen10 w/o Drives Compute Module (2.5 Inch), 660 Gen10 Base Compute Module (2.5 Inch), 660 Gen10 Compute Block (2.5 Inch), 660 Gen10 Compute Module (2.5 Inch), 660 Gen10 Entry Compute Module (2.5 Inch), 660 Gen10 Performance Compute Module (2.5 Inch), 660 Gen10 Premium Compute Module (2.5 Inch)
