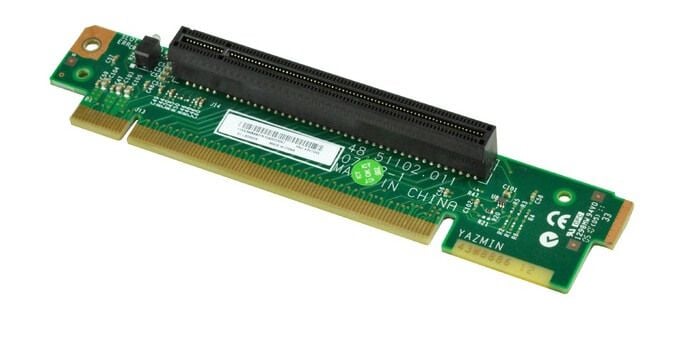

Overview of the 00D3423 IBM 1 PCI-E X16 Riser Card
The 00D3423 IBM 1 PCI-E X16 Riser Card is a hardware component designed for use with the IBM System x3550 M4 server. It is used to expand the server’s capacity to support additional peripheral devices such as graphics cards, network interface cards, and storage controllers. The card is capable of supporting a single PCI Express X16 interface and can be installed in any available PCI Express slot in the server’s motherboard.
Riser Card
A riser card is a printed circuit board that allows expansion cards to be mounted in a perpendicular orientation to the motherboard. This enables the installation of additional expansion cards in a system that has limited space for horizontal expansion cards. Riser cards are commonly used in server systems to increase their capacity to support additional peripheral devices.
Understanding PCI Express
PCI Express, commonly abbreviated as PCIe, is a high-speed serial bus interface used for connecting peripheral devices to a computer’s motherboard. It is the successor to the PCI and AGP interfaces and offers higher bandwidth and lower latency than its predecessors. PCIe devices can be installed in PCIe slots on the motherboard and are hot-swappable, which means they can be added or removed without the need to shut down the system.
PCI Express X16 Interface
The PCI Express X16 interface is a high-speed serial bus interface used for connecting graphics cards, network interface cards, and storage controllers to a computer’s motherboard. It offers a bandwidth of up to 16 Gbps, which is significantly higher than the bandwidth offered by other PCIe interfaces such as the X1 and X4 interfaces. The X16 interface is commonly used for high-performance applications that require large amounts of data to be transferred between the peripheral device and the motherboard.
IBM System x3550 M4 Server
The IBM System x3550 M4 is a rack-mountable server designed for use in enterprise environments. It is powered by Intel Xeon E5-2600 series processors and can support up to 768 GB of DDR3 memory. The server features multiple PCIe slots that can be used to expand its capacity to support additional peripheral devices.
Installation of the 00D3423 IBM 1 PCI-E X16 Riser Card
The 00D3423 IBM 1 PCI-E X16 Riser Card can be installed in any available PCIe slot in the IBM System x3550 M4 server’s motherboard. Before installing the card, it is important to ensure that the server is powered off and disconnected from the power source.
To install the riser card, follow these steps:
- Locate an available PCIe slot in the motherboard.
- Remove the retention screw from the slot.
- Insert the riser card into the slot, making sure that it is securely seated.
- Replace the retention screw to secure the card in place.
It is important to note that the 00D3423 IBM 1 PCI-E X16 Riser Card does not come with a bracket. A bracket will need to be purchased separately if one is required for the installation of the peripheral device.
Compatibility
The 00D3423 IBM 1 PCI-E X16 Riser Card is specifically designed for use with the IBM System x3550 M4 server. It may not be compatible with other server models or brands. Before purchasing the card, it is important to ensure that it is compatible with the server in which it will be installed.
Overall, the 00D3423 IBM 1 PCI-E X16 Riser Card is a hardware component designed to expand the capacity of the IBM System x3550 M4 server to support additional peripheral devices. It can be installed in any available PCIe slot on the server’s motherboard and is capable of supporting a single
General Information about the 00D3423 IBM Riser Card
- Manufacturer: IBM
- Model Number or SKU# 00D3423
- Sub-Type : PCI-X
- Product Type : Accessories
