Description

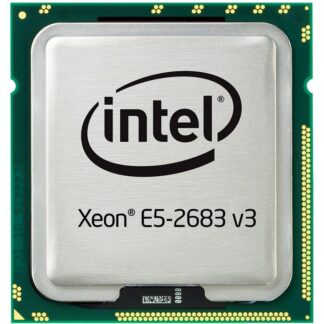

Product overview of the IBM 00KJ037
The IBM Intel Xeon E5-2683V3 Processor is a high-performance central processing unit designed for servers and workstations. The processor has 14 cores and a base clock speed of 2.0 GHz. It also features 35MB of L3 cache, a QPI speed of 9.6 GT/s, and a thermal design power (TDP) of 120 watts. This article will provide a detailed explanation of the various features and specifications of this processor.
Processor Architecture and Cores
The IBM Intel Xeon E5-2683V3 Processor is based on the Haswell microarchitecture and is built using a 22nm manufacturing process. The processor features 14 physical cores and 28 threads with Intel Hyper-Threading Technology, allowing it to handle multiple tasks simultaneously. The processor also supports Intel Virtualization Technology, which enables the creation of multiple virtual machines on a single server.
Clock Speed and Cache
The processor has a base clock speed of 2.0 GHz, but it also supports Intel Turbo Boost Technology 2.0, which allows the processor to increase its clock speed to up to 3.0 GHz when necessary. The processor features 35MB of L3 cache, which provides quick access to frequently used data, improving performance and reducing latency.
QPI Speed and Socket
The IBM Intel Xeon E5-2683V3 Processor has a QPI speed of 9.6 GT/s, which allows for high-speed communication between the processor and other components of the system, such as memory and I/O devices. The processor is designed to be compatible with the FCLGA2011-3 socket, which is a server-grade socket that supports quad-channel DDR4 memory and PCI Express 3.0.
Thermal Design Power (TDP)
The processor has a thermal design power (TDP) of 120 watts, which is the maximum amount of power that the processor is designed to consume. The TDP is an important specification to consider when selecting a processor because it affects the overall power consumption and cooling requirements of the system.
Applications
The IBM Intel Xeon E5-2683V3 Processor is designed for use in high-performance computing environments such as data centers, scientific research, and engineering. The processor is optimized for applications that require intensive processing power, such as simulations, data analysis, and machine learning.
Finally, The IBM Intel Xeon E5-2683V3 Processor is a high-performance central processing unit designed for use in servers and workstations. The processor features 14 cores, a base clock speed of 2.0 GHz, 35MB of L3 cache, and a QPI speed of 9.6 GT/s. The processor is designed for use in high-performance computing environments and is optimized for applications that require intensive processing power. The processor is compatible with the FCLGA2011-3 socket and has a TDP of 120 watts.
General Information
- Product Manufacturer : IBM
- Manufacturer Part Number : 00KJ037
- Type : Processor
- Sub-Type : Intel Xeon 14 Core
Technical Information
- Processor Core : 14-Core
- Clock Speed : 2.0GHz
- Max Turbo Frequency : 3.0GHz
- Quick Path Interconnect Qpi Speed : 9.6GT/S
- Instruction Set : 64-Bit
- Instruction Set Extensions : AVX 2.0
Cache Memory Detail
- L3 Cache : 35MB
- Lithography : 22 NM
- Max Thermal Design Power TDP : 120W
- Compatible Processor Socket : Fclga-2011-3
