Description
Performance and Speeds

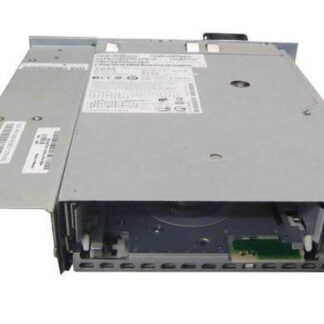

The 00V7514 IBM LTO-5 FC Loader Module Tape Drive is a high-performance tape drive that is designed for reliable and efficient data backup and archive operations. Here are some key details about its performance and speeds:
- Capacity: The 00V7514 IBM LTO-5 FC Loader Module Tape Drive has a native capacity of 1.5 TB and a compressed capacity of up to 3 TB when using 2:1 compression.
- Transfer Rates: The drive has a native data transfer rate of up to 140 MB/s, and a compressed transfer rate of up to 280 MB/s when using 2:1 compression.
- Load/Unload Speeds: The drive has a load/unload speed of 18 seconds, which means that it can load or unload a tape cartridge in under 20 seconds.
- Average File Access Time: The average file access time for this drive is around 50 seconds, which is relatively fast compared to other tape drives.
- Interface: The 00V7514 IBM LTO-5 FC Loader Module Tape Drive uses a Fibre Channel interface, which is a high-speed interface that can support data transfer rates of up to 16 Gb/s.
Encryption and Security Features
The IBM 1.5TB/3TB LTO-5 FC Loader Module Tape Drive includes several encryption and security features designed to protect data during storage and transmission.
- AES Encryption: The tape drive uses Advanced Encryption Standard (AES) 256-bit encryption to protect data stored on tapes. AES is a widely recognized encryption standard that is considered secure and is commonly used to protect sensitive data.
- Write Once Read Many (WORM): This feature ensures that data written to the tape is not altered or overwritten. This provides an added layer of protection against data tampering and helps ensure data integrity.
- Data Compression: The tape drive includes data compression features that allow more data to be stored on a single tape. This reduces the number of tapes needed to store data and reduces the risk of data loss or theft.
- Key Management: The tape drive includes key management features that enable administrators to manage encryption keys used to protect data on tapes. This helps ensure that only authorized users have access to data and that data is protected against unauthorized access or theft.
- Library Managed Encryption: This feature allows encryption to be managed at the library level, rather than on individual tapes. This simplifies key management and helps ensure that encryption is applied consistently across all tapes in the library.
- Secure Access: The tape drive includes features that allow administrators to control access to the tape drive and the data stored on tapes. This helps ensure that only authorized users have access to data and that data is protected against theft or unauthorized access.
Installation and Configuration Guide
The IBM 00V7514 LTO-5 FC Loader Module Tape Drive is a high-capacity tape storage solution that uses Linear Tape-Open (LTO) technology to store and retrieve large amounts of data. This guide provides step-by-step instructions for installing and configuring the IBM 00V7514 LTO-5 FC Loader Module Tape Drive.
Installation:
- Unpack the tape drive and all accessories from the shipping carton.
- Install the tape drive into an empty drive bay in your server or storage device.
- Connect the FC cable to the FC port on the back of the tape drive.
- Connect the other end of the FC cable to an available FC port on your server or storage device.
- Install the device driver for the tape drive onto your server or storage device. The driver can be downloaded from the IBM website.
- Power on the tape drive and wait for it to complete its self-test.
Configuration
- Use the IBM Tape Diagnostic Tool to configure the tape drive. This tool can be downloaded from the IBM website.
- Launch the tool and select the IBM 00V7514 LTO-5 FC Loader Module Tape Drive from the list of available devices.
- Configure the tape drive settings, including block size, compression, and encryption. These settings can be adjusted to optimize performance and security.
- Verify that the tape drive is properly configured by performing a test backup and restore of a small amount of data.
- Set up backup software to use the tape drive as a backup target. Consult the documentation for your backup software for specific instructions on configuring it to use the tape drive.
Once the tape drive is installed and configured, it can be used to store and retrieve large amounts of data, making it an ideal solution for backup and archival storage.
General Information about the IBM 00V7514
- Manufacturer : IBM
- Model Number or SKU# 00V7514
- Product Type : Tape Drive
- Tape Drive Type : Tape Storage
Technical Features
- Compressed Drive Capacity : 3TB
- Native Drive Capacity : 1.5TB
- Native Data Transfer Rate : 120 MBPS
- Compressed Data Transfer Rate : 240 MBPS
