Description

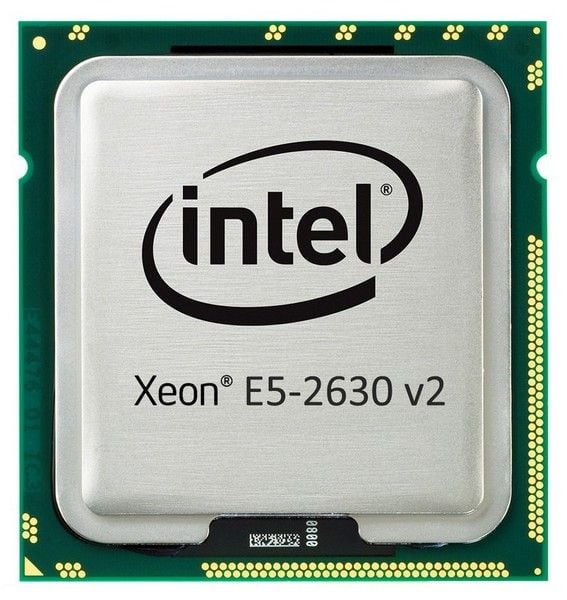

Overview of the 46W4364 IBM Intel Xeon Processor
The IBM Intel Xeon Six Core E5 2630 V2 processor is a powerful and high-performance CPU that is designed for use in servers and workstations. It is based on the Ivy Bridge architecture and is built using a 22nm manufacturing process. The processor features six cores, 12 threads, and a clock speed of 2.6 GHz. It also comes with a large 15MB L3 cache and a fast QPI speed of 7.2 GT/s. In this article, we will take a closer look at the features and specifications of this processor.
Architecture
The IBM Intel Xeon Six Core E5 2630 V2 processor is based on the Ivy Bridge architecture, which was released in 2012. Ivy Bridge is the successor to the Sandy Bridge architecture and is built using a 22nm manufacturing process. The Ivy Bridge architecture brought significant improvements in performance and power efficiency compared to its predecessor.
Cores and Threads
The IBM Intel Xeon Six Core E5 2630 V2 processor features six cores, which means it can handle up to six different tasks simultaneously. Each core can also handle two threads, which allows for a total of 12 threads to be processed at the same time. This makes the processor well-suited for multitasking and running multiple applications at once.
Clock Speed
The IBM Intel Xeon Six Core E5 2630 V2 processor has a base clock speed of 2.6 GHz. The clock speed is the rate at which the processor can execute instructions per second. A higher clock speed typically means better performance, but it also means more power consumption and heat generation.
Cache
The IBM Intel Xeon Six Core E5 2630 V2 processor comes with a large 15MB L3 cache. The cache is a small amount of memory that is located on the processor itself and is used to store frequently accessed data. A larger cache size can improve performance by reducing the amount of time it takes to access frequently used data.
QPI Speed
The IBM Intel Xeon Six Core E5 2630 V2 processor has a fast QPI speed of 7.2 GT/s. QPI (QuickPath Interconnect) is a high-speed interconnect technology that is used to connect the processor to other components in the system, such as memory and I/O devices. A faster QPI speed can improve system performance by allowing data to be transferred more quickly between the processor and other components.
Socket
The IBM Intel Xeon Six Core E5 2630 V2 processor uses the Socket FCLGA 2011. The socket is the physical interface between the processor and the motherboard. It determines the type of motherboard that the processor can be used with.
Manufacturing Process
The IBM Intel Xeon Six Core E5 2630 V2 processor is built using a 22nm manufacturing process. The manufacturing process refers to the technology used to create the transistors and other components on the processor. A smaller manufacturing process typically means better performance and power efficiency, as it allows for more components to be packed onto the processor.
Power Consumption
The IBM Intel Xeon Six Core E5 2630 V2 processor has a TDP (Thermal Design Power) of 80W. TDP is a measure of the amount of heat that the processor generates under typical operating conditions. A higher TDP means more power consumption and heat generation, which can affect system performance and require more advanced cooling solutions.
General Information
- Manufacturer : IBM
- Model Number or SKU# 46W4364
- Type : Processor
- Sub-Type : Intel Xeon 6 Core
Technical Information
- Processor Core : Six-Core
- Clock Speed : 2.6GHz
- Max Turbo Frequency : 3.1GHz
- Quickpath Interconnect QPI Speed : 7.2GT/S
- Instruction Set : 64-Bit
- Instruction Set Extensions : AVX
Cache Memory Details
- L1 Cache : 384 KB
- L2 Cache : 1.5 MB
- L3 Cache : 15 MB
- Lithography : 22 NM
- Max Thermal Design Power TDP : 80W
- Compatible Processor Socket : FCLGA-2011
