Product Overview of 68Y7332 IBM Serveraid M5015 PCI-Express

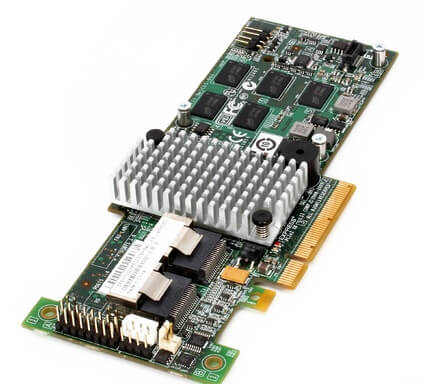

IBM 68Y7332 Serveraid M5015 is a PCI-Express 2.0 x8 SAS SATA RAID controller with a battery. The device is designed to provide high-performance, reliable storage solutions for servers and workstations. The controller is widely used in various industries, including banking, healthcare, education, and government.
PCI-Express 2.0 x8 Interface
The IBM 68Y7332 Serveraid M5015 uses a PCI-Express 2.0 x8 interface. This interface provides high-bandwidth communication between the RAID controller and the server’s CPU. The PCI-Express 2.0 interface is backward-compatible with PCI-Express 1.0, allowing the controller to work with older servers.
SAS and SATA Support
The IBM 68Y7332 Serveraid M5015 supports both SAS and SATA drives. SAS drives are designed for enterprise-level storage applications, while SATA drives are used for desktop and consumer-level storage. The controller supports up to 16 SAS or SATA drives, providing high-capacity storage solutions for servers.
RAID Support
The IBM 68Y7332 Serveraid M5015 supports RAID levels 0, 1, 5, 6, 10, 50, and 60. RAID stands for Redundant Array of Independent Disks. RAID is a technology that allows multiple hard drives to be combined into a single logical unit. RAID provides increased data redundancy, performance, and capacity.
Battery Backup Unit
The IBM 68Y7332 Serveraid M5015 comes with a battery backup unit. The battery backup unit provides power to the controller in the event of a power failure. This ensures that any data being written to the disk is not lost. The battery backup unit also provides enough power to the controller to complete any outstanding write operations.
Cache Memory
The IBM 68Y7332 Serveraid M5015 comes with 512 MB of cache memory. Cache memory is a type of high-speed memory that is used to temporarily store data. The controller uses cache memory to improve performance by reducing the number of disk accesses required. Cache memory also provides a buffer for write operations, allowing the controller to perform more efficiently.
Management Software
The IBM 68Y7332 Serveraid M5015 comes with management software that allows users to configure and monitor the controller. The management software provides a graphical user interface that is easy to use. The software allows users to configure RAID levels, set up hot spares, and monitor the health of the disks.
Compatibility
The IBM 68Y7332 Serveraid M5015 is compatible with a wide range of servers. The controller is compatible with servers from Dell, HP, IBM, and other manufacturers. The controller is also compatible with various operating systems, including Windows, Linux, and VMware.
In Summary, the IBM 68Y7332 Serveraid M5015 is a high-performance, reliable RAID controller that provides storage solutions for servers and workstations. The controller supports both SAS and SATA drives and comes with a battery backup unit. The controller also comes with management software that allows users to configure and monitor the controller. The IBM 68Y7332 Serveraid M5015 is compatible with a wide range of servers and operating systems, making it a versatile storage solution for various industries.
General Information about the IBM 68Y7332
- Manufacturer: IBM
- Part Number or SKU# 68Y7332
- Type: Controller
- Sub-Type: SAS-SATA
Technical Information
- Device Type: SAS Raid Controller – Full-Height Plug-In Card – Low-Profile Plug-In Card
- Bus Type: PCI Express X8
- Data Transfer Rate: 6GB/S
- Raid Level: Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
- Drive Support: 64 X Logical
- Ports: 2 X SFF-8087 – Mini-SAS
- Operating System: Red Hat Enterprise Linux 4, Suse Linux Enterprise Server 11, Microsoft Windows 2003, Red Hat Enterprise Linux 5.
