Description
More Information on the IBM 7875AC1 Blade Center

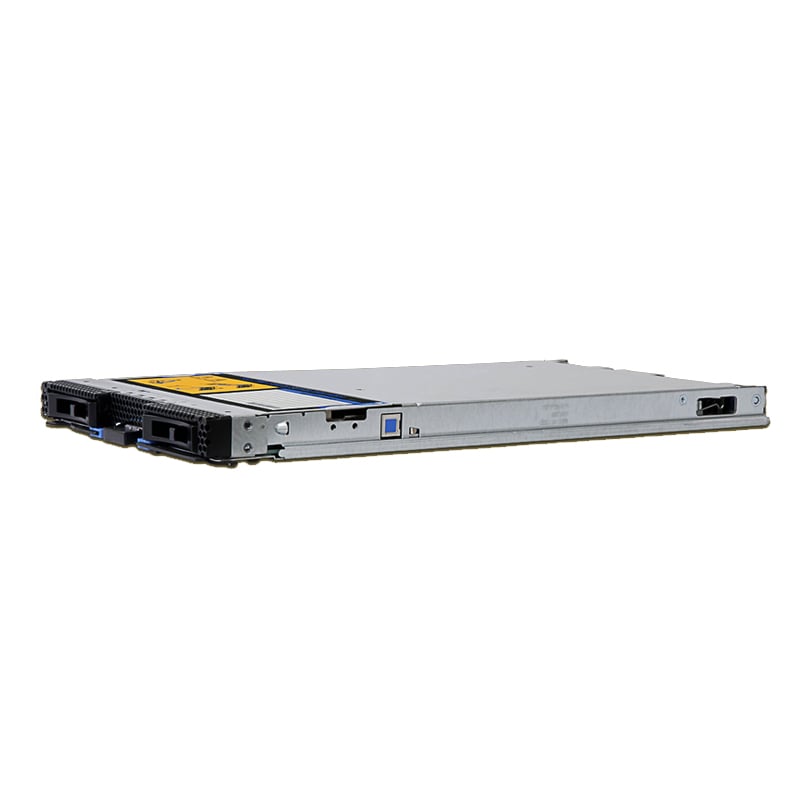

The IBM 7875AC1 is a blade server chassis designed to accommodate high-performance computing components in a compact and efficient form factor. As a part of the IBM BladeCenter family, the Hs23 chassis inherits the legacy of robust design and cutting-edge technology that IBM is renowned for. It serves as a housing for blade servers, which are modular computing units that can be easily inserted and removed from the chassis. In the world of computing, the IBM 7875AC1 Blade Center Hs23 Chassis stands out as a crucial component. This chassis plays a central role in the configuration and operation of blade servers, forming the backbone of many enterprise-level computing systems. In this detailed exploration, we will delve into the key features and specifications of the IBM 7875AC1, emphasizing its significance in the realm of data centers and corporate IT infrastructure.
Key Components
- Central Processing Unit (CPU): One notable aspect of the IBM 7875AC1 is its unique configuration: it comes with no central processing unit (CPU). This design choice allows for greater flexibility in customizing the blade server configuration according to specific workload requirements. Users have the freedom to select and install CPUs that align with their performance needs, making the 7875AC1 a versatile solution for diverse computing tasks.
- Random Access Memory (RAM): In a departure from conventional server configurations, the IBM 7875AC1 arrives without pre-installed random access memory (RAM). This blank slate approach empowers users to tailor the chassis to their memory requirements, selecting the optimal amount and type of RAM for their applications. This flexibility is particularly advantageous for enterprises with varying workloads, as they can scale the memory capacity based on demand.
- Hard Disk Storage: The absence of a pre-installed hard disk in the IBM 7875AC1 also catches the eye. Instead of being constrained by a fixed storage configuration, users can choose and install hard disks that suit their storage needs. This modular approach enables efficient utilization of storage resources, preventing overprovisioning and optimizing the balance between performance and capacity.
Features
- The IBM 7875AC1 Blade Center Gigabit Ethernet Blade Server is packed with features that make it an ideal choice for a wide range of computing tasks. One of its most notable features is its powerful processing capabilities. The server is powered by Intel Xeon processors, which provide high levels of performance and efficiency. This makes the IBM 7875AC1 Blade Center Gigabit Ethernet Blade Server ideal for tasks such as data analysis, virtualization, and cloud computing.
- In addition to its processing power, the IBM 7875AC1 Blade Center Gigabit Ethernet Blade Server also features a high-speed Gigabit Ethernet network interface. This allows for fast and reliable data transfer between the server and other devices on the network. The server also features a high-capacity storage system, which can be configured to meet the needs of different computing tasks.
- Another notable feature of the IBM 7875AC1 Blade Center Gigabit Ethernet Blade Server is its flexibility. The server can be configured to meet a wide range of computing needs, including virtualization, database management, and high-performance computing. This makes it an ideal choice for businesses and organizations that need a versatile and scalable computing platform.
Benefits
- The IBM 7875AC1 Blade Center Gigabit Ethernet Blade Server offers several benefits to businesses and organizations that require high-performance computing capabilities. One of its key benefits is its efficiency. The server is designed to be highly efficient, which means that it can deliver high levels of performance while minimizing energy consumption. This can lead to significant cost savings over time, as businesses and organizations can reduce their energy bills while still enjoying powerful computing capabilities.
- Another benefit of the IBM 7875AC1 Blade Center Gigabit Ethernet Blade Server is its scalability. The server is designed to be highly scalable, which means that it can be easily expanded or upgraded to meet changing computing needs. This can be particularly valuable for businesses and organizations that are growing or evolving, as they can easily add more computing power as needed without having to replace their entire computing infrastructure.
The Blade Server Advantage
- At the heart of the IBM 7875AC1 Blade Center Hs23 Chassis lies the concept of blade servers. These compact computing modules offer several advantages over traditional rack-mounted servers. Let’s explore the benefits that make blade servers, when housed in the 7875AC1 chassis, a compelling choice for enterprise environments.
- Space Efficiency: The blade server design is inherently space-efficient. Multiple blade servers can be housed in a single chassis, significantly reducing the physical footprint in data centers. This space optimization is critical for organizations with limited floor space, allowing them to maximize computing power within a confined environment.
- Simplified Management: The IBM 7875AC1 incorporates advanced management features for efficient administration of blade servers. Through integrated management modules, administrators can monitor and control the entire chassis remotely. This centralized management streamlines routine tasks such as firmware updates, system monitoring, and troubleshooting, enhancing overall operational efficiency.
- Scalability and Flexibility: Scalability is a key consideration in modern IT infrastructure, and the 7875AC1 excels in this regard. The chassis supports multiple blade servers, and additional chassis can be seamlessly integrated to accommodate growing computational needs. This modular scalability ensures that organizations can adapt their computing resources to match evolving workloads without overhauling their entire infrastructure.
General Information about this IBM 7875AC1
- Manufacturer: IBM
- Part Number or SKU# 7875AC1
- Product Type: Xeon Blade Center
- Product Name: Server
Processor & Chipset of Blade Center Chassis
- Cpu Type: Intel Xeon Processor E5-2600 Product Family, With Up To 8 Cores
- Installed Qty: None
- Max Supported Qty: 2
- Upgradability: Upgradable
- Cache Memory Type: L3 Cache
Memory for 256 GB Chassis
- Installed Size: None
- Maximum Memory: 256 GB
- Form Factor: Dimm 240-Pin
- Technology: Ddr3 Sdram – Ecc Chipkill
- Features: Registered, Memory Mirroring, Very Low Profile, Memory Sparing
- Optional Ram Configuration: 2gb:4gb:8gb:16GB DIMMs
- Hard Drive: None Supports Hot-Swap Sas Hdds Or Solid-State Drives
Storage Controller
- Controller Type: 1 X Raid – Integrated – Pci Express 2.0 X4
- Controller Interface Type: SATA-600 / SAS 2.0
- Storage Controller Name: Lsisas2004
- Channel Qty: 4
- Raid Level: Raid 0, Raid 1
Display & Graphics Controller
- Graphics Processor: Matrox Mga G200ev
- Video Ram Type: Ddr2 Sdram
- Video Memory: 16 Mb
Networking
- Networking Type: Integrated
- Ethernet Ports 2 X Gigabit Ethernet
- Ethernet Controller Emulex Bladeengine 3
- Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Protocol: SNMP 3, Cim, Ipmi 2.0
- Remote Management Controller: Integrated Management Module V2 (Imm2)
- Features: Wake On Lan (Wol), Pxe Support, Teaming Support
In Summary, the IBM 7875AC1 Blade Center Hs23 Chassis emerges as a versatile and adaptable solution for enterprises seeking a dynamic and efficient computing infrastructure. Its unique configuration, devoid of pre-installed CPU, RAM, and hard disk, offers unparalleled flexibility in tailoring the server to specific requirements. The inclusion of 2x Gigabit Ethernet ports underscores its commitment to high-speed and reliable networking. The embrace of blade server technology positions the 7875AC1 as a frontrunner in space efficiency, simplified management, and scalable computing. As businesses navigate the complex landscape of modern IT, the IBM 7875AC1 stands as a reliable foundation, ready to meet the challenges of today and tomorrow.
