Description
Product Overview

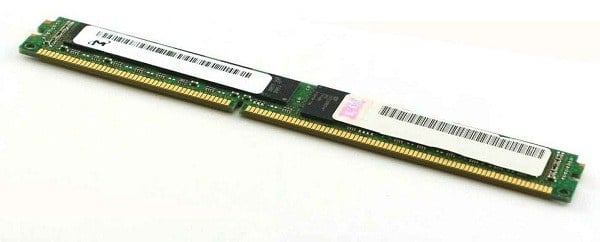

The IBM 90Y3105 is a 32GB, 1x32GB, 1333MHz PC3-10600 CL9 VLP ECC Registered DDR3 SDRAM DIMM memory module. It operates at a voltage of 1.35V and is designed for use in server and enterprise-level computing systems. This memory module is VLP (very low profile) which makes it suitable for use in compact and dense systems. It also features ECC (Error Correction Code) which helps to detect and correct errors in data transmission, ensuring the integrity and reliability of stored data. Additionally, it is registered memory which is designed to work in systems with more than one DIMM per channel. This memory module is backed by IBM’s warranty and support, providing customers with peace of mind and assurance that their investment is protected.
Memory Capacity and Speed
The IBM 90Y3105 memory module has a capacity of 32GB, which is a large amount of memory for a single DIMM. This high capacity allows for improved system performance and the ability to run multiple applications and processes simultaneously.
The module also operates at a speed of 1333MHz, which refers to the rate at which the memory can transfer data. This speed, measured in megahertz (MHz), is also known as the memory’s clock rate. A faster clock rate means that the memory can process information more quickly, resulting in improved system performance.
In the case of this module, a PC3-10600, is a standard for DDR3 memory, the memory’s speed is 10600MB/s, this is the amount of data that can be transferred per second. This module also features CL9, which refers to the CAS Latency, the time between the memory controller sending a command and the memory module responding. A lower CL value indicates faster memory access times, which can result in improved system performance.
Voltage and Form Factor
The IBM 90Y3105 memory module operates at a voltage of 1.35V, which is a lower voltage compared to standard DDR3 memory which operates at 1.5V. This lower voltage results in a reduction in power consumption, which can lead to a decrease in heat generation and longer battery life in mobile systems.
The module also features a VLP (very low profile) form factor, which means it has a smaller height than standard DDR3 DIMM modules. This allows for greater flexibility in system design and allows for the use of the memory module in compact and dense systems where space is at a premium. This form factor also allows the memory to be used in systems with limited clearance for DIMM modules, such as in blade servers and other space-constrained environments.
GENERAL INFORMATION
- Manufacturer: IBM
- Manufacturer Part Number: 90Y3105
- Type: Memory (RAM)
- Sub-Type: Pc3-10600
- Product Name: 32GB DDR3 SDRAM Memory Module
TECHNICAL INFORMATION
- Storage Capacity: 32 GB
- Memory Technology: DDR3 SDRAM
- Number Of Modules: 1 X 32GB
- Memory Speed: 1333MHZ
- Memory Standard: DDR3-1333/PC3-10600
- Error Checking: ECC
- Ram Features: Registered
