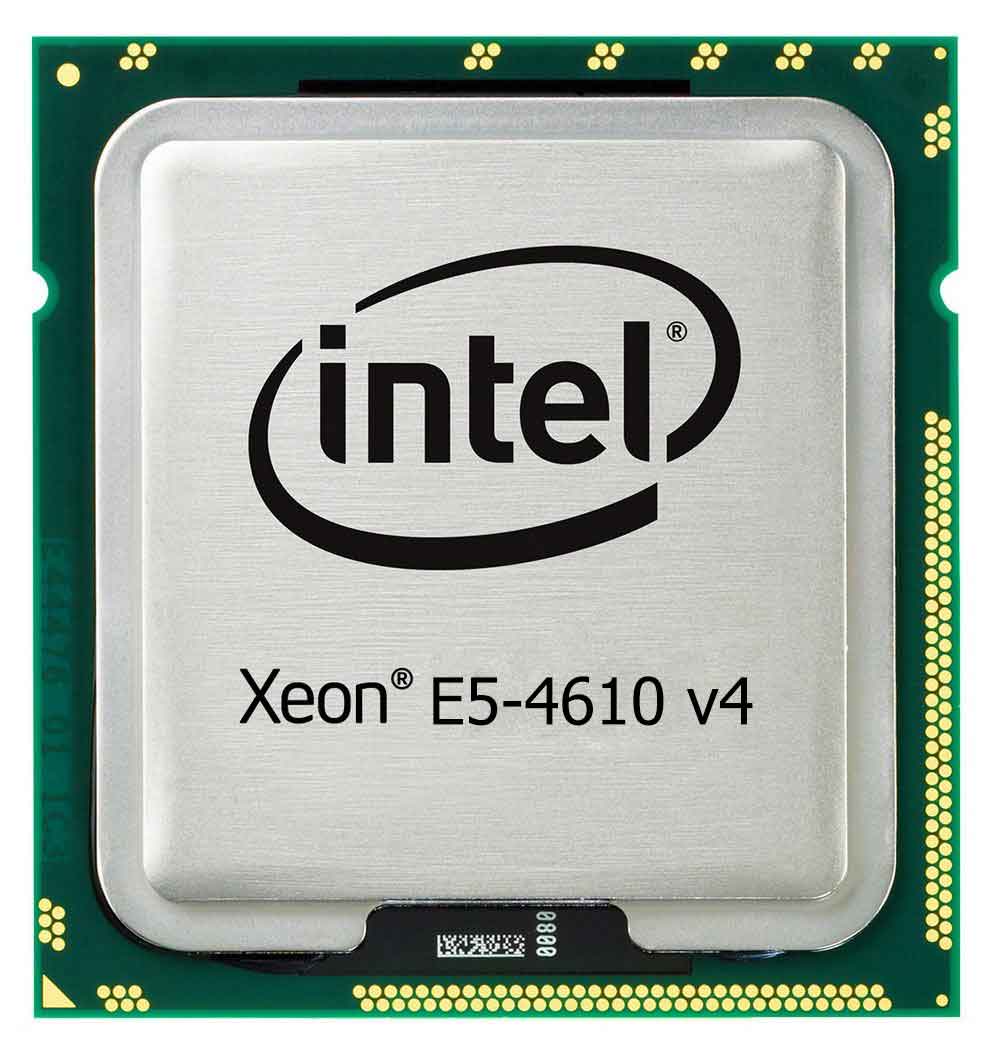

Product overview of the Intel CM8066002062800
The CM8066002062800 Intel Xeon E5-4610V4 processor is a high-performance central processing unit designed for use in server and workstation applications. This processor is part of Intel’s Xeon E5 v4 family, which is based on the Broadwell-EP microarchitecture. In this article, we will provide a detailed overview of the features and specifications of the CM8066002062800 Intel Xeon E5-4610V4 processor.
Processor Architecture
The CM8066002062800 Intel Xeon E5-4610V4 processor is built on a 14nm manufacturing process and uses the FCLGA2011-3 socket. It features 10 cores and 20 threads, with a base clock speed of 1.8GHz and a maximum turbo frequency of 2.4GHz. The processor has a thermal design power (TDP) of 105 watts, which means that it requires a cooling system capable of dissipating this amount of heat.
Cache and Memory
The CM8066002062800 Intel Xeon E5-4610V4 processor has 25MB of L3 cache, which is a type of high-speed memory that is used to store frequently accessed data. This cache can be shared between all 10 cores, allowing for faster access to frequently used data. In addition to the L3 cache, the processor also has a smaller amount of L2 cache, which is dedicated to each core.
The processor supports quad-channel DDR4 memory with a maximum speed of 2133MHz. It can support up to 1.5TB of memory when used with compatible motherboards that have 24 memory slots.
Performance
The CM8066002062800 Intel Xeon E5-4610V4 processor has a QPI speed of 6.4GT/s. QPI stands for Quick Path Interconnect, which is a high-speed interconnect that connects the processor to other components in the system, such as the memory controller and the input/output (I/O) controller.
The processor supports Intel Hyper-Threading Technology, which allows each core to process two threads simultaneously. This can improve performance in applications that can take advantage of multiple threads.
The processor also supports Intel Turbo Boost Technology, which allows the processor to dynamically increase its clock speed when needed. This can provide a performance boost in applications that require short bursts of processing power.
Virtualization
The CM8066002062800 Intel Xeon E5-4610V4 processor supports Intel Virtualization Technology (VT-x), which allows multiple operating systems to run on a single physical server. This can help improve server utilization and reduce hardware costs by allowing multiple applications to run on the same hardware.
Security
The processor supports Intel Advanced Encryption Standard New Instructions (AES-NI), which provides hardware-accelerated encryption and decryption capabilities. This can improve the performance of encryption and decryption operations, which are often used to secure data in transit or at rest.
The processor also supports Intel Trusted Execution Technology (TXT), which provides hardware-based security features to help protect against attacks such as rootkits and malware.
Compatibility
The CM8066002062800 Intel Xeon E5-4610V4 processor is compatible with the Intel C610 chipset and requires a motherboard with the FCLGA2011-3 socket. It is compatible with a variety of operating systems, including Windows Server, Linux, and VMware.
In summary, the CM8066002062800 Intel Xeon E5-4610V4 processor is a high-performance CPU that is designed for use in server and workstation applications. It features 10 cores, 20 threads, 25MB of L3 cache, and a base clock speed of 1.8GHz.
General Information about the Intel CM8066002062800
- Manufacturer: Intel
- Model Number or SKU# CM8066002062800
- Product Type : Server Processor
Technical Information
- Processor core : 10-core
- Clock speed : 1.8GHz
- Max turbo frequency : 1.8GHz
- Quickpath interconnect(qpi) speed : 6.4GT/s
- No of qpi links: 2
- Instruction set : 64-bit
- Instruction set extensions : AVX 2.0
Cache Memory Detail
- L3 Cache : 25MB
- Lithography : 14NM
- Max Thermal Design Power (TDP) : 105W
- Compatible Processor Socket :FCLGA2011-3
