Description

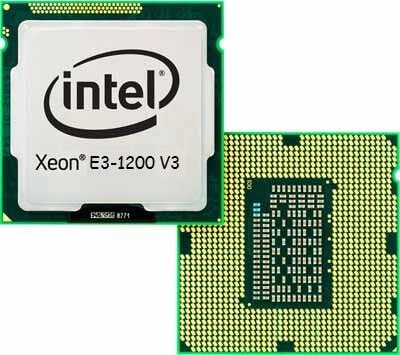

Product overview of the Intel SR154
The SR154 Intel Xeon Quad Core E3 1220V3 3.1GHz 8MB L3 Cache Socket Fclga 1150 22NM 80W Processor is a high-performance computing component used in many enterprise-grade servers. In this article, we will discuss the technical details of this processor, its features, and capabilities.
The SR154 Intel Xeon Quad Core E3 1220V3 processor is designed to handle complex computing tasks in data centers and other high-performance computing environments. The processor is manufactured using 22nm technology, which allows for a smaller and more efficient design. The SR154 features a quad-core architecture with a base clock speed of 3.1GHz and 8MB of L3 cache. This processor is built for Socket Fclga 1150 and has a maximum thermal design power (TDP) of 80W.
Architecture
The SR154 Intel Xeon Quad Core E3 1220V3 processor is based on the Haswell microarchitecture. The Haswell architecture is a significant improvement over the previous-generation Ivy Bridge architecture, providing increased performance and power efficiency. The Haswell architecture features a refined 22nm manufacturing process, new instruction sets, and improved performance per watt.
Clock Speed
The SR154 Intel Xeon Quad Core E3 1220V3 processor features a base clock speed of 3.1GHz. This clock speed can be increased through the use of Intel’s Turbo Boost Technology 2.0, which can dynamically increase the clock speed of individual cores when needed. The Turbo Boost Technology 2.0 can increase the clock speed up to 3.5GHz, depending on the workload.
Cache
The SR154 Intel Xeon Quad Core E3 1220V3 processor features 8MB of L3 cache. Cache is a small amount of memory that is built into the processor itself and is used to store frequently accessed data. Having a large amount of cache can significantly improve the performance of the processor, as it reduces the time spent waiting for data to be fetched from the main memory.
Socket
The SR154 Intel Xeon Quad Core E3 1220V3 processor is designed to fit into Socket Fclga 1150. The Fclga 1150 socket is a land grid array socket that is used in many Intel processors. This socket provides a secure and reliable connection between the processor and the motherboard.
Manufacturing Process
The SR154 Intel Xeon Quad Core E3 1220V3 processor is manufactured using 22nm technology. The 22nm manufacturing process allows for a smaller and more efficient design, which results in lower power consumption and higher performance. The 22nm technology is also more cost-effective than previous manufacturing processes, making it an attractive option for high-performance computing components.
Thermal Design Power
The SR154 Intel Xeon Quad Core E3 1220V3 processor has a maximum thermal design power (TDP) of 80W. TDP is a measure of the maximum amount of heat that a processor can dissipate when operating under normal conditions. This rating is important as it helps ensure that the processor can operate without overheating and damaging other components in the system.
Applications
The SR154 Intel Xeon Quad Core E3 1220V3 processor is designed for use in high-performance computing environments, such as data centers and other enterprise-grade servers. The processor is well-suited for tasks that require a high level of processing power, such as scientific simulations, financial modeling, and complex data analysis.
General Information about the Intel SR154
- Manufacturer: Intel
- Model Number or SKU# SR154
- Product Type : Server Processor
Technical Information
- Processor Core : Quad-Core
- Clock Speed : 3.1 Ghz
- Max Turbo Frequency : 3.5 Ghz
- Instruction Set : 64-Bit
- Instruction Set Extensions : Sse 4.1/4.2, Avx 2.0
Cache Memory Detail
- • L3 Cache : 8 Mb
- Lithography : 22 Nm
- Max Thermal Design Power (Tdp) : 80 W
- Compatible Processor Socket : Fclga-1150
Memory Specifications
- • Max Memory Size (Dependent On Memory Type) : 32 Gb
- • Memory Types : Ddr3-1333/1600
- • Memory Channels : 2
- • Max Memory Bandwidth : 25.6 Gb/S
- • Ecc Memory Supported
Advanced Technologies
- • Turbo Boost Technology : 2.0
- • Vpro Technology
- • Virtualization Technology (Vt-X)
- • Virtualization Technology For Directed I/O (Vt-D)
- • Vt-X With Extended Page Tables (Ept)
- • Extended Memory 64 Technology
- • Trusted Execution Technology
- • Enhanced Intel Speedstep Technology
- • Thermal Monitoring Technologies
- • Identity Protection Technology
Additional Information
- • Aes New Instructions
- • Execute Disable Bit
- • Idle States
- • Secure Key
- • Tsx-Ni
