Description

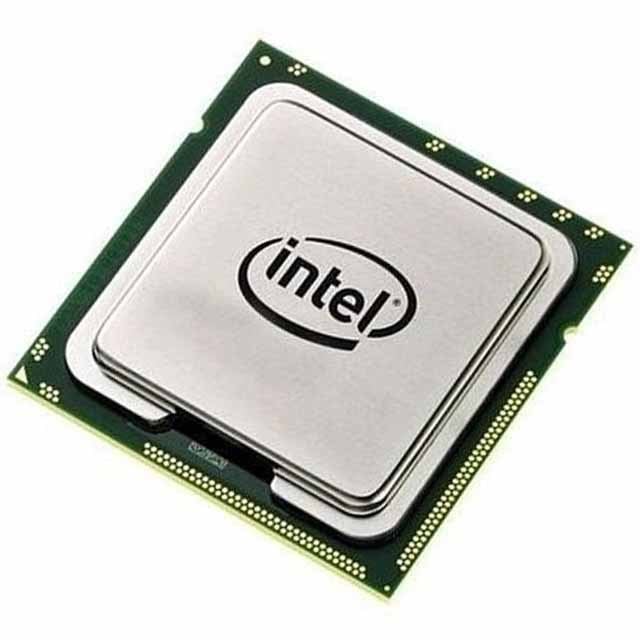

Introduction to the SR1AH Intel Xeon Processor
The SR1AH Intel Xeon Processor is a part of the Xeon E5-2400 series of processors from Intel. The E5-2430v2 model of this processor has a clock speed of 2.5GHz, 15MB of L3 cache and 7.2 GT/s Quick Path Interconnect (QPI) speed. It is designed to be used in servers and workstations and is compatible with motherboards that have an FCLGA-1356 socket. This processor was released in 2013 and was known for its high performance and advanced technologies. The SR1AH Intel Xeon Processor is based on 22nm Ivy Bridge-EP microarchitecture and has a TDP (thermal design power) of 80W, which makes it more energy efficient than its predecessor. This processor is suitable for a wide range of applications, including virtualization, database management, and high-performance computing.
Key Features of the Six Core E5-2430v2
The Six Core E5-2430v2 is a powerful server and workstation processor that offers several key features that make it well-suited for demanding applications:
- Six cores: the processor has six independent cores on a single chip, each with its own L3 cache, allowing for improved performance and multitasking capabilities.
- Clock speed: 2.5GHz, which is the speed at which the processor can execute instructions.
- L3 Cache: 15MB, which is a high-speed memory that stores frequently used data, allowing the processor to access it quickly.
- QPI speed: 7.2 GT/s, which stands for Quick Path Interconnect and is the communication channel between the processor and the rest of the system.
- Socket compatibility: FCLGA-1356, which is the type of socket used to connect the processor to the motherboard.
- 22nm process technology, which makes the processor more energy efficient and generates less heat than its 32nm predecessor.
- Intel Virtualization Technology (VT-x) support, which allows multiple operating systems to run on the same hardware, improving system utilization and security.
- Intel Turbo Boost Technology 2.0, which allows the processor to automatically increase its clock speed when needed, providing a performance boost when needed.
- Intel Hyper-Threading Technology, which allows each core to handle multiple threads, improving multitasking capabilities.
- Intel Advanced Vector Extensions (AVX) support, which provides a set of instructions that improve performance on floating-point-intensive applications.
- 80w TDP which makes it more energy efficient.
- Intel Advanced Vector Extensions 512 (AVX-512) support, which provides an extension to the AVX instruction set and provides improved performance on floating-point-intensive applications.
All these features combined make the Six Core E5-2430v2 an excellent choice for servers and workstations that require high performance and advanced technologies.
Processor Specs: 2.5GHz Clock Speed and 15MB L3 Cache
The SR1AH Intel Xeon Processor Six Core E5-2430v2 has a clock speed of 2.5GHz, which refers to the speed at which the processor can execute instructions. A higher clock speed means that the processor can perform more operations per second, resulting in improved performance. The 2.5GHz clock speed of the E5-2430v2 is higher than the 2.4GHz clock speed of the previous E5-2430 model, providing a slight performance boost.
The processor also has 15MB of L3 cache, which is a high-speed memory that stores frequently used data, allowing the processor to access it quickly. The L3 cache is shared among all cores, and its larger size means that the processor can store more data, reducing the number of times it needs to access the main memory, resulting in improved performance.
The combination of a high clock speed and a large L3 cache makes the SR1AH Intel Xeon Processor Six Core E5-2430v2 well-suited for demanding applications that require high performance and fast data processing.
GENERAL INFORMATION
- PRODUCT TYPE : SERVER PROCESSOR
- PRODUCT MANUFACTURER : INTEL CORPORATION
- MANUFACTURER PART NUMBER : SR1AH
- PRODUCT MODEL : E5-2430 V2
TECHNICAL INFORMATION
- PROCESSOR CORE : SIX-CORE
- CLOCK SPEED : 2.5 GHZ
- MAX TURBO FREQUENCY : 3 GHZ
- QUICKPATH INTERCONNECT(QPI) SPEED : 7.2 GT/S
- INSTRUCTION SET : 64-BIT
- INSTRUCTION SET EXTENSIONS : AVX
CACHE MEMORY DETAIL
- L3 CACHE : 15 MB
- LITHOGRAPHY : 22 NM
- MAX THERMAL DESIGN POWER (TDP) : 80 W
- COMPATIBLE PROCESSOR SOCKET : FCLGA-1356
