Description

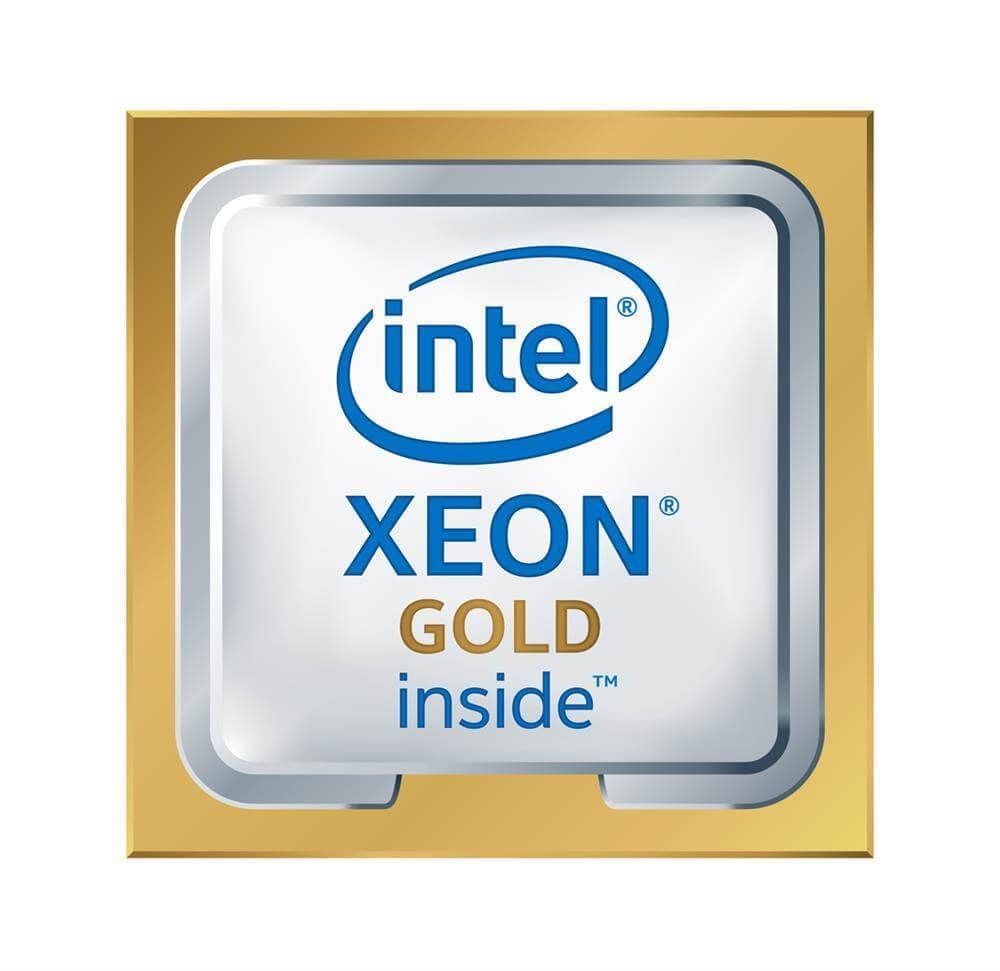

Introduction to the Intel Xeon Gold 6142M Processor
The Intel Xeon Gold 6142M Processor is a high-end server-grade CPU designed for enterprise-level applications and workloads. It was introduced by Intel in 2018 as part of its Xeon Scalable Processor family, and features 16 cores, 32 threads, and a base clock speed of 2.6GHz. The processor is built on a 14nm manufacturing process and is compatible with the FCLGA3647 socket. It is designed to offer high levels of performance, reliability, and scalability for a wide range of compute-intensive tasks, including virtualization, big data analytics, machine learning, and cloud computing. With its powerful architecture and advanced features, the Intel Xeon Gold 6142M Processor is well-suited for use in data centers and other demanding computing environments.
Processor Architecture and Design
The Intel Xeon Gold 6142M Processor features an advanced processor architecture and design optimized for server workloads. It is built on the Intel Xeon Scalable Processor architecture, which includes multiple components designed to deliver high levels of performance, reliability, and scalability. The processor features 16 cores and 32 threads, each of which is capable of executing multiple instructions simultaneously. It also features Intel’s Advanced Vector Extensions 512 (AVX-512) instruction set, which enables accelerated processing of vector operations, machine learning, and other compute-intensive workloads. In addition, the processor features an integrated memory controller that supports DDR4 memory with a maximum speed of 2666MHz, and up to 768GB of total memory capacity. The processor is also equipped with Intel’s Ultra Path Interconnect (UPI) technology, which enables high-speed connectivity between processors in multi-socket server configurations. Overall, the Intel Xeon Gold 6142M Processor is designed to deliver powerful and scalable performance for demanding enterprise-level workloads.
Performance Benchmarks and Comparison
The Intel Xeon Gold 6142M Processor has been benchmarked and compared to other high-end server CPUs. In general, it performs very well in compute-intensive workloads such as scientific computing, data analytics, and virtualization. Here are a few key performance benchmarks and comparisons:
- SPEC CPU2006: The Intel Xeon Gold 6142M Processor achieved a SPECint_rate_base2006 score of 536 and a SPECfp_rate_base2006 score of 463, which places it in the top tier of server CPUs.
- Geekbench: The processor scored 41996 points in multi-core performance and 5525 points in single-core performance in Geekbench 5, which is a popular benchmark for CPU performance.
- VMmark: In VMmark, a benchmark designed to measure virtualization performance, the Intel Xeon Gold 6142M Processor achieved a score of 11.91@12 tiles, which is considered a strong performance result.
- TPC-H: In TPC-H, a benchmark designed to measure database performance, the processor achieved a score of 52877.3 QphH@1000GB, which places it in the upper range of high-performance CPUs.
General Information
- Product Type : Server Processor
- Product Manufacturer : Intel Corporation
- Product Model : Gold 6142M
Technical Information
- Processor Core : 16-Core
- Clock Speed : 2.60GHz
- Max Turbo Frequency : 3.70GHz
- Ultrapath Interconnect(UPI) Speed : 10.4GT/S
- no. Of upi links : 3
- Instruction Set : 64-bit
- Instruction Set Extensions : intel sse4.2, intel avx, intel avx2, intel avx-512
- L3 CACHE : 22MB
- LITHOGRAPHY : 14NM
MAX Thermal Design Power TDP
- 150W
Compatible Processor Socket
- FCLGA3647
Memory Specifications
- Max Memory Size (Dependent On Memory Type) : 1.5TB
- Memory Types : DDR4-2666
- Maximum Memory Speed : 2.67GHz
- Max No. Of memory channels : 6
- ECC Memory Supported : yes
