Description

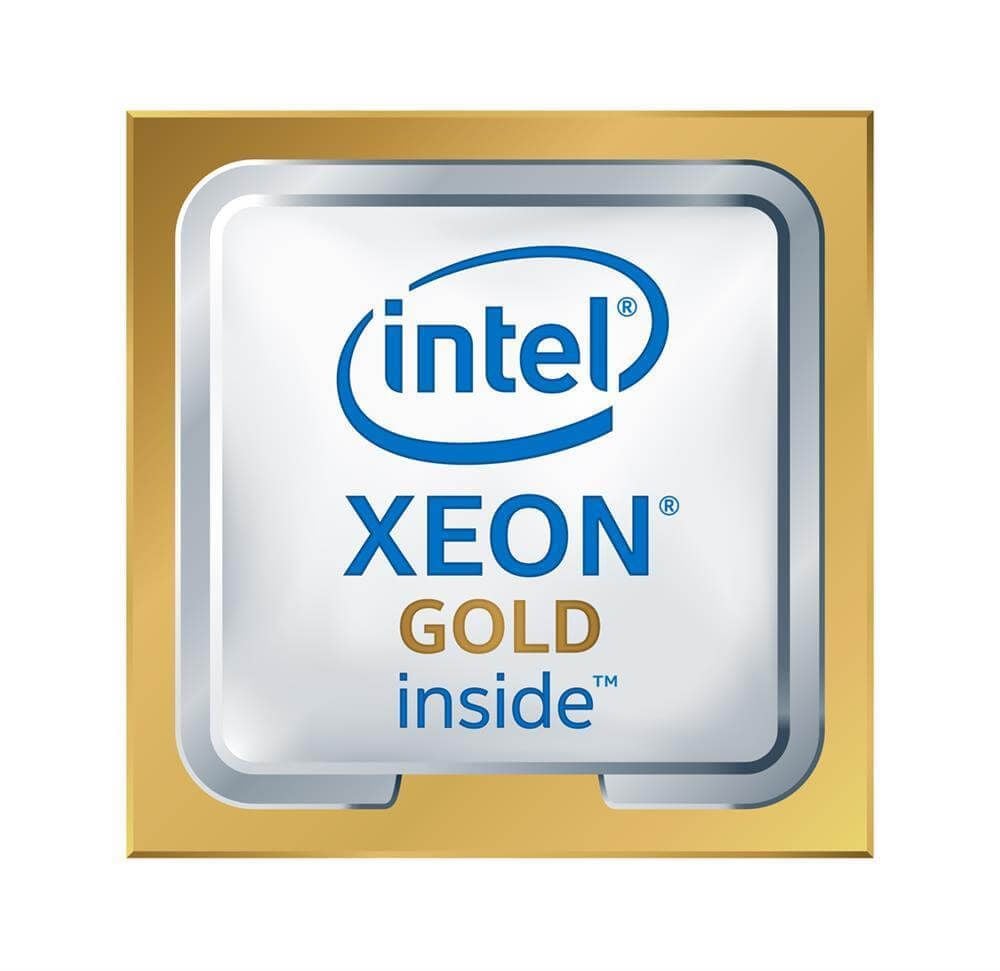

Overview of the Intel Xeon Gold 6254 Processor
The Intel Xeon Gold 6254 Processor is a high-performance server processor designed for data centers and enterprise-level computing applications. It was first introduced in Q2 2019 as part of the Cascade Lake-SP family of processors.
The Gold 6254 features 18 cores and 36 threads, making it capable of handling multiple tasks simultaneously. Its base clock speed is 3.10GHz, but it can turbo boost up to 4.0GHz for increased performance when needed. The processor also comes with 25MB of L3 cache and supports up to 2TB of memory.
One of the key features of the Gold 6254 is its support for advanced instructions sets such as AVX-512, which enables faster processing of compute-intensive workloads. It also features Intel’s Turbo Boost Max Technology 3.0, which identifies the two fastest cores on the processor and directs critical workloads to them for improved performance.
The Gold 6254 supports virtualization technologies such as Intel VT-d, which enables direct assignment of I/O devices to virtual machines, and Intel VT-x, which improves performance and security of virtual machines.
In terms of power consumption, the Gold 6254 has a thermal design power (TDP) of 200W, which is relatively high for a server processor. As a result, it requires a robust cooling system to maintain optimal performance.
Introduction to Intel Xeon Gold 6254 Processor
The Intel Xeon Gold 6254 Processor is a high-performance server processor that is designed for data center and enterprise-level computing. It was launched in Q2 2019 as part of the Intel Xeon Scalable Processor Family, and it is built on the 14nm manufacturing process.
This processor features 18 cores and 36 threads, with a base clock speed of 3.10GHz and a maximum turbo frequency of 4.00GHz. It also has a large 25MB cache, which helps to speed up data access and processing. The processor uses the FCLGA3647 socket, which is compatible with select server motherboards.
The Intel Xeon Gold 6254 Processor is designed to deliver exceptional performance for demanding workloads such as artificial intelligence, machine learning, big data analytics, and high-performance computing. It is also optimized for virtualization, providing the ability to run multiple virtual machines on a single physical server.
Performance of Intel Xeon Gold 6254 Processor
The Intel Xeon Gold 6254 Processor is designed to deliver high levels of performance for demanding workloads in data center and enterprise environments. Here are some of the key performance metrics of this processor:
- Core Count: The Intel Xeon Gold 6254 Processor has 18 cores and 36 threads, which allows it to handle heavy workloads with ease. This high core count makes it ideal for applications such as virtualization, big data analytics, and high-performance computing.
- Clock Speed: The processor has a base clock speed of 3.10GHz and a maximum turbo frequency of 4.00GHz, which provides fast processing for both single-threaded and multi-threaded applications.
- Cache Size: The processor has a large 25MB cache, which helps to speed up data access and processing. This large cache size is particularly useful for applications that involve frequent data access or manipulation.
- Memory Support: The processor supports up to six channels of DDR4 memory, which provides high memory bandwidth for demanding workloads. It also supports Intel Optane DC persistent memory, which provides large memory capacities and faster data access.
- Instruction Set Extensions: The processor supports a wide range of instruction set extensions, including AVX-512, which provides improved performance for compute-intensive workloads.
- Power Efficiency: Despite its high performance, the Intel Xeon Gold 6254 Processor is designed to be power-efficient. It has a TDP of 200W, which is in line with other processors in its class.
General Information
- Product Type : Server Processor
- Product Manufacturer : Intel Corporation
- Product Model : Gold 6254
Technical Information
- Processor Core : 18-Core
- Clock Speed : 3.10GHz
- Max Turbo Frequency : 4.00GHz
- Ultrapath Interconnect(UPI) Speed : 10.4GT/S UPI
- No. Of UPI Links : 3
- Instruction Set : 64-Bit
- Instruction Set Extensions : Intel® AVX-512
- Smart Cache : 25MB
- Lithography : 14NM
- Max Thermal Design Power (TDP) : 200W
- Compatible Processor Socket : FCLGA3647
- Max Memory Size (Dependent On Memory Type) : 1TB
- Memory Types : DDR4-2933
- Maximum Memory Speed : 2.9GHz
- Max No. Of Memory Channels : 6
- ECC Memory Supported : Yes.
