Description
Overview of Solid State Drive

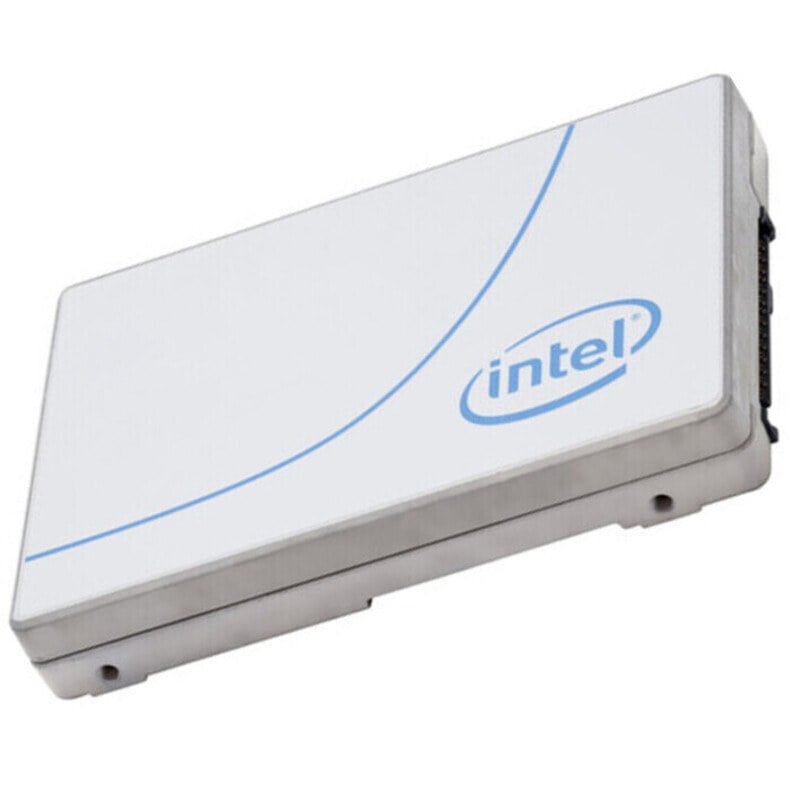

The Intel SSDPE2KE076T801 is a cutting-edge solid-state drive (SSD) created by Intel, designed to offer exceptional storage capacity and performance. This storage device is revolutionary due to its significant storage size, advanced connectivity, and speed. Understanding its specifications and technical jargon can seem complex, but breaking down the components can help make it more understandable.
Understanding the Intel SSDPE2KE076T801
Let’s dissect the name to unravel its meanings and specifications:
- Intel: This indicates the manufacturer, Intel Corporation, a renowned leader in semiconductor technology and computing innovation.
- SSD (Solid-State Drive): It stands for a type of storage device that uses integrated circuit assemblies to store data persistently.
- PE2KE076T801: This alphanumeric sequence represents the model number and specific details of the SSD. The “7.68TB” denotes its substantial storage capacity, while “PCIe,” “NVMe,” “DC,” “P4610,” “3.1,” “x4,” “U.2,” and “TLC” denote its interface, protocol, technology, and form factor.
Technical Specifications of the SSDPE2KE076T801Storage Capacity (7.68TB)
The SSD boasts an impressive 7.68 Terabytes (TB) of storage capacity, which is significantly high, making it suitable for large-scale data storage needs, high-performance computing, and demanding applications.
Interface: PCIe (Peripheral Component Interconnect Express)
The PCIe interface provides faster data transfer speeds compared to traditional interfaces, allowing for quicker communication between the SSD and the computer system.
NVMe (Non-Volatile Memory Express)
The NVMe protocol enhances the SSD’s performance by optimizing the communication between the storage device and the system, reducing latency, and improving overall speed.
Form Factor: U.2
The U.2 form factor is a physical specification for the SSD’s shape and size, ensuring compatibility and ease of installation.
Technology: TLC (Triple Level Cell)
TLC technology enables high storage density by storing three bits of information per cell, enhancing the SSD’s overall capacity without compromising performance.
Speed: 3.1 x4
The “3.1 x4” signifies the SSD’s data transfer speed. It refers to the generation of the PCIe standard and the number of lanes used for data transfer. The higher the number, the faster the potential data transfer rate.
Direct Current (DC) and P4610
These could refer to specific features or technologies integrated into the SSD for power management and improved performance. Further technical documentation or details from Intel might provide more insight into these aspects.
Use Cases and Benefits
The Intel SSDPE2KE076T801, with its massive storage capacity, high speed, and advanced technology, is suitable for various applications, including:
- Enterprise Storage: Ideal for businesses and data centers requiring large storage capacities and fast data access.
- High-Performance Computing: Used in supercomputing, AI, and data analysis where speed and capacity are critical.
- Big Data Applications: Perfect for managing and analyzing large volumes of data.
- Content Creation: Beneficial for video editing, animation, and graphic design due to its high-speed data access and large storage space.
SSDPE2KE076T801 is a solid-state drive (SSD) made by Intel, a well-known technology company. The SSD has a storage capacity of 7.68 Terabytes (TB), which is quite large and suitable for many applications that require a lot of storage. The SSD uses the Peripheral Component Interconnect Express (PCIe) interface, Nonvolatile Memory Express (NVMe) protocol, and Direct Current (DC) power supply. In this article, we will explain what each of these terms means and how they relate to the SSDPE2KE076T801 SSD.
PCIe Interface
PCIe stands for Peripheral Component Interconnect Express, which is a type of interface used in computers to connect different hardware components. PCIe is a high-speed serial interface that provides faster communication between hardware devices than the older Peripheral Component Interconnect (PCI) and Accelerated Graphics Port (AGP) interfaces.
The PCIe interface used in the SSDPE2KE076T801 SSD is the 3.1 x4 version, which means it has four lanes and a maximum bandwidth of 3.94 gigabytes per second (GB/s) in each direction. This high-speed interface allows the SSD to transfer data quickly and efficiently.
NVMe Protocol
NVMe stands for Nonvolatile Memory Express, which is a protocol used to communicate with storage devices such as SSDs. The NVMe protocol is designed to take advantage of the high-speed capabilities of PCIe interfaces and provide faster and more efficient communication between the computer and storage devices.
The SSDPE2KE076T801 SSD uses the NVMe protocol, which enables it to transfer data at high speeds and reduce latency. NVMe also supports parallelism, which means that the SSD can read and write multiple streams of data simultaneously.
Direct Current Power Supply
Direct Current (DC) power supply is a type of power supply that provides a constant voltage and current to electronic devices. DC power is commonly used in computers and other electronic devices because it is more efficient and reliable than Alternating Current (AC) power.
The SSDPE2KE076T801 SSD uses DC power to operate, which means it can be powered by the computer’s power supply unit (PSU). The DC power supply ensures that the SSD receives a consistent voltage and current, which is important for maintaining the SSD’s reliability and performance.
U.2 Form Factor
The U.2 form factor is a type of connector used in SSDs that allows them to be connected directly to the motherboard. The U.2 connector is a small and compact interface that provides high-speed communication between the SSD and the computer.
The SSDPE2KE076T801 SSD uses the U.2 form factor, which makes it easy to install and use. The U.2 connector also ensures that the SSD can communicate with the computer at high speeds and provide fast data transfer rates.
Triple Level Cell (TLC) Technology
Triple Level Cell (TLC) technology is a type of NAND flash memory used in SSDs that allows each cell to store three bits of data. This technology provides a higher storage capacity than Single Level Cell (SLC) and Multi Level Cell (MLC) technologies, which can only store one and two bits of data per cell, respectively.
The SSDPE2KE076T801 SSD uses TLC technology, which enables it to store up to 7.68 Terabytes (TB) of data. TLC technology also provides a good balance between performance, cost, and capacity, making it a popular choice for SSDs.
General Information about this Intel SSDPE2KE076T801
- Manufacturer: Intel
- Part Number or SKU# SSDPE2KE076T801
- Interface: PCI Express
- Product Type: Solid State Drive
Technical Feature for 7.68TB Solid State Drive
- Storage Capacity: 7.68TB
- Form Factor: U.2 15MM
- Lithography: 64-LAYER 3D TLC NAND
- Nand Flash Memory Type: 20nm Multi-Level Cel
- Shock: 1000 G
- MTBF: 2000000 HOURS
Performance of NVMe SSD
- Sequential Read: 3200 MBPS
- Sequential Write: 3200 MBPS
- Random Read (100% SPAN): 640000 IOPS
- Random Write (100% SPAN): 220000 IOPS
- Sequential Read (up to) 3200 MB/s
- Sequential Write (up to) 3200 MB/s
- Random Read (100% Span) 640000 IOPS
- Random Write (100% Span) 220000 IOPS
- Latency Read 77 µs
- Latency Write 18 µs
- Power – Active 14.8W
- Power – Idle 5W
- 128k Sequential Read/Write: Up to 3200/3200 MB/s
- Random 4KB Read/Write: Up to 654K/220K IOPs
Reliability of PCI-E SSD
- Vibration – Operating: 2.17GRMS
- Vibration – Non-Operating: 3.13GRMS
- Shock (Operating and Non-Operating: 1000G
- Operating Temperature Range: 0°C to 55°C
- Endurance Rating (Lifetime Writes): 44.25 PBW / 44,250 TBW
- Mean Time Between Failures (MTBF): 2 million hours
- Uncorrectable Bit Error Rate (UBER): 1 sector per 10^-17 bits read
Advanced Technologies
- Enhanced Power Loss Data Protection: Yes
- Hardware Encryption: AES 256-bit
- High Endurance Encryption: Yes
- Temperature Monitoring and Logging: Yes
- End-to-End Data Protection: Yes
Choose the DC P4610 for Data Center Storage
- With the increased density of 64-layer Intel® 3D NAND and
- Enhanced firmware features, the DC P4610 is built to handle
- Mixed workloads and beyond.
- The DC P4610 creates a greater
- Quality of service, bandwidth, and performance, leading data
- Centers through their evolving transformation
In short, the Intel SSDPE2KE076T801 is a remarkable storage device, combining cutting-edge technology, substantial storage capacity, and high-speed data transfer. Its advanced features cater to diverse industries and applications, making it a sought-after solution for data-intensive tasks. Understanding its technical specifications and capabilities can assist users and businesses in making informed decisions about their storage needs. Intel’s continuous innovation in SSD technology ensures that such high-capacity, high-performance storage solutions are readily available for the evolving demands of the digital world.
