Description

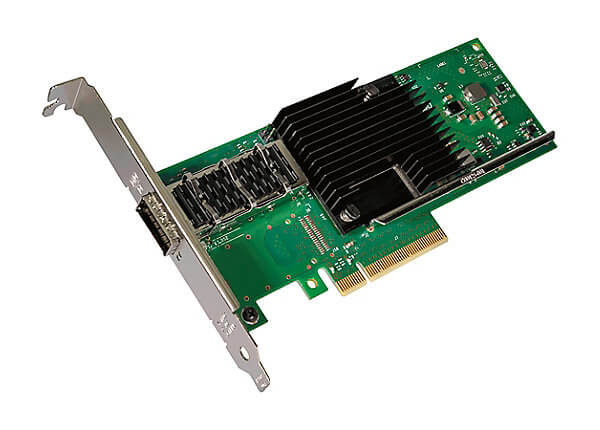

Product Details of the Intel XL710-QDA1
The Intel XL710-QDA1 Ethernet Adapter is a PCIe 3.0 x8 Ethernet Converged Network Adapter that is designed to deliver high performance and low latency for Ethernet networks. The XL710-QDA1 is built using Intel’s latest technology, and it is ideal for use in cloud computing, data centers, and other high-performance networking applications.
10/40 GBE Capability
The XL710-QDA1 Ethernet Adapter is capable of delivering both 10GbE and 40GbE network speeds, making it a versatile solution for a wide range of networking applications. This means that the adapter can handle high-bandwidth workloads, such as video streaming, large file transfers, and virtualization, with ease.
Converged Network Adapter
The XL710-QDA1 Ethernet Adapter is a converged network adapter, which means that it can handle multiple types of traffic simultaneously. This includes Ethernet, iSCSI, and FCoE traffic. By combining these different types of traffic onto a single adapter, the XL710-QDA1 can help to reduce the number of adapters needed in a system, which can reduce costs and simplify the network design.
PCIe 3.0 x8 Interface
The XL710-QDA1 Ethernet Adapter is designed to connect to a PCIe 3.0 x8 interface, which provides a high-speed connection to the host system. This interface is compatible with a wide range of servers and workstations, and it provides a high level of performance and low latency.
Virtualization Support
The XL710-QDA1 Ethernet Adapter is designed to support virtualization, which makes it ideal for use in virtualized environments such as cloud computing and data centers. By supporting virtualization, the adapter can help to improve network performance and reduce latency, which can improve the overall performance of the virtualized environment.
Power Efficiency
The XL710-QDA1 Ethernet Adapter is designed to be power efficient, which makes it ideal for use in large-scale data center environments. The adapter includes a number of power management features, including Energy Efficient Ethernet (EEE) and DMA Coalescing, which can help to reduce power consumption and improve overall system efficiency.
Compatibility
The XL710-QDA1 Ethernet Adapter is compatible with a wide range of operating systems, including Windows, Linux, and VMware. This makes it easy to integrate into existing systems, and it ensures that the adapter can be used in a wide range of environments.
Overall, the Intel XL710-QDA1 Ethernet Converged Network Adapter is a powerful and reliable solution for high-speed network connectivity. With its 10/40 GBE capability, converged network adapter functionality, PCIe 3.0 x8 interface, virtualization support, power efficiency, and wide compatibility, the XL710-QDA1 is an ideal solution for a wide range of networking applications. Whether you are building a cloud computing environment, designing a data center, or looking to improve network performance in your organization, the XL710-QDA1 Ethernet Adapter is a versatile and powerful solution that can help you achieve your goals.
General Information about the Intel XL710-QDA1
- Manufacturer: Intel
- Part Number or SKU# XL710-QDA1
- Product Type: Network Adapter
- Form Factor : Plug-In Card – Low Profile
- Interface (Bus) Type : PCI Express 3.0 X8
Networking
- Ports : 40 Gigabit QSFP[+ X 1
- Connectivity Technology : Wired
- Data Link Protocol : 40 GIGABIT LAN
- Data Transfer Rate : 40 GBPS
- Network / Transport Protocol : TCP/IP, UDP/IP, ISCSI
- Remote Management Protocol : SNMP, RMON
- Status Indicators : Port Transmission Speed, Link/Activity
- Features : Flow Control, Vlan Support, Packet Filtering, Ipv6 Support, Tcp/Ip Offloading, Quality Of Service (Qos), Virtual Machine Device Queues (Vmdq), Ipv4 Support, Teaming Support, Pxe Support, Large Send Offload (Lso), Giant Send Offload (Gso), Receive Side Scaling (Rss), Single Root I/O Virtualization (Sr-Iov), Data Center Bridging (Dcb), Adaptive Load Balancing (Alb), Energy Efficient Ethernet, Tcp Segmentation Offload (Tso), Checksum Offload Support, Extended Message-Signaled Interrupts (Msi-X), Udp/Ip Offloading, Watch Dog Timer (Wdt), Fcoe Support, Iscsi Boot, Virtual Ethernet Port Aggregator (Vepa)
- Compliant Standards : IEEE 802.3, IEEE 802.1Q, IEEE 802.1P, IEEE 802.3AD (LACP), IEEE 802.1AS, IEEE 802.1QBG
Expansion / Connectivity
- Interfaces : 1 X 40GB Ethernet – QSFP+
