Description
More Specification of PCI-E Adapter

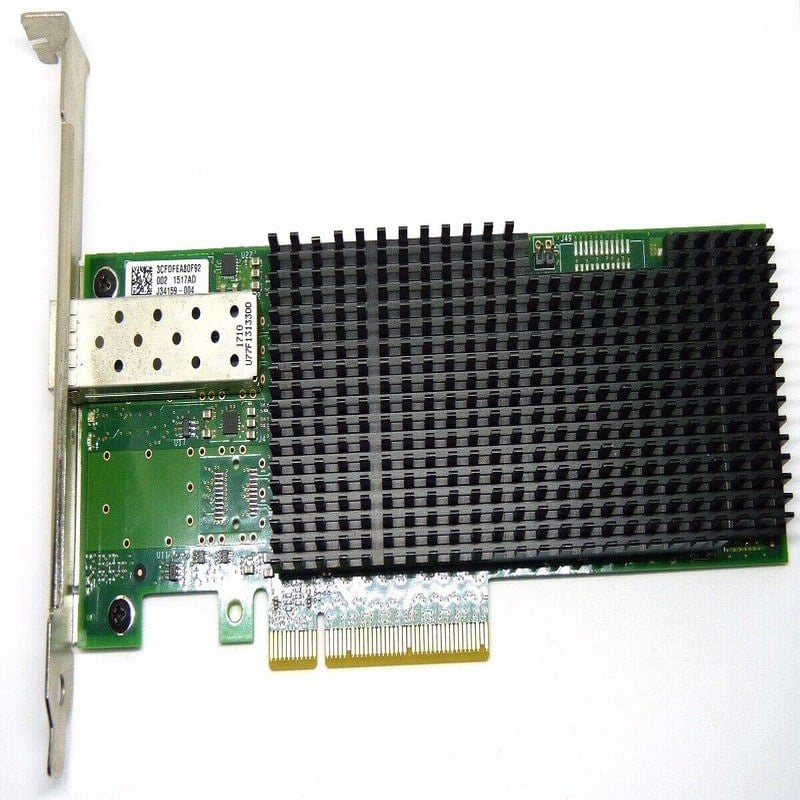

The XXV710DA1 Intel 25GBPS PCIE Ethernet Converged Network Adapter is a high-performance network adapter designed for use in servers and workstations. It provides 25 Gbps of network bandwidth, allowing for faster data transmission and improved network performance.
The XXV710DA1 uses a PCI Express (PCIe) interface, which allows for fast and efficient data transfer between the adapter and the host computer. The adapter also supports advanced features such as Quality of Service (QoS) and virtualization, allowing for more efficient data transmission and improved network scalability.
The adapter also supports advanced Ethernet features such as VLAN tagging, jumbo frames, and NIC partitioning, which can help to improve network performance and security.
The adapter also supports Intel’s Advanced Data Stream Detection (ADSD) technology which helps to optimize the performance of the adapter in environments where data streams are variable. It also includes Intel’s Virtual Machine Device Queues (VMDq) technology, which helps to improve the performance of virtualized environments.
High Performance for 25GBPS Adapter
The Intel XXV710DA1 25 Gbps Ethernet Converged Network Adapter is designed to provide high-performance network connectivity for data center, cloud, and enterprise environments. It supports 25 Gbps Ethernet, which is faster than 10 Gbps Ethernet and provides low latency, high throughput, and low power consumption. Additionally, it supports various features such as VXLAN, NVGRE, and Geneve offloads which enables virtualization of the network. It also supports advanced features such as Quality of Service (QoS), Virtual Machine Device Queues (VMDq) and Single Root I/O Virtualization (SR-IOV) to enhance network performance and security.
General Compatibility
The XXV710DA1 Intel 25GBPS PCI-E Ethernet Converged Network Adapter is compatible with systems that have a PCI Express slot and a supported operating system. The adapter supports multiple operating systems, including Windows, Linux, and VMware. It is also compatible with various virtualization technologies such as VMware ESXi, Microsoft Hyper-V, and Citrix XenServer. It is important to check the system’s compatibility and operating system’s support before installing the adapter.
Product Details
Manufacturer: Intel
MPN: XXV710DA1
Type: Networking
Networking Type:
Network Adapter
Product Name: PCI-X
SKU: XXV710DA1
Dimensions (L x W x H): 6.9 x 16.7 x 19.6 Centimeters
Networking
Form Factor : Plug-In Card Low Profile
Interface (Bus) Type : PCI Express 3.0 X8
PCI Specification Revision : PCI-E 3.0
Ports : 25 Gigabit SFP28 X 1
Connectivity Technology : Wired
Cabling Type : Ethernet 25GBase-Sr, Ethernet 25GBase-Lr
Data Link Protocol : 25 Gigabit LAN
Data Transfer Rate : 25 GBPS
Network / Transport Protocol : ISCSI, NFS
Status Indicators : Port Transmission Speed,
Link/Activity
Features : MPLS Support, VLAN Support, Ipv6
Support, TCP/IP Offloading, Quality Of Service (QOS), Virtual Machine Device
Queues (VMDQ), Ipv4 Support, Single Root I/O Virtualization (SR-IOV), Adaptive
Load Balancing (ALB), Checksum Offload Support, Extended Message-Signaled
Interrupts (MSI-X), UDP/Ip Offloading, Virtualization Technology For
Connectivity (Vt-C), Data Direct I/O Technology (DDIO), ISCSI Boot, Virtual
Extensible LAN (VXLAN), Network Virtualization Using Generic Routing
Encapsulation (NVGRE), Intel Flow Director, Flexible Port Partitioning (FPP),
Intelligent Offloads
Compliant Standards : Ieee 802.1q, Ieee 802.1p,
Ieee 802.3ad (Lacp), Ieee 802.1as, Ieee 802.1qbg, Ieee 802.3by
Expansions And Connectivity:
Interfaces : 1 X 25GB Ethernet SFP28.
