Description
Product Overview

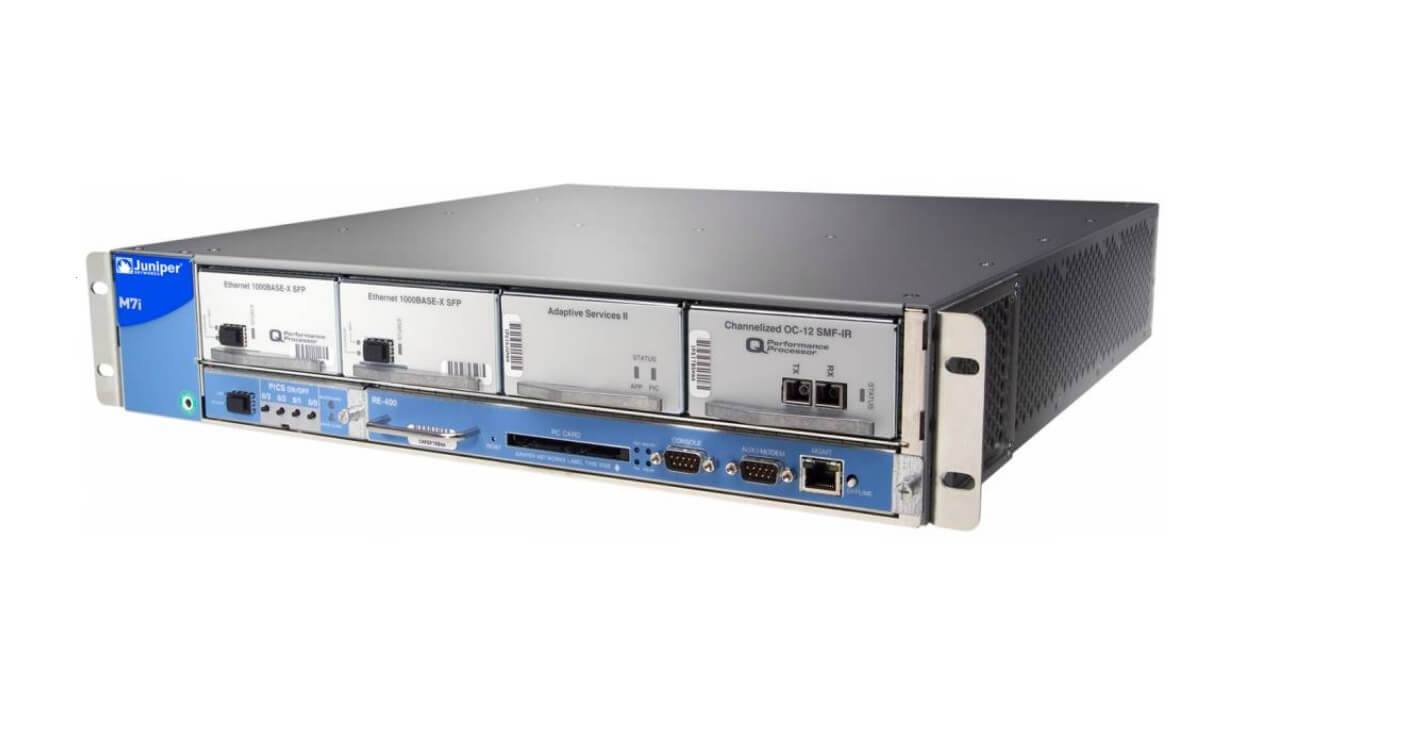

The M7IBASE-AC-1GE Juniper Multiservice Router is a powerful and flexible networking device designed to provide high-performance connectivity and advanced network services to businesses and service providers. It is a compact and modular router that offers scalability, reliability, and security to meet the demands of modern networks. In this article, we will explain the features and capabilities of the M7IBASE-AC-1GE Juniper Multiservice Router.
Design and Hardware Components
The M7IBASE-AC-1GE Juniper Multiservice Router is a modular router that consists of several hardware components that work together to provide high-performance network services. These components include:
- 4 X Pic – The Packet Input/Output Card (PIC) provides the physical interface between the router and the network. The M7IBASE-AC-1GE comes with four PIC slots, which can accommodate different types of interface cards, such as Ethernet, ATM, or T1/E1.
- 1 X Forwarding Engine Board – The Forwarding Engine Board (FEB) is the brain of the router that handles the packet forwarding and processing tasks. The M7IBASE-AC-1GE has a single FEB that supports up to 1 Gbps of forwarding capacity.
- 1 X Route Processor – The Route Processor (RP) is responsible for managing the routing protocols, maintaining the routing table, and controlling the overall operation of the router. The M7IBASE-AC-1GE has a single RP that supports advanced routing protocols such as OSPF, BGP, and IS-IS.
- 1 X 10/100/1000base-T Lan – The 10/100/1000base-T LAN provides a high-speed Ethernet interface for management and control traffic. It allows administrators to access the router remotely and configure the device using a web interface or command-line interface.
Performance and Capacity
The M7IBASE-AC-1GE Juniper Multiservice Router is a high-performance device that can handle a wide range of network services and applications. It has a forwarding capacity of up to 1 Gbps and supports up to 256,000 IPv4 routes and 128,000 IPv6 routes. The router also supports advanced QoS (Quality of Service) features, such as traffic shaping and prioritization, to ensure that critical applications receive the necessary bandwidth and latency.
The M7IBASE-AC-1GE can also support multiple virtual routers, which allows service providers to offer customized network services to their customers. It also supports virtual private networks (VPNs) and MPLS (Multiprotocol Label Switching) for secure and scalable connectivity between remote locations.
Security Features
The M7IBASE-AC-1GE Juniper Multiservice Router comes with a range of advanced security features to protect the network from threats and attacks. These features include:
- Firewall – The router has an integrated stateful firewall that can filter traffic based on source and destination IP addresses, protocols, and ports. It can also perform deep packet inspection to detect and block malicious traffic.
- VPN – The router supports VPNs using IPsec and SSL protocols, which provide secure and encrypted communication between remote locations.
- Intrusion Detection and Prevention – The router can detect and prevent network attacks using advanced intrusion detection and prevention techniques. It can also block traffic from known malicious sources and prevent the spread of malware.
- Access Control – The router has a range of access control features that allow administrators to control who can access the network and what they can do. This includes user authentication, authorization, and accounting.
Main Specification about the Juniper M7IBASE-AC-1GE
- Manufacturer: Juniper
- Part Number or SKU# M7IBASE-AC-1GE
- Product Model:M7I
- Product Name: M7I Multiservice Router
- Device Type: Multiservice Router
I/O Expansions
- Expansion Slot Type: Forwarding Engine Board, PIC, Route Processor.
Interfaces/Ports
- Number Of Network (RJ-45) Ports: 1
- Total Number Of Ports: 1
Network & Communication
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 10/100/1000base-T
Power Description
- Input Voltage: 110 V AC,220 V AC
- Power Source: Power Supply.
Dimensions & Weight
- Depth: 18 Inch
- Height: 3.5 Inch
- Width: 17.5 Inch
