Description

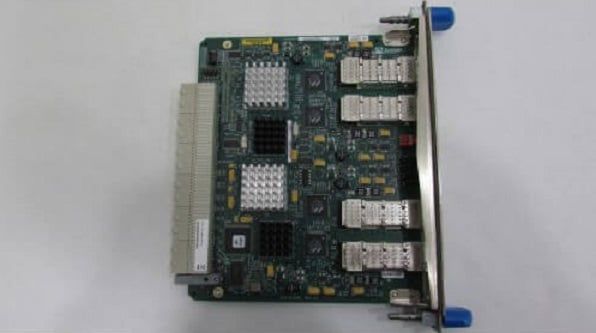

Product Overview of the Juniper PD-4XGE-XFP
The PD-4XGE-XFP is a physical interface card designed for use with Juniper Networks routers and switches. The card provides four 10 Gigabit Ethernet (10 GBE) ports, each equipped with XFP transceivers that support a range of optical and copper interfaces. In this article, we will explore the features and benefits of the PD-4XGE-XFP Juniper 4Port 10 GBE Type 4 Physical Interface Card in detail.
Port Configuration
The PD-4XGE-XFP card features four 10 GBE ports, each equipped with XFP transceivers. XFP transceivers support a range of optical and copper interfaces, including single-mode fiber, multimode fiber, and copper Twinax cables. The card supports auto-negotiation, which allows it to automatically determine the optimal speed and duplex settings for each connected device.
High-Speed Connectivity
The PD-4XGE-XFP card provides high-speed connectivity to network devices, with each port capable of delivering up to 10 Gbps of data transfer speeds. High-speed connectivity is essential for businesses that require fast and reliable network connections, especially for applications such as video conferencing, high-definition streaming, and large file transfers.
Compatibility
The PD-4XGE-XFP card is designed to be compatible with a range of Juniper Networks routers and switches, including the Juniper MX Series routers and EX Series switches. The card can be easily installed into the expansion slot of the router or switch, providing an easy way to upgrade the router or switch’s connectivity capabilities.
Flexibility
The PD-4XGE-XFP card provides a flexible connectivity solution for businesses, with support for a range of optical and copper interfaces. This flexibility allows businesses to choose the most suitable interface for their specific networking requirements. For example, businesses can choose single-mode fiber for long-distance connectivity or copper Twinax cables for short-distance connectivity.
Hot-Swappable
The PD-4XGE-XFP card is hot-swappable, which means that it can be installed or removed from the router or switch while the device is in operation. This feature provides businesses with the flexibility to upgrade their network connectivity without interrupting their operations.
Layer 2 and Layer 3 Functionality
The PD-4XGE-XFP card supports both Layer 2 and Layer 3 functionality, providing businesses with the flexibility to configure the card to meet their specific networking requirements. Layer 2 functionality includes support for VLANs, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP), while Layer 3 functionality includes support for IP routing protocols such as OSPF and BGP.
Jumbo Frame Support
The PD-4XGE-XFP card supports jumbo frames, which are Ethernet frames with a payload size greater than the standard 1500-byte frame size. Jumbo frames can be useful in certain applications, such as video streaming and large file transfers, as they can help to reduce network latency and improve network performance.
Low Power Consumption
The PD-4XGE-XFP card is designed to be power-efficient, with low power consumption that helps businesses reduce their energy costs. The card supports Energy Efficient Ethernet (EEE) and IEEE 802.3az, which are energy-saving features that reduce power consumption during periods of low network traffic.
General Information about
the Juniper PD-4XGE-XFP
- Manufacturer: Juniper
- Part Number or SKU# PD-4XGE-XFP
- Product Type: Interface Card
- Application/Usage : Data Networking
Media & Performance
- Connectivity Media : Optical Fiber 10GBase-X
- Data Transfer Rate : 10 Gbps Gigabit Ethernet
I/O Expansions
- Expansion Slots : 4 x XFP
- Management SNMP
- VLAN
