Description

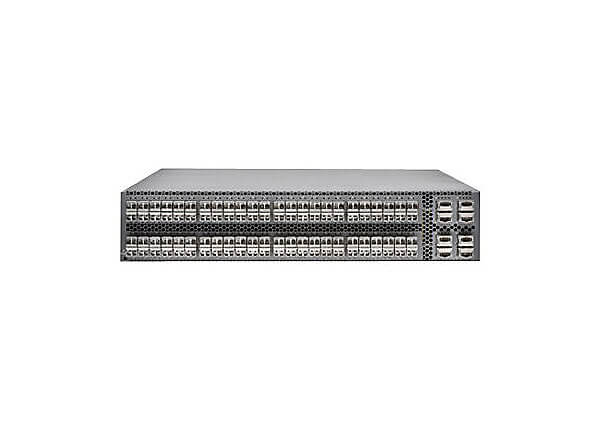

Product overview of the Juniper QFX5100-96S-AFO
The QFX5100-96S-AFO is a Juniper Layer 3 switch that offers a high-performance, reliable, and scalable solution for enterprise data centers and service provider networks. It is a manageable switch with 104 expansion slots, 10Gbase-X interface, and rack-mountable design that offers flexibility in network design and deployment.
In this article, we will explain the features and benefits of the QFX5100-96S-AFO switch in detail, including its design, capabilities, and use cases.
Design
The QFX5100-96S-AFO switch has a compact and rack-mountable design that allows it to be easily installed in data center racks. It measures 1.73 inches in height, 17.32 inches in width, and 22.4 inches in depth, and weighs approximately 20.7 pounds. The switch has a black matte finish that gives it a professional look, and its front panel features 96 10G SFP+ ports, which can be used to connect servers, storage devices, and other network devices.
The rear panel of the QFX5100-96S-AFO switch features four 40G QSFP+ ports and two 100G QSFP28 ports, which can be used to connect other switches or routers in the network. Additionally, the switch has a console port, USB port, and RJ-45 management port for easy management and configuration.
Capabilities
The QFX5100-96S-AFO switch is a Layer 3 switch that supports a range of advanced networking features, including virtualization, automation, and security. The switch is built on Juniper’s Junos operating system, which provides a modular and flexible platform for network management.
The QFX5100-96S-AFO switch supports Virtual Chassis technology, which allows multiple switches to be interconnected and managed as a single logical unit. This provides a simplified network design and management, and reduces the risk of downtime due to network failures. The switch also supports Junos Automation, which enables the automation of routine network tasks, such as provisioning, troubleshooting, and reporting.
The QFX5100-96S-AFO switch has a flexible and scalable design, with 104 expansion slots that can be used to install additional modules and ports as needed. This allows the switch to be easily customized to meet the specific needs of different network environments.
Use Cases
The QFX5100-96S-AFO switch is a versatile switch that can be used in a range of network environments, including enterprise data centers, service provider networks, and cloud environments.
In enterprise data centers, the QFX5100-96S-AFO switch can be used to connect servers, storage devices, and other network devices. Its high-performance and low-latency design ensures that data is transmitted quickly and efficiently, while its flexible and scalable design allows it to be easily customized to meet the changing needs of the enterprise.
In service provider networks, the QFX5100-96S-AFO switch can be used as a backbone switch to connect different network segments and provide high-speed connectivity to end users. Its advanced networking features, such as Virtual Chassis and Junos Automation, make it easy to manage and troubleshoot the network, while its scalable design allows it to handle the growing demands of service provider networks.
In cloud environments, the QFX5100-96S-AFO switch can be used to provide high-speed connectivity between different virtual machines and cloud services. Its flexible and scalable design allows it to be easily integrated into different cloud architectures, while its advanced networking features ensure that data is transmitted securely and efficiently.
General Information about the Juniper QFX5100-96S-AFO
- Manufacturer: Juniper
- Model Number or SKU# Qfx5100-96s-Afo
- Product Type: Layer 3 Switch
- Technical Information
Physical Characteristics
- Compatible Rack Unit: 1u
- Depth: 17.4
- Form Factor: Rack-Mountable
- Height: 3.5
- Weight (Approximate): 32.50 Lb
- Width: 22.4
Power Description
- Input Voltage: 110 V Ac
- Input Voltage: 220 V Ac
- Poe (Rj-45) Port: No
- Power Source: Power Supply
- Redundant Power Supply: Yes
I/O Expansions
- Expansion Slot Type: Qsfp+
- Expansion Slot Type: Sfp+
- Number Of Sfp+ Slots: 96
- Number Of Total Expansion Slots: 104
Interfaces/Ports
- Bypass: No
- Ethernet Technology: 10 Gigabit Ethernet
- Ethernet Technology: 40 Gigabit Ethernet
- Lre Port: No
- Management Port: Yes
- Modular: No
- Poe (Rj-45) Port: No
- Port/Expansion Slot Details: 8 X 40 Gigabit Ethernet Expansion Slot
- Port/Expansion Slot Details: 96 X 10 Gigabit Ethernet Expansion Slot
- Token Ring Port: No
- Usb: Yes
Management & Protocols
- Manageable: Yes
- Management:
- Command Line Interface (Cli)
- Web-Based Management
- Telnet
- Snmp V1/2/3
- Sflow
- Mib
- Vlan
- Dhcp
- Qos
Media & Performance
- Ethernet Technology: 10 Gigabit Ethernet
- Ethernet Technology: 40 Gigabit Ethernet
- Network Technology: 10gbase-X
- Network Technology: 40gbase-X
Memory
- Standard Memory: 8 Gb
