Description

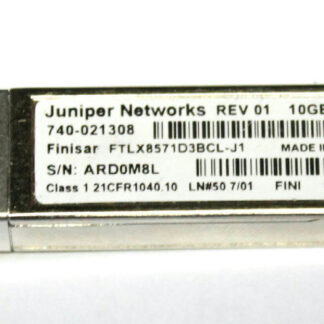

Overview of the Juniper SFPP-10GE-SR
The SFPP-10GE-SR is a type of SFP+ module used in networking equipment manufactured by Juniper. It is designed to provide high-speed data transmission at a rate of 10 Gigabits per second (Gbps) over short distances using multi-mode fiber (MMF) cables. This article will provide a detailed explanation of the features and specifications of the SFPP-10GE-SR module.
Features
- The SFPP-10GE-SR SFP+ module is a pluggable transceiver that provides data transmission capabilities for networking equipment. It is compatible with various Juniper devices that support SFP+ modules. The module is designed to operate at a wavelength of 850nm and uses MMF cables for transmission. It has a maximum transmission distance of 300 meters and is ideal for use in local area networks (LANs) and data centers.
- The SFPP-10GE-SR module is a hot-swappable device, which means it can be installed or removed while the equipment is running without the need to power off the device. This feature allows for easy installation and maintenance of networking equipment without causing any disruptions to the network.
- The module also supports digital diagnostic monitoring (DDM), which provides real-time information about the module’s performance and status. This feature allows for the monitoring of the module’s temperature, voltage, and power consumption. DDM can also provide information about the optical signal strength and signal quality, which can be used to diagnose problems and optimize the network performance.
Specifications
- The SFPP-10GE-SR module is compliant with the SFP+ MSA (Multi-Source Agreement), which ensures compatibility with other SFP+ modules that conform to the same standard. The module is also compliant with IEEE 802.3ae, which is the standard for 10 Gigabit Ethernet (10GbE) over fiber optic cables.
- The module operates at a wavelength of 850nm and uses MMF cables with an OM3 or OM4 rating. OM3 and OM4 cables are designed to support high-speed data transmission over short distances. OM3 cables can support transmission distances of up to 300 meters, while OM4 cables can support distances of up to 400 meters.
- The SFPP-10GE-SR module has a data transfer rate of 10Gbps and uses a 10GBASE-SR (Short Reach) Ethernet standard. This standard is designed for use in LANs and data centers, and supports transmission distances of up to 300 meters over MMF cables.
Overall, the SFPP-10GE-SR SFP+ module is a high-speed data transmission device used in networking equipment manufactured by Juniper. It is designed to provide data transfer rates of up to 10Gbps over short distances using MMF cables. The module is hot-swappable, supports DDM, and is compliant with the SFP+ MSA and IEEE 802.3ae standards. It is an ideal choice for use in LANs and data centers, where high-speed data transmission over short distances is required.
General Information about the Juniper SFPP-10GE-S
- Manufacturer: Juniper Networks
- Model Number or SKU# SFPP-10GE-SR
- Brand Name Juniper
- Product Name 10GBase-SR SFP+ Module
- Product Type XFP
Technical Information
- Application/Usage Data Networking
Interfaces/Ports
- Interfaces/Ports 1 x 10GBase-SR
- Interfaces/Ports Details 1 x 10GBase-SR Network
Media & Performance
- Connectivity Media Multi-mode Optical Fiber 10GBase-SR
- Data Transfer Rate 10 Gbps Gigabit Ethernet
Miscellaneous
- Additional Information Distance: 300 m
- Wavelength: 850 nm
- Compatibility Juniper MX960 Router
- Juniper MX480 Router
- Juniper MX240 Router.
