Description
Product Overview

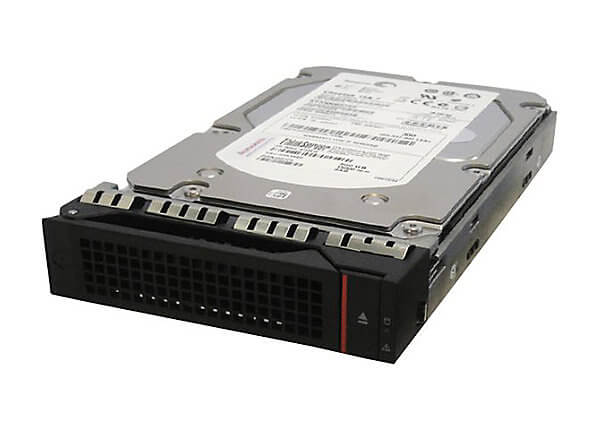

The 01DC402 Lenovo 1.8TB 10K RPM SAS 12GBPS 2.5Inch Hot-Swap Hard Drive is a high-performance, high-capacity hard drive designed for enterprise-level servers and storage systems. It features a large 1.8TB capacity and fast 10K RPM spindle speed, providing fast data access and high storage density. Additionally, it has a SAS 12GBPS interface for high-speed data transfer and a hot-swap design for easy replacement and maintenance. This hard drive is a suitable option for data centers, virtualization and business-critical applications that require robust storage and high performance.
Interface
The 01DC402 Lenovo 1.8TB 10K RPM SAS 12GBPS 2.5Inch Hot-Swap Hard Drive features a SAS (Serial Attached SCSI) interface. SAS is a high-speed data transfer interface that is commonly used in enterprise-level servers and storage systems. It provides a faster data transfer rate of 12GBps compared to SATA, which is 6GBps. SAS also supports full-duplex data transfer, allowing data to be sent and received at the same time. It also supports multiple logical devices on a single physical connector, which enables increased scalability and easier cable management. Additionally, SAS is fully backwards compatible with SATA, so it can be used in environments that have both SAS and SATA devices.Hot-Swap Feature
The 01DC402 Lenovo 1.8TB 10K RPM SAS 12GBPS 2.5Inch Hot-Swap Hard Drive features a hot-swap design, which allows for easy replacement and maintenance of the hard drive without having to power down the system. This feature allows for minimal downtime and can be particularly useful in enterprise-level servers and storage systems where uptime is critical.
With the hot-swap feature, the hard drive can be replaced while the system is still running, and the new drive will be automatically detected and integrated into the system. This eliminates the need to shut down the system, which can save time and reduce downtime. The hot-swap feature also makes it easy to replace failed hard drives or upgrade storage capacity without disrupting the operation of the system.
It’s also important to note that the hot-swap feature requires a compatible hot-swap bay in the server or storage system to work properly, please consult with the server or storage system documentation to ensure compatibility.
Main Specification about the Lenovo 01DC402
- Manufacturer: Lenovo
- Part Number or SKU # 01DC402
- Device Type:Hot-Swap Hard Drive
Performance
- Capacity : 1.8 TB
- Form Factor : 2.5Inch
- Interface : SAS 12GBPS
- Drive Transfer Rate : 1.2 GBPS (External)
- Spindle Speed : 10K RPM
Expansion & Connectivity
- Interfaces : 1 X SAS 12 GB/S
- Compatible Bay : 2.5Inch
Compatibility Information
- Designed For : Lenovo Storage D1224 4587
