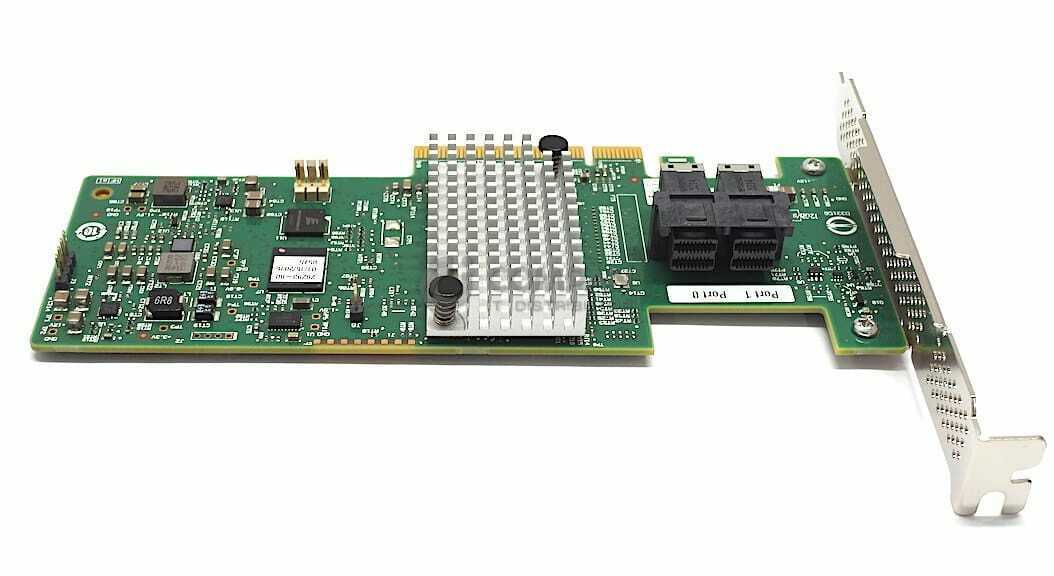

Product Overview for the Lenovo 46C9114 PCI-E Controller
The 46C9114 Lenovo Serveraid M1215 PCI-E 3.0 x8 SAS SATA Controller for System X is a crucial component in the realm of server technology, designed to enhance data storage and management capabilities. In this comprehensive guide, we will delve into the intricacies of this controller, exploring its features, functionality, and the benefits it brings to System X servers.
Understanding the Basics
What is a SAS SATA Controller?
Before we delve into the specifics of the 46C9114 model, let’s establish a foundational understanding of SAS SATA controllers. These controllers are essential components in server systems, responsible for managing the flow of data between the server and the storage devices, such as hard drives and solid-state drives (SSDs). SAS (Serial Attached SCSI) and SATA (Serial ATA) are two different types of interfaces commonly used for connecting storage devices to servers.
SAS controllers are known for their high performance and reliability, making them suitable for enterprise-level applications. On the other hand, SATA controllers are more commonly found in consumer-grade devices but are still widely used in servers for certain applications.
PCI-E 3.0 x8 Interface
The 46C9114 Lenovo Serveraid M1215 utilizes the PCI Express (PCI-E) 3.0 x8 interface. PCI Express is a high-speed serial computer expansion bus standard that allows various hardware components, including graphics cards, network cards, and storage controllers, to communicate with the CPU and motherboard.
The ‘x8’ designation refers to the number of lanes in the PCI-E interface. In this case, the controller utilizes eight lanes, providing ample bandwidth for efficient data transfer between the controller and other system components.
Features of 46C9114 Lenovo Serveraid M1215
- SAS and SATA Compatibility: One of the standout features of the 46C9114 model is its compatibility with both SAS and SATA devices. This versatility allows system administrators to configure their storage infrastructure based on the specific needs of their applications. Whether the requirement is for high-performance SAS drives or cost-effective SATA drives, this controller accommodates a range of storage options.
- RAID Support: RAID (Redundant Array of Independent Disks) is a crucial technology for data protection and performance optimization. The 46C9114 Lenovo Serveraid M1215 offers support for various RAID levels, including RAID 0, RAID 1, RAID 10, and RAID 5. This enables users to implement different RAID configurations based on their priorities, whether it’s maximizing storage capacity, improving read and write speeds, or enhancing data redundancy.
- Flash-backed Cache: The inclusion of a flash-backed cache is a notable feature that contributes to data integrity and reliability. In the event of a power failure or unexpected system shutdown, the flash-backed cache ensures that cached data is preserved and written to the storage devices once the system is operational again. This is crucial for preventing data loss and maintaining the consistency of stored information.
- PCIe 3.0 Performance: The utilization of the PCI-E 3.0 interface ensures high-performance data transfer between the controller and the server’s other components. With a higher data transfer rate compared to previous PCIe generations, PCIe 3.0 enhances overall system responsiveness and is particularly beneficial for applications that demand rapid access to large datasets.
- System X Compatibility: The 46C9114 Lenovo Serveraid M1215 is specifically designed for compatibility with IBM’s System X servers. System X is a family of high-performance servers tailored for enterprise environments. The seamless integration of this SAS SATA controller with System X servers ensures optimized performance and reliability within the IBM server ecosystem.
Advantages of Using 46C9114 Lenovo Serveraid M1215
- Improved Data Integrity: The inclusion of features like flash-backed cache enhances data integrity by safeguarding against data loss in the event of power failures or unexpected system shutdowns. This is crucial for maintaining the reliability of critical business data and preventing potential data corruption.
- Versatility in Storage Configurations: The compatibility with both SAS and SATA devices provides system administrators with the flexibility to design storage configurations that align with the performance and budgetary requirements of their specific use cases. Whether it’s deploying high-performance SAS drives for mission-critical applications or cost-effective SATA drives for archival storage, the 46C9114 model accommodates diverse storage needs.
- Performance Optimization with RAID: The support for various RAID levels allows users to optimize storage performance based on their priorities. RAID 0, for example, maximizes storage capacity and read/write speeds, while RAID 1 enhances data redundancy by mirroring data across multiple drives. The ability to implement different RAID configurations provides a tailored approach to balancing performance and data protection.
- Seamless Integration with System X Servers: Designed specifically for compatibility with IBM’s System X servers, the 46C9114 Lenovo Serveraid M1215 ensures seamless integration and optimized performance within the System X server ecosystem. This integration simplifies the deployment process for System X users and enhances the overall reliability of the server-storage infrastructure.
Performance and Reliability of Serveraid PCI-E
The performance and reliability of the Lenovo 46C9114 Serveraid M1215 PCI-E host bus adapter (HBA) are generally high.
In terms of performance, the controller supports data transfer rates of up to 12 Gbps SAS and 6 Gbps SATA. This allows for high-speed data transfer between the host system and connected storage devices. Additionally, the controller supports RAID levels 0, 1, 10, and 5, which can also improve performance by allowing multiple hard drives to be combined into a single logical unit and providing data redundancy.
In terms of reliability, the controller supports advanced features such as advanced data protection and data security, as well as support for Self-Encrypting Drive (SED) and Secure Erase. These features can help protect data in the event of a drive failure or other hardware failure, and ensure that data is securely erased when a drive is retired or replaced.
It’s important to note that the actual performance and reliability of the controller will depend on the specific configuration of the server it is installed in, as well as the type and capacity of the storage devices it is connected to. Additionally, the performance and reliability of the controller will be affected by the specific workloads running on the server and the performance requirements of the applications.
The Lenovo Serveraid M1215 PCI-E host bus adapter has high performance and reliability due to its support for data transfer rates of up to 12 Gbps SAS and 6 Gbps SATA, RAID support, and advanced features such as advanced data protection, data security, and support for Self-Encrypting Drive (SED) and Secure Erase.
General Compatibility
The Lenovo 46C9114 Serveraid M1215 PCI-E host bus adapter (HBA) is designed to be specifically compatible with Lenovo System X servers. It connects the host system to SAS and SATA storage devices and it is based on the PCI-E 3.0 x8 interface. It supports data transfer rates of up to 12 Gbps SAS and 6 Gbps SATA.
In terms of operating system compatibility, the controller supports a wide range of operating systems, including Windows, Linux, and VMware. This allows it to be used in a variety of different environments, including enterprise data centers, cloud deployments, and other high-performance computing applications.
The controller also supports advanced features such as advanced data protection and data security, as well as support for Self-Encrypting Drive (SED) and Secure Erase. These features can help protect data in the event of a drive failure or other hardware failure, and ensure that data is securely erased when a drive is retired or replaced.
It’s important to note that while the Lenovo Serveraid M1215 PCI-E is designed to be specifically compatible with Lenovo System X servers, the specific compatibility will depend on the hardware and firmware of the host system, as well as the operating system and any other software that is running on the system. It’s recommended to check the manufacturer’s documentation for specific compatibility information and to consult with the manufacturer or a qualified IT professional to ensure compatibility before installing the controller.
General Information about this Lenovo 46C9114
- Manufacturer: Lenovo
- Part Number or SKU# 46C9114
- Product Type: SAS-SATA
- Product Name: Controller
Technical Specifications
- Controller Type: Serial ATA / SAS
- Interface: SATA 6Gb/s / SAS 12Gb/s (Low Profile)
- Recommended Machine Type: Server
- Platform: PC
- Bus Type: PCIe 3.0 x8
- Data Transfer Rate: 1200MBps
- Supported RAID Level: RAID 5, 50, and SED
- Form Factor: Plug-in Card
- Connector Location: Internal
- Connector Type: 36-pin 4i Mini MultiLane SAS (SFF-8087)
In short, the 46C9114 Lenovo Serveraid M1215 PCI-E 3.0 x8 SAS SATA Controller for System X stands out as a versatile and high-performance component for enhancing storage capabilities in enterprise-level servers. Its compatibility with both SAS and SATA devices, support for various RAID configurations, inclusion of flash-backed cache, and seamless integration with System X servers make it a valuable asset for system administrators aiming to optimize data storage, integrity, and performance. Whether used in large-scale data centers or smaller business environments, this SAS SATA controller plays a crucial role in maintaining the efficiency and reliability of modern server infrastructures.
