Description

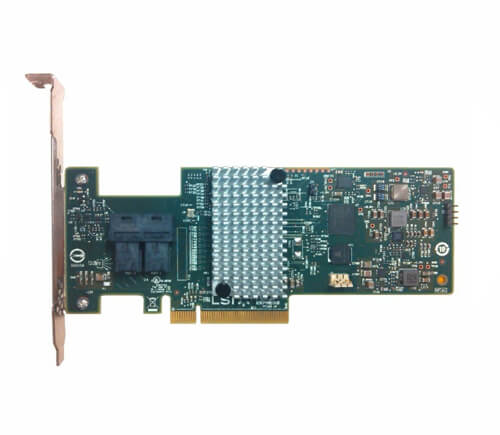

Product Overview of the PCI-E Controller Card
Lenovo 4XC0G88840 ThinkServer RAID 520i SAS 12GBPS SATA 6GBPS PCI-E Controller Card is an advanced storage controller designed for Lenovo ThinkServer systems. It is a PCIe-based RAID controller card that offers high performance and reliability for demanding server applications. The card supports both SAS and SATA hard drives and solid-state drives (SSDs), providing flexibility and scalability for various storage needs.
Key Features
The Lenovo 4XC0G88840 ThinkServer RAID 520i SAS 12GBPS SATA 6GBPS PCI-E Controller Card comes with several key features that make it an ideal choice for modern server systems.
- High Performance: The card delivers high-speed data transfer rates of up to 12 Gbps for SAS drives and 6 Gbps for SATA drives. This high performance ensures that server applications run smoothly and efficiently, even when dealing with large amounts of data.
- RAID Support: The card supports various RAID configurations, including RAID 0, 1, 10, 5, and 50. This provides users with flexible options for configuring their storage arrays for optimal performance and data protection.
- Scalability: The card supports up to 8 SAS/SATA drives, allowing for flexible and scalable storage configurations. This is particularly useful for growing businesses that need to expand their storage capacity over time.
- Easy Management: The card comes with a web-based management interface that allows users to easily configure and monitor their storage arrays. This interface provides real-time information about the status of the array, including disk health and RAID configuration.
- Data Protection: The card provides advanced data protection features, including hot-spare support and automatic data rebuild. These features ensure that data remains safe and accessible, even in the event of a drive failure.
Compatibility
The Lenovo 4XC0G88840 ThinkServer RAID 520i SAS 12GBPS SATA 6GBPS PCI-E Controller Card is compatible with the following Lenovo ThinkServer systems:
- ThinkServer RD350
- ThinkServer RD450
- ThinkServer RD550
- ThinkServer RD650
- ThinkServer TD350
- ThinkServer TD450
- ThinkServer TD550
- ThinkServer TD650
In Summary, the Lenovo 4XC0G88840 ThinkServer RAID 520i SAS 12GBPS SATA 6GBPS PCI-E Controller Card is an advanced storage controller that offers high performance and data protection features for modern server systems. It is an ideal choice for businesses that require flexible and scalable storage configurations, as well as high-speed data transfer rates. The card is also easy to manage, thanks to its web-based management interface. Overall, the Lenovo 4XC0G88840 ThinkServer RAID 520i SAS 12GBPS SATA 6GBPS PCI-E Controller Card is a reliable and efficient storage solution for demanding server applications.
General Information about the Lenovo 4XC0G88840
- Manufacturer : Lenovo
- Part Number or SKU#: 4XC0G88840
- Type : Controller
- Sub-Type : PCI-E
Technical Information
- Device Type : Storage Controller (RAID) – Plug-in Card- Low profile
- Bus Type : PCIE 3.0 X8
- InterfacE : SATA / SAS 12GB/S
- Data Transfer Rate : 1200 Mbps
- Supported Devices : Hard Drive, Disk Array (Raid), Solid State Drive
- Channel Qty : 8
- Max Storage Devices Qty : 8
- Raid Level : RAID 0, RAID 1, RAID 10, JBOD
- Designed For : Thinkserver RD350, RD450, RD550, RD650, TD350
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
