Description
Product Overview of PCI-E SAS/SATA Raid Controller

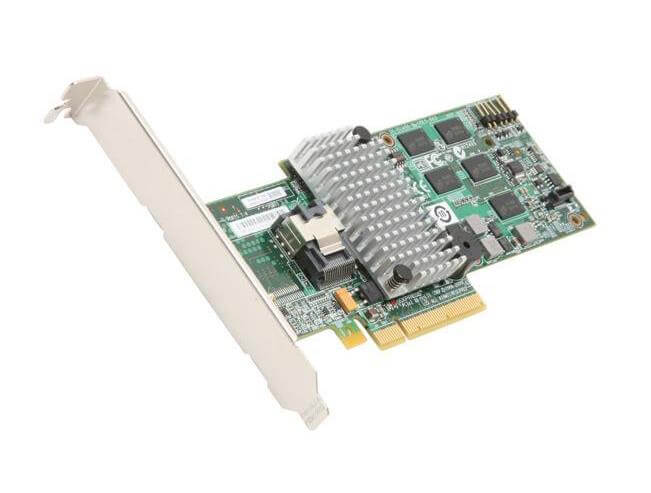

The 9260-4I LSI Logic 6GB 4-Port Internal PCI-E SAS/SATA Raid Controller Card is a hardware device designed to facilitate data storage and retrieval in computer systems. This card is an excellent addition to servers and workstations that require efficient storage solutions with high-speed data transfer capabilities. In this article, we will discuss the features and benefits of the 9260-4I LSI Logic 6GB 4-Port Internal PCI-E SAS/SATA Raid Controller Card in detail.
The 9260-4I LSI Logic 6GB 4-Port Internal PCI-E SAS/SATA Raid Controller Card is a high-performance storage solution that provides an easy and efficient way to connect storage devices such as hard drives, solid-state drives, and tape drives to a computer system. This card uses the latest Serial Attached SCSI (SAS) and Serial ATA (SATA) technologies to ensure maximum data transfer speeds of up to 6Gb/s. With four internal ports, this card allows for the connection of up to four storage devices simultaneously.
Features
The 9260-4I LSI Logic 6GB 4-Port Internal PCI-E SAS/SATA Raid Controller Card comes with several features that make it an excellent storage solution. Some of these features include:
- RAID support – This card supports several RAID levels, including RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and RAID 50. RAID technology provides data redundancy and performance enhancements, making it an ideal storage solution for businesses and enterprises.
- High-speed data transfer – The 6Gb/s data transfer rate of this card ensures that data is transferred quickly and efficiently. This speed is crucial for systems that require high data throughput rates, such as servers and workstations.
- Multiple connectivity options – The 9260-4I LSI Logic 6GB 4-Port Internal PCI-E SAS/SATA Raid Controller Card supports both SAS and SATA connectivity options, allowing users to connect a wide range of storage devices to their systems.
- Low-profile design – The card’s low-profile design makes it an ideal storage solution for small form factor systems, such as compact servers and workstations.
- Comprehensive management software – The 9260-4I LSI Logic 6GB 4-Port Internal PCI-E SAS/SATA Raid Controller Card comes with comprehensive management software that allows users to manage their storage devices easily. The software provides features such as RAID management, drive health monitoring, and system event logging.
Benefits
The 9260-4I LSI Logic 6GB 4-Port Internal PCI-E SAS/SATA Raid Controller Card offers several benefits to users. Some of these benefits include:
- High-speed data transfer – The 6Gb/s data transfer rate of this card ensures that data is transferred quickly and efficiently. This speed is crucial for systems that require high data throughput rates, such as servers and workstations.
- Enhanced data protection – The RAID technology supported by this card provides data redundancy and performance enhancements, making it an ideal storage solution for businesses and enterprises.
- Flexibility – The multiple connectivity options of this card allow users to connect a wide range of storage devices to their systems, providing flexibility and ease of use.
- Easy management – The comprehensive management software that comes with this card allows users to manage their storage devices easily. The software provides features such as RAID management, drive health monitoring, and system event logging, making it an excellent storage solution for businesses and enterprises.
General Information about the LSI Logic 9260-4I
- Manufacturer: LSI Logic
- Part Number or SKU# 9260-4I
- Type: Controller
- Sub-Type: SAS-SATA
Technical Information
- Product Type:SAS Raid Controller
- Controller Interface Type: Serial Attached SCSI
- Data Transfer Rate: 6GB/S
- Bus Type: PCI Express X8
- Raid Levels: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
- Supported Devices: Hard Drive, Disk Array (Raid)
- Drive Support: 32 X Physical
- Standard Memory: 512MB Ddr Sdram
- Form Factor: Low-Profile Plug-In Card
- Ports: 1 X Sff-8087 – Mini-SAS, 4 X Serial Attached SCSI Internal
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
