Overview of the Raid Controller

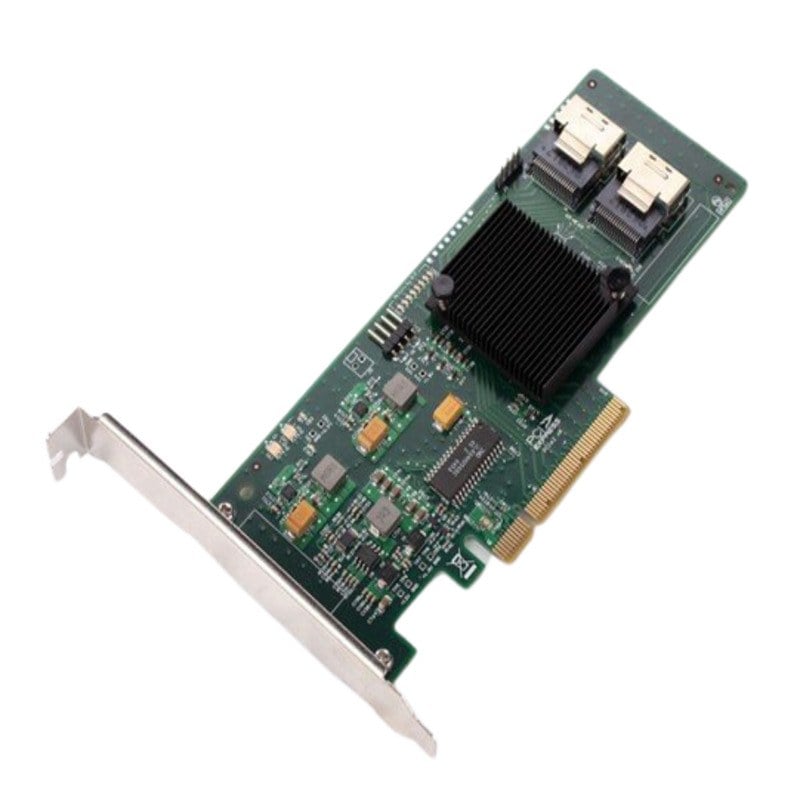

The LSI Logic LSI00194 9211-8I is a cutting-edge RAID controller that offers powerful data management capabilities. In this detailed exploration, we’ll delve into its key features, specifications, and applications. Whether you’re a tech enthusiast, IT professional, or someone exploring storage solutions, this guide aims to provide a comprehensive understanding of the LSI00194.
Understanding LSI LogicDefinition of LSI Logic
LSI Logic, a renowned technology company, has a history of developing advanced solutions for storage and networking. The LSI00194 9211-8I RAID controller is a testament to their commitment to delivering high-performance hardware for data storage.
RAID Controller Basics
A RAID (Redundant Array of Independent Disks) controller is a crucial component in a storage system. It manages multiple disk drives to enhance performance, reliability, or a combination of both. The LSI00194 is specifically designed for SAS (Serial-Attached SCSI) drives, a technology known for its speed and reliability.
Key Features6 Gigabytes (GB) Data Transfer Rate
- The LSI00194 boasts a 6GB/s data transfer rate, ensuring swift and efficient data movement within the storage system. This feature is particularly valuable in scenarios where quick access to data is critical, such as in enterprise environments or data-intensive applications.
8 Ports for Enhanced Connectivity
- With 8 internal ports, the LSI00194 offers ample connectivity for SAS drives. This is advantageous in setups requiring a large number of drives, providing flexibility in configuring RAID arrays for different purposes, from performance-focused RAID 0 to redundancy-oriented RAID 1.
PCI Express (PCIE) X8 Interface
- The RAID controller utilizes the PCIE X8 interface, a high-speed connection standard commonly found in modern computers. This ensures optimal communication between the RAID controller and the motherboard, preventing bottlenecks and maximizing overall system performance.
Serial-Attached SCSI (SAS) Technology
- SAS technology combines the benefits of SCSI (Small Computer System Interface) and serial technology, offering superior performance and scalability. The LSI00194’s compatibility with SAS drives contributes to its ability to handle demanding workloads.
Features and Benefits of SAS Controller
- 8 internal SAS/SATA ports for connecting multiple drives
- PCI-E x8 interface for fast data transfer speeds
- RAID support for data redundancy and protection
- 6GB/s SAS and 3GB/s SATA support for compatibility with a wide range of drives
- Low-profile form factor for easy installation in compact systems
- Supports up to 256 SATA or SAS devices with SAS expanders
- Advanced RAID features such as online capacity expansion and RAID-level migration
- Compatibility with popular operating systems including Windows, Linux, and VMware
- Easy to use web-based management interface for monitoring and configuring the controller
- RoHS-compliant and energy-efficient design for environmental sustainability.
Performance and scalability
- The LSI00194 LSI Logic 9211-8I 6GB 8 Ports Internal PCI-E X8 SAS Raid Controller is a high-performance and scalable controller that is designed for use in servers and workstations. It has a PCI-E x8 interface and supports SAS and SATA hard drives, making it compatible with a wide range of storage devices.
- In terms of performance, the LSI00194 is capable of delivering high data transfer rates and low latency, making it ideal for use in high-performance computing and data-intensive applications. It also supports RAID levels 0, 1, 5, and 6, which allows for data protection and redundancy.
- In terms of scalability, the LSI00194 supports up to 8 internal SAS or SATA ports, which allows for the connection of multiple storage devices. This allows for the expansion of storage capacity as needed, making it ideal for use in growing businesses or organizations.
RAID support and configuration options
The LSI00194 LSI Logic 9211-8I 6GB 8 Ports Internal PCI-E X8 SAS Raid Controller supports a variety of RAID configurations, including:
- RAID 0 (Striping) – Data is split across multiple drives, resulting in increased performance and improved read/write speeds.
- RAID 1 (Mirroring) – Data is duplicated across multiple drives, providing redundancy and data protection in case of a drive failure.
- RAID 5 (Parity) – Data is striped across multiple drives with parity information stored on one drive, providing data protection in case of a single drive failure.
- RAID 6 (Dual-Parity) – Similar to RAID 5, but with two drives dedicated to storing parity information, providing even greater data protection in case of multiple drive failures.
- RAID 10 (Striping and Mirroring) – A combination of RAID 0 and RAID 1, data is striped across multiple drives and mirrored for redundancy and data protection.
- RAID 50 (Parity and Striping) – A combination of RAID 5 and RAID 0, data is striped across multiple drives with parity information stored on one drive, providing improved performance and data protection in case of a single drive failure.
- RAID 60 (Dual-Parity and Striping) – A combination of RAID 6 and RAID 0, data is striped across multiple drives with two drives dedicated to storing parity information, providing improved performance and data protection in case of multiple drive failures.
The controller also supports JBOD (Just a Bunch of Disks) mode, which allows for multiple drives to be used independently without any RAID configuration.
Main Information about this LSI Logic LSI00194
- Brand: LSI Logic
- Part Number or SKU# LSI00194
- Type: Controller
- Sub-Type: SAS Controller
Key Specifications of SAS Controller
- Device Type: SAS Raid Controller
- Controller Interface Type: Serial Attached SCSI
- Bus Type: PCI Express X8
- Data Transfer Rate: 6GB/S Per Port
- Supported Devices: SAS and SATA HDDs, SSDs, and Tape Drives
- Max Storage Devices Qty: Up to 256 Physical Devices
- Raid Levels: Raid 0, Raid 1, Raid 10, Raid 1e
- Ports: 2 x SFF-8087 Mini – Serial Attached SCSI Internal
- Form Factor: Low-Profile Plug-In Card
Finally, the LSI Logic LSI00194 9211-8I RAID controller stands as a formidable solution for those seeking high-performance, reliable storage management. Its impressive data transfer rate, multiple ports, and compatibility with SAS technology make it a versatile choice for a range of applications, from enterprise storage to high-performance computing. Understanding its features, applications, installation process, and troubleshooting aspects empowers users to leverage this powerful RAID controller effectively, ensuring an optimal storage solution for their needs.
