Description

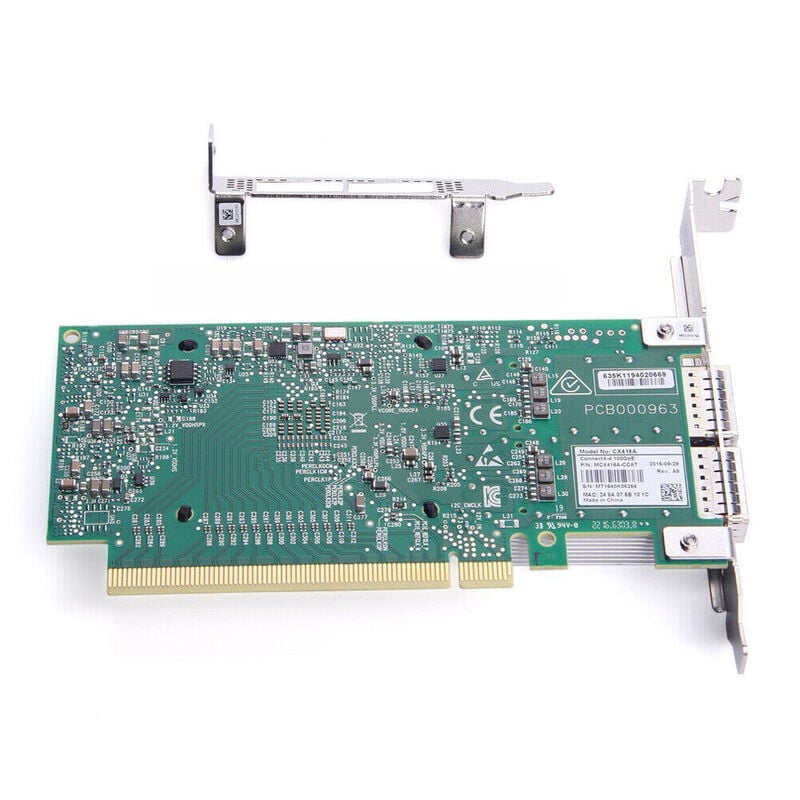

Introduction to Mellanox MCX456A-ECAT Adapter Card
The Mellanox MCX456A-ECAT ConnectX-4 VPI Adapter Card is designed to optimize data connectivity and transfer rates. VPI stands for Virtual Protocol Interconnect, which refers to the card’s ability to support multiple protocols, including EDR InfiniBand (100Gb/s) and 100GbE (Gigabit Ethernet). This versatile adapter card is engineered to meet the demanding requirements of modern data centers, high-performance computing environments, and cloud-based applications.
Exploring Physical Specifications
The Mellanox MCX456A-ECAT Adapter Card boasts a compact and innovative design, making it an ideal choice for various computing environments. It adheres to the Peripheral Component Interconnect Express (PCIe) 3.0 x16 standard, which provides a high-speed connection between the adapter card and the host system. The PCIe 3.0 x16 interface ensures efficient data exchange and communication, resulting in optimized system performance.
High-Speed Data Transfer with EDR InfiniBand and 100GbE
The Mellanox MCX456A-ECAT Adapter Card’s standout feature is its ability to provide high-speed data transfer using both EDR InfiniBand and 100GbE interfaces. EDR InfiniBand, with a data rate of 100Gb/s, delivers rapid data exchange suitable for data-intensive applications and high-performance computing clusters. On the other hand, 100GbE (Gigabit Ethernet) provides a high-speed connection for Ethernet-based networks, catering to a wide range of applications, including cloud computing and data analytics.
Dual-Port Configuration for Enhanced Versatility
The dual-port configuration of the Mellanox MCX456A-ECAT Adapter Card further enhances its versatility and flexibility. Equipped with two QSFP28 ports, the adapter card can simultaneously connect to two separate networks or devices. This dual-port capability enables load balancing, redundancy, and improved network resilience. In scenarios where uninterrupted data connectivity is critical, the dual-port configuration ensures seamless data distribution and optimal system performance.
Small Form-Factor Pluggable (QSFP28) Technology
The Mellanox MCX456A-ECAT Adapter Card leverages Small Form-Factor Pluggable (QSFP28) technology for data transmission. QSFP28 is a compact and high-speed transceiver interface that facilitates data exchange over fiber optic cables. This technology is known for its low latency and high throughput, making it an excellent choice for demanding data-intensive operations. By incorporating QSFP28 technology, the adapter card ensures reliable and efficient data connectivity, minimizing data bottlenecks and optimizing system performance.
PCI Express 3.0 x16 Interface
The Mellanox MCX456A-ECAT Adapter Card utilizes the PCIe 3.0 x16 interface, a high-speed connection standard between the adapter card and the host system. The PCIe 3.0 x16 interface offers increased bandwidth and improved data transfer rates compared to previous PCIe versions. This high-speed interface is well-suited for applications that demand rapid data exchange, such as real-time data analytics, high-performance computing, and content delivery.
Advanced Management and Monitoring Tools
Efficient management and monitoring are essential for maintaining a stable and optimized IT environment. The Mellanox MCX456A-ECAT Adapter Card is equipped with advanced management and diagnostic tools that provide real-time insights into its performance. System administrators can proactively monitor the adapter card’s operations, identify potential issues, and implement necessary adjustments promptly. This proactive approach to management enhances the stability and reliability of the entire data infrastructure.
Applications in Modern IT Environments
The Mellanox MCX456A-ECAT ConnectX-4 VPI Adapter Card finds applications across a wide range of modern IT environments. Its high-speed data transfer capabilities, dual-port configuration, and support for multiple protocols make it well-suited for various scenarios. Some of its applications include:
- High-Performance Computing (HPC): The adapter card’s EDR InfiniBand capabilities are particularly beneficial for HPC environments, where rapid data exchange is crucial for simulations, modeling, and scientific research.
- Data Centers and Cloud Computing: The 100GbE interface supports cloud-based applications and data centers, enabling efficient data storage, processing, and distribution.
- Big Data and Analytics: The high-speed data transfer provided by the adapter card is essential for real-time data analytics, enabling organizations to gain insights from large datasets quickly.
- Content Delivery: The adapter card’s capabilities are well-suited for content delivery networks (CDNs), where rapid data exchange ensures seamless content distribution to users.
Product overview
In Summary, the Mellanox MCX456A-ECAT ConnectX-4 VPI Adapter Card is a powerful solution for optimizing data connectivity and transfer rates in modern IT environments. Its technical specifications, including EDR InfiniBand (100Gb/s) and 100GbE dual-ports QSFP28 PCIe 3.0 x16, make it a versatile choice for a range of applications. With its compact design, high-speed capabilities, dual-port configuration, and advanced management tools, this adapter card offers enhanced data exchange efficiency, network resilience, and overall operational excellence. By incorporating the Mellanox MCX456A-ECAT Adapter Card into their infrastructure, organizations can achieve seamless data connectivity and reliable system performance, making it a valuable asset in the era of high-speed data exchange.
General Information about the Mellanox MCX456A-ECAT
Manufacturer: Mellanox
Part Number or SKU# MCX456A-ECAT
Type: Networking
Sub-Type: Network Adapter
Form Factor : plug-in Card
Interface (bus) Type : pci Express 3.0 X16
Pci Specification Revision : pcie 1.1, Pcie 2.0, Pcie 3.0
Networking
Ports : qsfp+ X 2
Connectivity Technology :wired
Data Link Protocol :infiniband, 100 Gigabit Ethernet
Data Transfer Rate :100 Gbps
Network / Transport Protocol: tcp/ip, Udp/ip, Ipoib
Features
Vlan Support, Virtual Protocol Interconnect (vpi), Quality Of Service (qos), Jumbo Frames Support.
Compliant Standards
Ieee 802.1q, Ieee 802.1p, Ieee 802.3ad (lacp), Ieee 802.3ae, Ieee 802.3ap, Ieee 802.3az, Ieee 802.3ba, Ieee 802.1ax, Ieee 802.1qbb, Ieee 802.1qaz, Ieee 802.1qau, Ibta 1.3, Ieee 802.1qbg, Ieee 1588v2.
