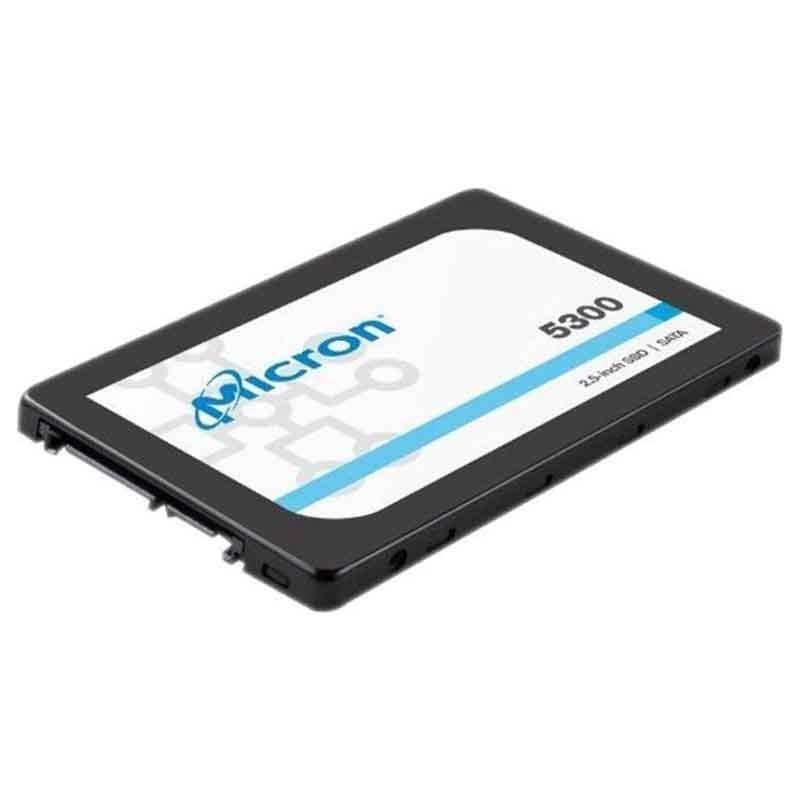

The Micron MTFDDAK7T6TDS-1AW16A is a high-performance enterprise-grade solid-state drive (SSD) with a storage capacity of 7.68TB. It uses the SATA 6 Gbps interface, which is a widely-used interface for connecting storage devices to a computer. Like the previous model you’ve described, it is intended for use in data centers and other enterprise environments where high-performance, high-capacity storage is required.
This specific model is TCG (Trusted Computing Group) encrypted. This means that it has hardware-based encryption capabilities that are built-in to the drive, which helps to ensure the security of the data stored on it. This encryption can prevent unauthorized access to data in case the drive is lost or stolen. The drive likely uses AES-256 encryption algorithm, which is a widely-used and industry-standard algorithm for encrypting data.
Additionally, the drive will have advanced wear leveling, error correction and Power Loss Protection(PLP) to ensure the security and integrity of the data stored on it and prolong the life of the drive. The drive will be able to handle heavy workloads and provide consistent performance even under high-stress conditions.
Compatibility
The Micron 7.68TB SATA 6 Gbps TCG Encrypted SSD is a high-security solid-state drive (SSD) that uses TCG (Trusted Computing Group) encryption to protect data stored on the drive. The drive is compatible with any computer system that has a standard SATA interface, supports 6 Gbps transfer rate, and has the ability to run TCG-compliant firmware or software.
SATA (Serial ATA) is a standard interface for connecting storage devices to a motherboard, which is found in most desktop and laptop computers. The 6 Gbps transfer rate is the latest version of the SATA interface and provides faster data transfer speeds than previous versions.
The TCG encryption is a standard that provides hardware-based encryption, meaning the encryption keys are stored on the drive’s controller, rather than in software. This provides a higher level of security as it makes it more difficult for unauthorized access to the data stored on the drive.
To use the drive, the host system must have a Trusted Platform Module (TPM) or a similar TCG-compliant encryption chip, and the operating system must support TCG-compliant software or firmware. Additionally, the host system must also support the Opal security feature set, which is a set of security specifications developed by the TCG that enable the use of the TCG encryption on SSDs.
High Performance
The performance of a 7.68 terabyte (TB) Micron solid-state drive (SSD) can depend on the specific model of the drive. In general, Micron’s enterprise and data-center SSDs offer higher performance than consumer-grade SSDs. However, the performance also depends on the type of NAND flash memory used in the drive, the interface it uses to connect to the host system, and the specific use-case.
It is important to consult the manufacturer’s datasheet for information on the specific read and write speeds, IOPS (input/output operations per second), and other performance metrics of a particular Micron SSD model. The datasheet will typically provide more detailed information on the drive’s performance specifications and how they compare to other models in Micron’s product line. Also, it’s important to note that the drive performance can be affected by factors such as the host system’s storage controller, the system’s workload, and even the temperature of the drive, so it’s recommend to test and validate the performance in the specific scenario where the drive will be used.
General Information for this Micron MTFDDAK7T6TDS-1AW16A
- Manufacturer: Micron
- Part Number or SKU# MTFDDAK7T6TDS-1AW16A
- Product Type: Solid State Drive (SSD)
- Interfaces: SATA 6GBPS
- Product Series: 5300
Technical Information of 7.68TB/7680GB Solid State Drive
- SSD Class: Server/Enterprise
- SSD Capacity: 7.68TB/7680GB
- SSD Form Factor: 2.5 Inch
- SSD Host Interface: SATA 3.0 (6 GB/s)
- Model/Series/Type: 5300P (PRO)
Performance (Steady State) about Server/Enterprise SSD
- Sequential 128KB Read: Up to 540 MB/S
- Sequential 128KB Write: Up To 520 MB/S
- Random 4KB Read: Up To 95,000 IOPS
- Random 4KB Write: Up To 75,000 IOPS
Features of SATA 6GBPS Solid State Drive
- Micron® 3D TLC NAND Flash
- Three Performance/Endurance Levels
- BOOT
- PRO
- MAX
- TCG Enterprise and TCG Opal Compliant Self-Encrypting Drive (SED) Options
- PIO Mode 3, 4
- Multiword DMA Mode 0, 1, 2
- Ultra DMA Mode 0, 1, 2, 3, 4, 5, 6
- 512-Byte Sector Size Support
- Hot-Plug Capable (2.5-Inch Only)
- Native Command Queuing Support With 32-Command Slot Support
- ATA-8 ACS-4 Command Set Compliant
- ATA Security Feature Command Set and Password Login Support
- Security Erase Command Set: Fast and Secure Erase
Endurance
- Total Bytes Written (TBW)
- BOOT: Up to 613TB
- PRO: Up to 9110TB
- MAX: Up to 24,528TB
Reliability
- MTTF: 3.0 Million Device Hours2
- Static and Dynamic Wear Leveling
- Uncorrectable Bit Error Rate (UBER): <1 Sector Per 1017 Bits Read
- End-To-End Data Protection
- Enhanced Power-Loss Data Protection with Data Protection Capacitor Monitoring
- Self-Monitoring, Analysis, And Reporting Technology
- (SMART) Command Set
Mechanical
- 2.5-Inch X 7.0mm Form Factor
- M.2 Type 2280 Form Factor
- ROHS-Compliant Package
- Secure Field-Upgradeable Firmware With Digitally
- Signed Firmware Image
- Power Consumption: 240GB/480GB: <3.0W (TYP);
- 960GB: <3.4W (TYP); 1920GB: <3.8W (TYP);
- 3840GB/7680GB: <3.9W (TYP)
Operating Temperature
- Commercial (0°C to 70°C) 4
Compliance
- Micron SSDS Comply With The Following
- Micron Green Standard
- Built With Sulfur Resistant Resistors
- CE (Europe): EN 55032 Class B, Rohs
- FCC: CFR Title 47, Part 15 Class B
- UL/Cul: Approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN
- 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013
- BSMI (Taiwan): Approval To CNS 13438 Class B And CNS 15663
- RCM (Australia, New Zealand): AS/NZS CISPR32 Class B
- KC RRA (Korea): Approval To KN32 Class B, KN 35 Class B
- IC (Canada): ICES-003 Class B
- This Class B Digital Apparatus Complies With Canadian ICES-003.
- Cet Appareil Numérique De La Classe B Est Conforme À La Norme NMB-003 Du Canada.
- Morocco: approval to EN55032/EN55024 Class B
- UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017
- No. 139)
Dimensions & Weight
- Height: 0.63 inch
- Width: 3.10 inch
- Depth: 5.45 inch
- Weight: 1.50 LBS
